Manufacturer	ABB
Model Number	1TGE120025R0101
Product Type	Human Machine Interface
Display Type	TFT LCD touchscreen
Resolution	1024 × 768 pixels
Display Size	Approx. 10.4 inch
Brightness	~350 cd/m²
Response Time	< 30 ms
Memory	128 MB Flash (typical)
Power Supply	24 V DC
Operating Temperature	0°C to +50°C
Storage Temperature	−20°C to +70°C
Humidity	5–85% non-condensing

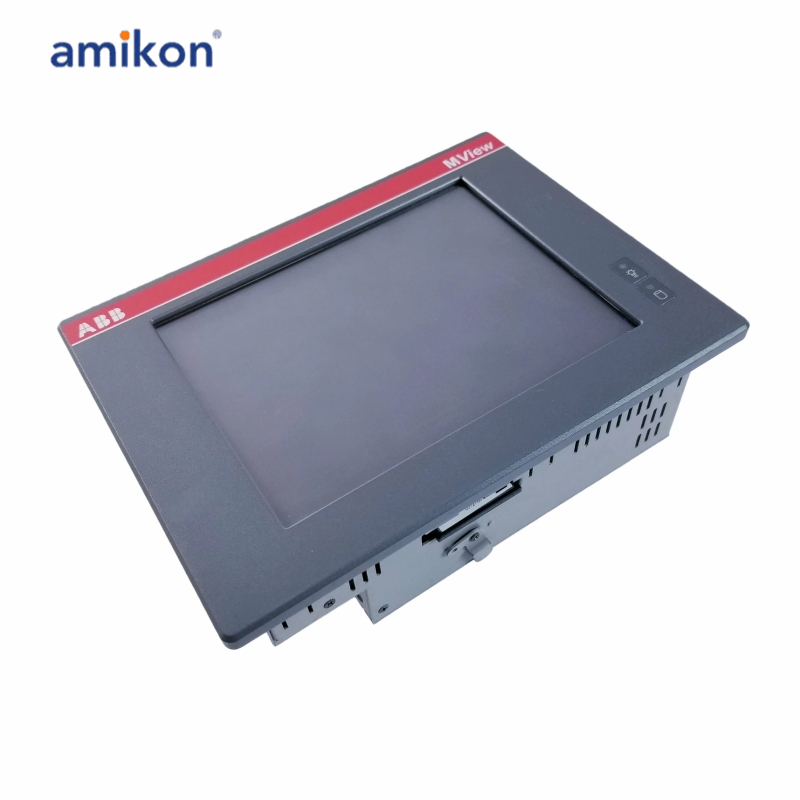

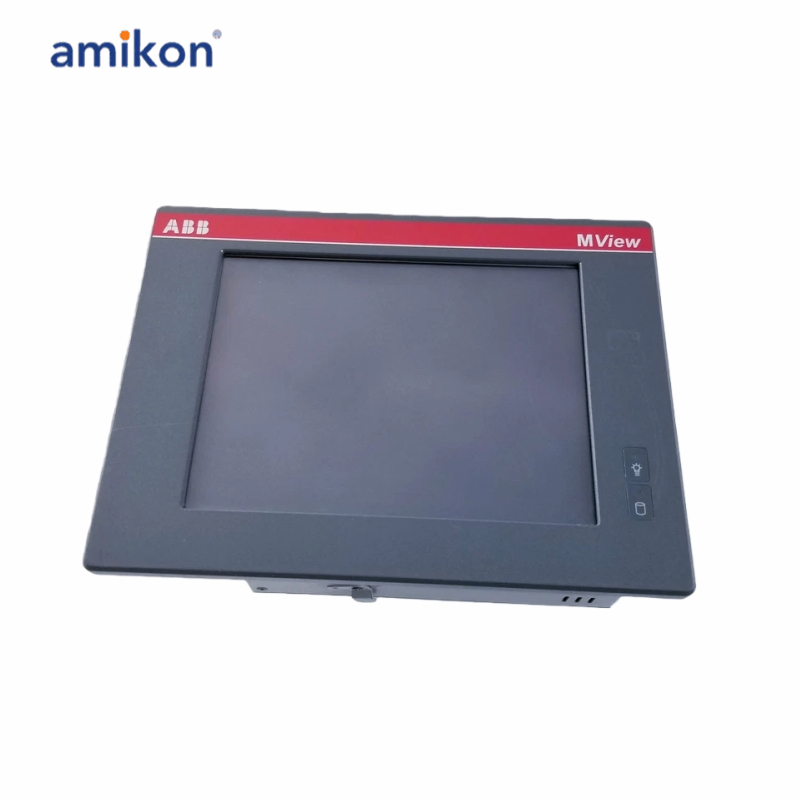

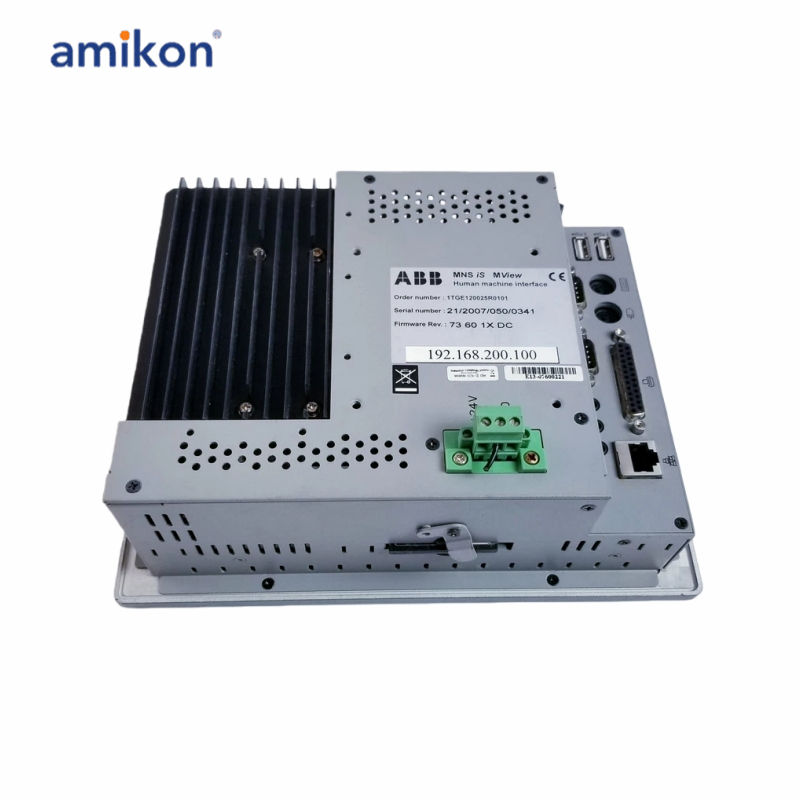

The ABB 1TGE120025R0101 Human Machine Interface (HMI) is an advanced industrial operator panel from ABB’s MView display series, designed to provide intuitive visualization and control of systems. It enables operators to monitor real-time process data, manage alarms, and interact efficiently with PLCs, DCS, and other field devices.

Frequently asked questions：

Q1: What is the 1TGE120025R0101?
A1: The 1TGE120025R0101 is a Human Machine Interface (HMI) designed for industrial control systems, enabling operators to monitor and control processes through an intuitive touchscreen display.
Q2: What type of display does this HMI use?
A2: It features a TFT LCD touchscreen, providing clear visualization and responsive user interaction.
Q3: What is the 1TGE120025R0101 screen resolution?
A3: The 1TGE120025R0101 display resolution is 1024 × 768 pixels, delivering detailed and sharp graphics.
Q4: What is the 1TGE120025R0101 brightness level?
A4: The screen offers a brightness of approximately 350 cd/m², suitable for most industrial environments.
Q5: How fast is the 1TGE120025R0101 response time?
A5: The touchscreen response time is less than 30 ms, ensuring smooth and efficient operation.

Product Applications

Oil & Gas: Intelligent power distribution and motor control centers (MCC) for offshore platforms, refineries and chemical plants, supporting real-time monitoring of critical power parameters.
Power Generation: Monitoring the auxiliary power distribution system in power plants to ensure safe isolation and automated management of the power grid and internal electricity usage.
Mining & Metals: Suitable for mining plants with high dust levels and harsh environments, providing a robust control interface to manage the power distribution of large conveyors and crushers.
Marine: Managing the power of propulsion systems and auxiliary equipment in ship power distribution systems, featuring compact and vibration-resistant characteristics.

Product main functions
Real-time monitoring: Displays the current, voltage, power and circuit breaker status of each circuit in the switch cabinet.
Fault diagnosis: Can directly view alarm records and fault codes on the panel, reducing downtime.
System configuration: Allows operators to directly adjust protection settings or control without connecting to an upper computer.
