Product Specifications

Part Number	3BHE014557R0003 UN1000B-Z,V3
Auxiliary Power Supply	18 to 30 VDC
Maximum Output Current	10 ADC continuous
Output Voltage Range	0 to 250 VDC
Excitation Current Resolution	12-bit
Frequency Range	10 to 75 Hz
Rated Capacity	1 KVA
Generator Voltage Measurement	Up to 500 VAC
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Protection Class	IP20
Analog Inputs	2x (±10 V or 0/4-20 mA)
Analog Outputs	2x (0/4-20 mA)

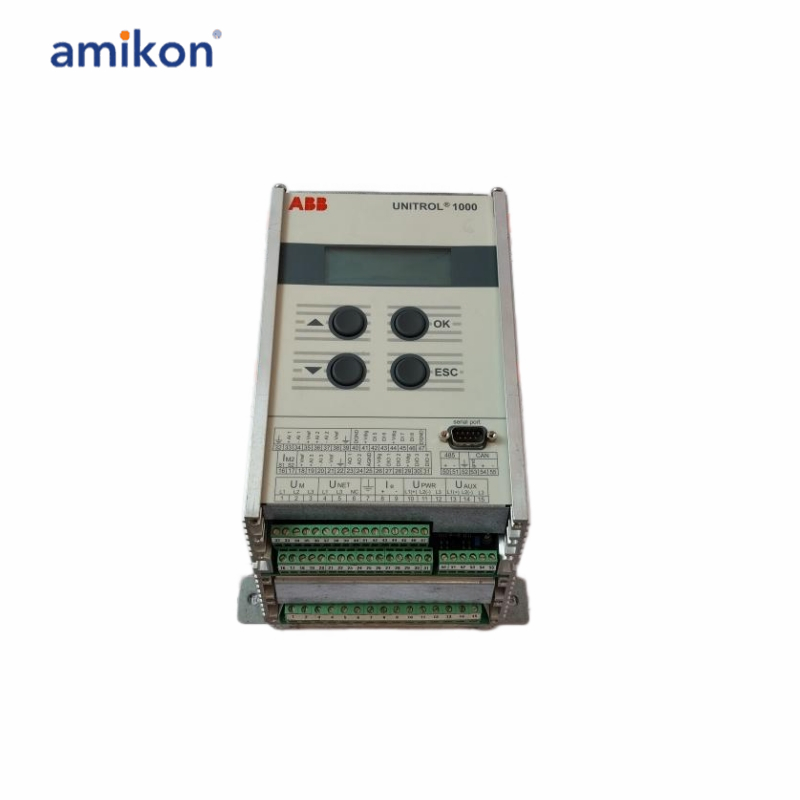

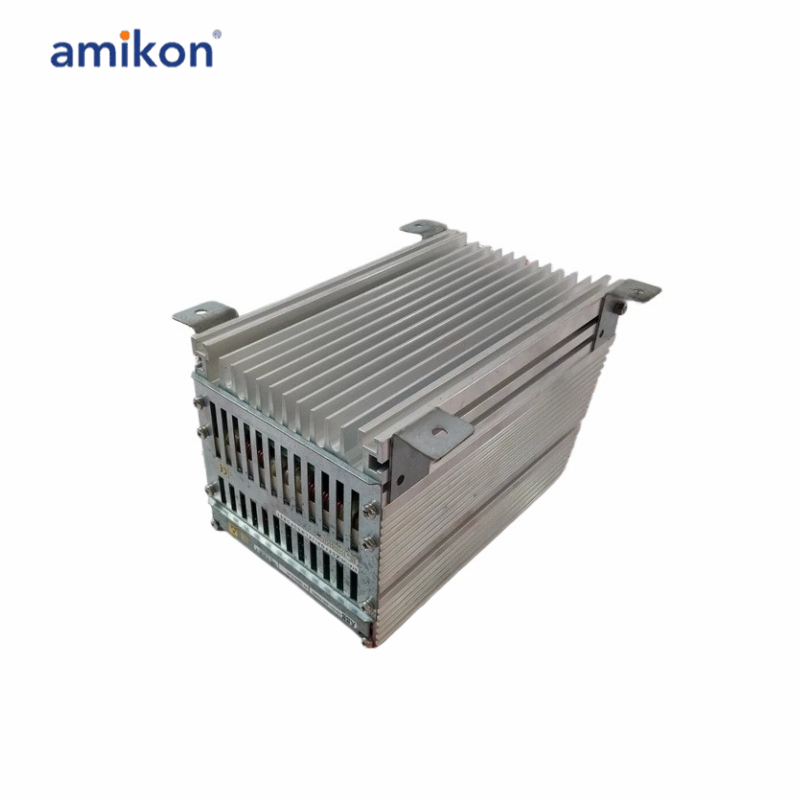

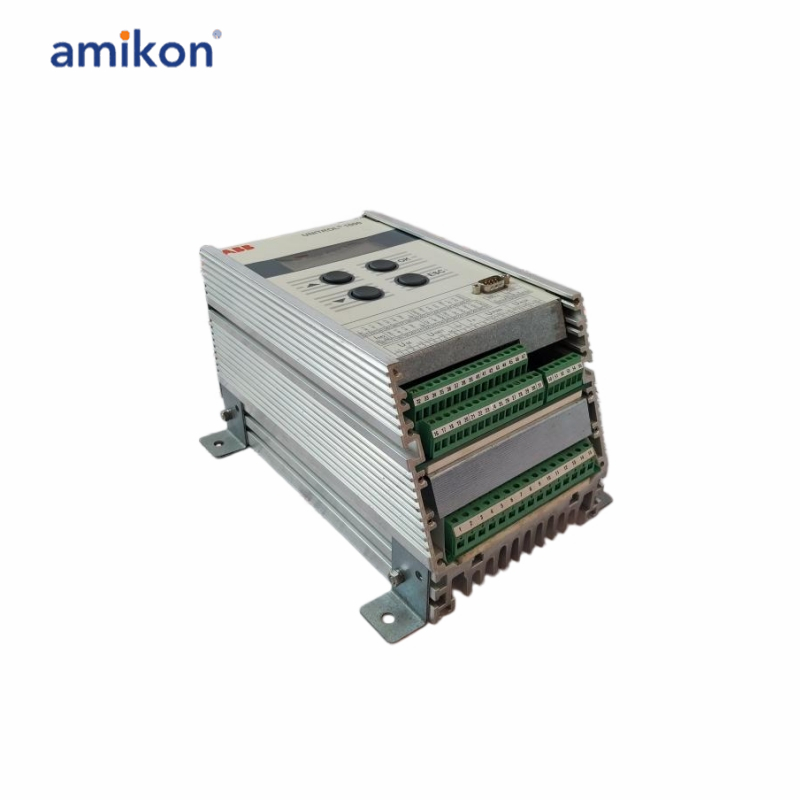

The ABB 3BHE014557R0003 UN1000B-Z,V3 Voltage Regulator is a high-performance excitation and voltage control module designed for generator and power system applications. It operates with an auxiliary power supply ranging from 18 to 30 VDC and delivers a maximum continuous output current of 10 ADC. The regulator provides a wide output voltage range of 0 to 250 VDC, enabling precise control of generator excitation systems. With a 12-bit excitation current resolution, it ensures accurate and stable voltage regulation under varying operating conditions. The module supports frequencies from 10 to 75 Hz and offers a rated capacity of 1 KVA, making it suitable for a wide range of industrial power generation environments. It can measure generator voltages up to 500 VAC and is engineered to perform reliably in demanding conditions, with an operating temperature range of -20°C to +60°C and a storage temperature range of -40°C to +85°C. These features make the UN1000B-Z,V3 an effective solution for maintaining generator stability, efficiency, and power quality.

Frequently asked questions：

Q1: What is the ABB 3BHE014557R0003 UN1000B-Z, V3 Voltage Regulator used for?
A1: The UN1000B-Z, V3 Voltage Regulator is used to control and stabilize excitation voltage in industrial power systems and generators, ensuring reliable voltage regulation and system performance.

Q2: What is the 3BHE014557R0003 UN1000B-Z, V3 output voltage range of the regulator?
A2: The 3BHE014557R0003 UN1000B-Z, V3 regulator provides an output voltage range of 0 to 250 VDC, allowing precise control of excitation voltage.

Q3: What is the 3BHE014557R0003 UN1000B-Z, V3 excitation current resolution?
A3: The 3BHE014557R0003 UN1000B-Z, V3 excitation current control features a 12-bit resolution, enabling accurate and stable regulation of excitation current.

Q4: What frequency range does the 3BHE014557R0003 UN1000B-Z, V3 voltage regulator support?
A4: The 3BHE014557R0003 UN1000B-Z, V3 supported operating frequency range is 10 Hz to 75 Hz, making it suitable for various industrial and generator applications.

Q5: What is the rated capacity of the UN1000B-Z, V3?
A5: The UN1000B-Z, V3 voltage regulator has a rated capacity of 1 KVA, providing reliable power handling for excitation control circuits.

Product Applications

Power Plants
Marine & Harbor Systems
Oil & Gas
Traction & Mining
