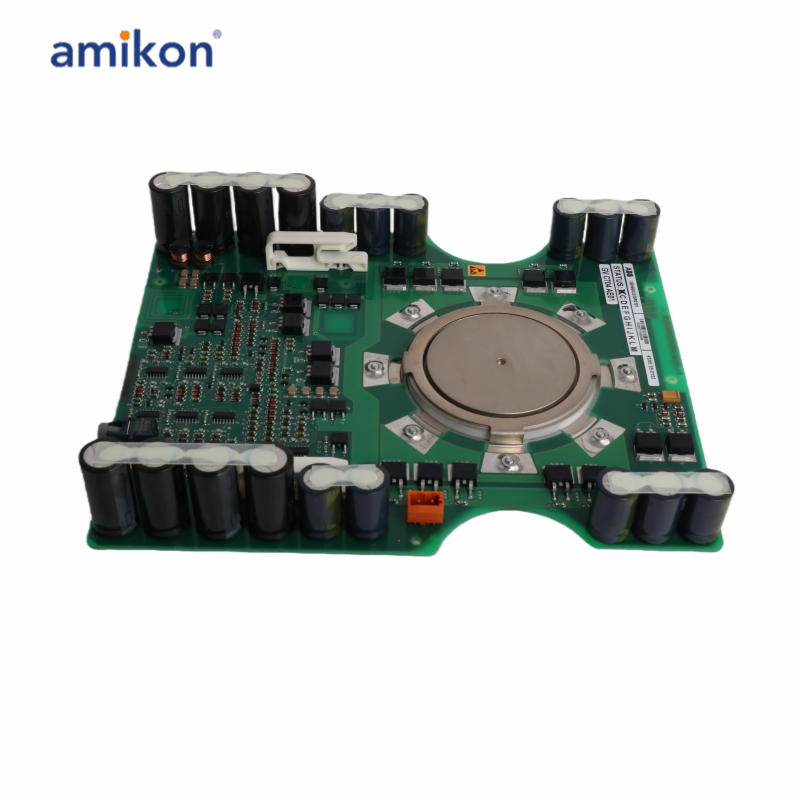

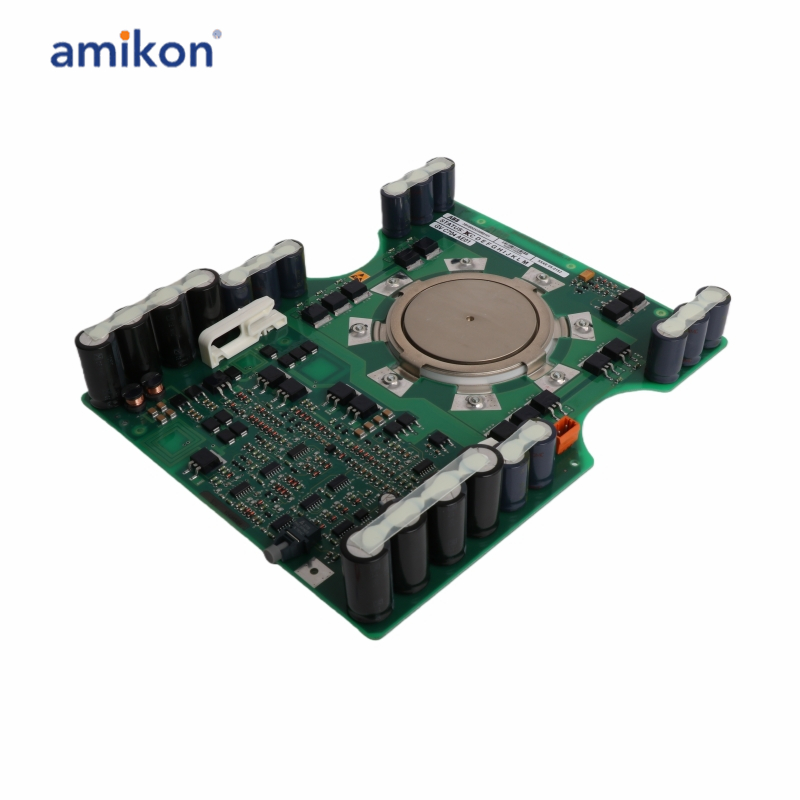

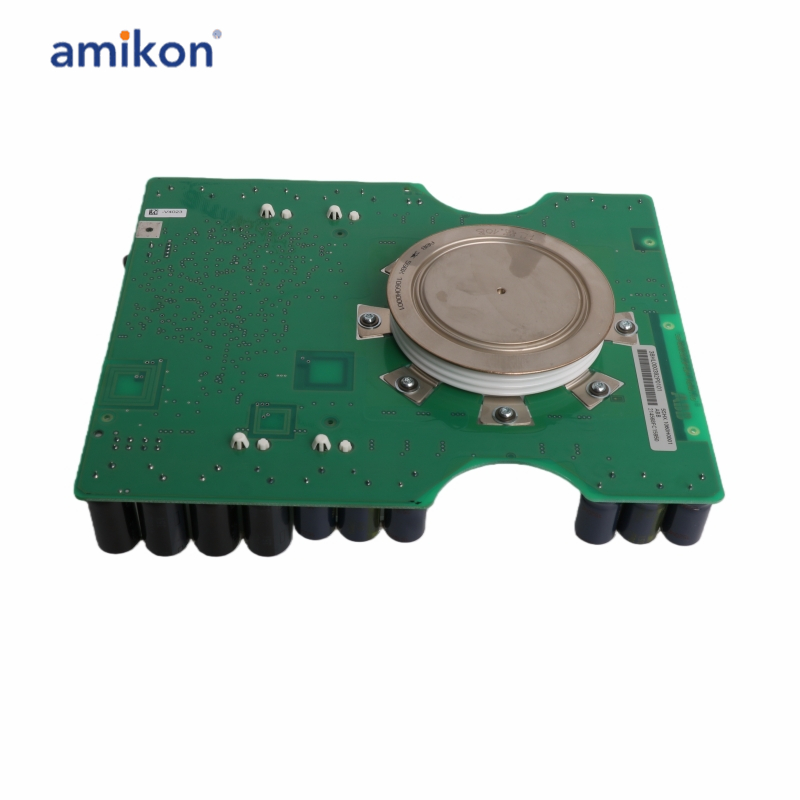

ABB 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152 IGCT Module

3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152
3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152
3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152

ABB 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152 IGCT Module

Brand new and original sealed//Same Day Shipment

  • Brand/Manufaturer:

    ABB
  • Country of Origin:

    SWEDEN
  • Weight:

    1.9kg
  • Dimensions:

    28.3x21.8x9.5cm
  • Warranty Period:

    One Year Warranty
  • Payment Term:

    100% Advance Payment T/T Bank Wire Transfer

Manufacturer

ABB

Model Numbers

3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152

Product Type

IGCT Module

Current Rating

1400 A – 3000 A (depending on configuration)

Switching Speed

< 1 µs (typical fast switching)

Switching Frequency

Up to 2 kHz (typical)

Gate Drive Voltage

Approx. 20–25 V

On-State Voltage Drop

Approx. 1.8 V

Thermal Resistance (RthJC)

≤ 0.03 K/W

Operating Temperature

−40°C to +125°C

Isolation Voltage

≥ 6 kV


The ABB 3BHL000391P0101 / 5SHX1445H0001 / 3BHB003230R0101 / 5SXE05-0152 IGCT Module is a high-power semiconductor assembly based on Integrated Gate-Commutated Thyristor (IGCT) technology, designed for demanding medium- and high-voltage power conversion applications.
This module integrates multiple components into a complete power switching solution: the press-pack IGCT device (5SHX1445H0001), the valve or control unit (3BHL000391P0101), the mechanical assembly (3BHB003230R0101), and the optical firing and monitoring unit (5SXE05-0152). Together, they provide precise gate control, real-time monitoring, and reliable high-current switching performance.


Frequently asked questions:

Q1: What is this IGCT module?
A1: The 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152 is an IGCT Module used in high-power industrial applications for fast and efficient switching.
Q2: What is the current rating of the module?
A2: The 3BHB003230R0101 5SXE05-0152 module supports a current range of 1400 A to 3000 A, depending on the specific configuration and application.
Q3: How fast is the switching performance?
A3: It offers very fast switching speeds of less than 1 µs, making it suitable for high-performance power electronics.
Q4: What is the typical switching frequency?
A4: The 3BHB003230R0101 5SXE05-0152 module can operate at switching frequencies up to 2 kHz, depending on system design and cooling conditions.
Q5: What gate drive voltage is required?
A5: The gate drive voltage is approximately 20–25 V, ensuring reliable turn-on and turn-off control.


Product Applications

Power and Energy Management: Used in power conversion control in grid stabilization devices, static var compensators (SVCs), and high-voltage direct current (HVDC) transmission systems.

Metallurgy and Metal Processing: Applied to frequency conversion control systems in large rolling mills and electric arc furnaces, ensuring precise current regulation under high loads.

Oil and Gas: Provides stable power control in large pump and compressor drive systems on offshore drilling platforms or in refineries.

Mining: Used in heavy machinery requiring high-power speed control, such as hoists, conveyors, and crushers.

Marine Propulsion Systems: Integrated into electric propulsion systems of large ships, optimizing energy efficiency and improving maneuverability.

Rail Transportation: Used in high-power power electronic converters in traction substations or locomotives.
