Product Specifications

Model Number	5SDD0120C0200
Repetitive Peak Reverse Voltage (VrrM)	200 V
Maximum Average On-State Current (IpAvm)	11,000 A (11 kA)
Maximum Surge Current (IrsM)	85,000 A (85 kA)
Threshold Voltage (Vm)	0.750 V
Slope Resistance (rr)	0.020 mΩ
Mounting Force	35 ~ 40 kN

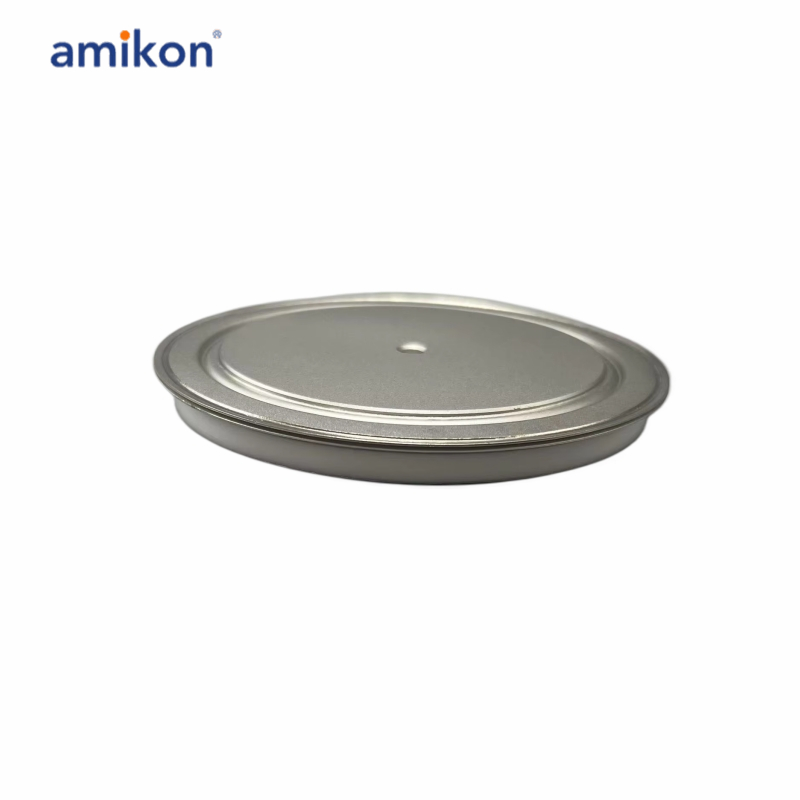

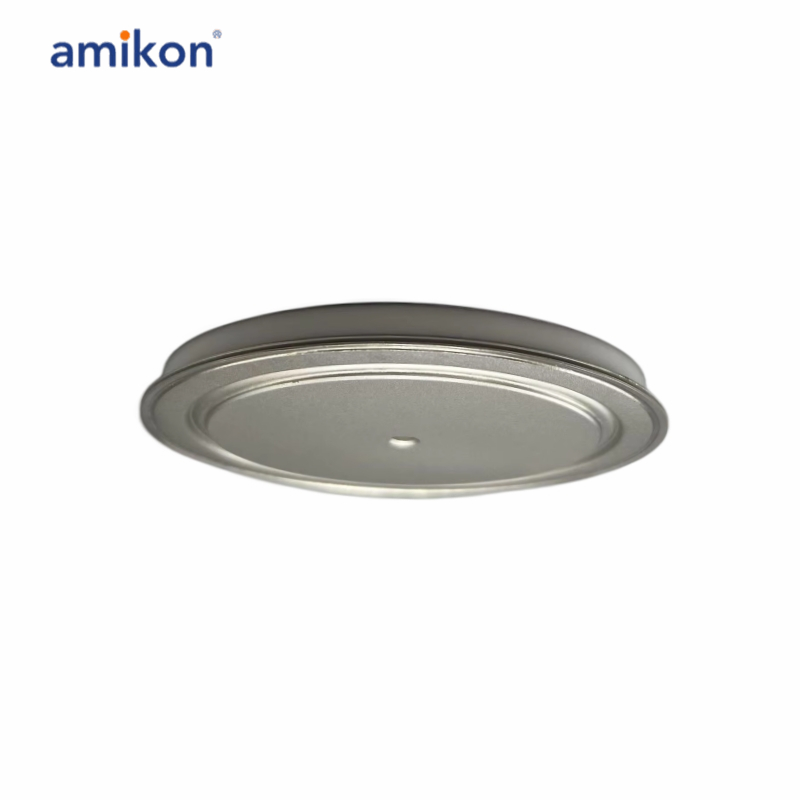

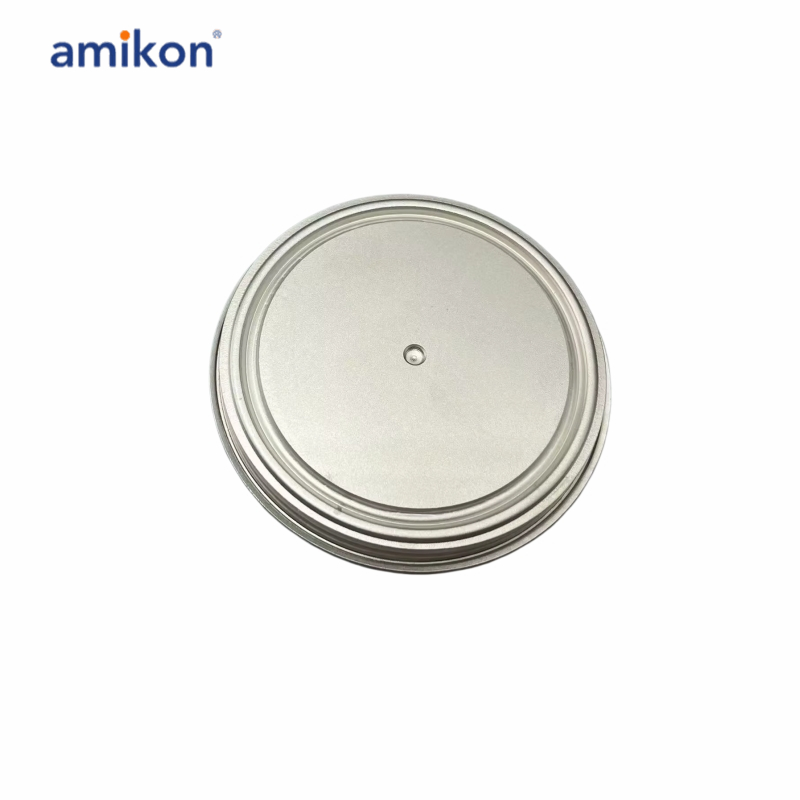

The 5SDD0120C0200 is a premier, high-power welding rectifier diode manufactured by ABB, featuring a rugged hockey puk (press-pack) ceramic housing designed specifically to withstand the harsh environments of heavy industrial manufacturing. It is highly optimized for medium-frequency operations up to 2000 Hz, featuring an exceptionally low threshold voltage of 0.75V and a minimal slope resistance of 0.020 mΩ. This ultra-low internal resistance guarantees minimal power dissipation and reduced heat generation, which is efficiently managed by its double-sided cooling surface. To function safely, it requires a precise mounting torque clamping force of 35 to 45 kN.

Frequently asked questions：

Q : What type of component is the 5SDD0120C0200?
A: It is a high-power, medium-frequency welding rectifier diode.

Q : What is the peak reverse voltage (VRRM) rating?
A: Its maximum repetitive peak reverse voltage is 20o v.

Q : What is the required mounting force for the 5SDD0120C0200?
A: The recommended mounting force is between 35 to 40 kN (kilo-Newtons).

Q : What is its threshold voltage (Vto)?
A: The internal threshold voltage is 0.750 v.

Product Applications

Automobile manufacturing and parts factories
Heavy machinery and metal products welding factories
Non-ferrous metal smelting and electrolysis factories
Electronic component manufacturing factories
