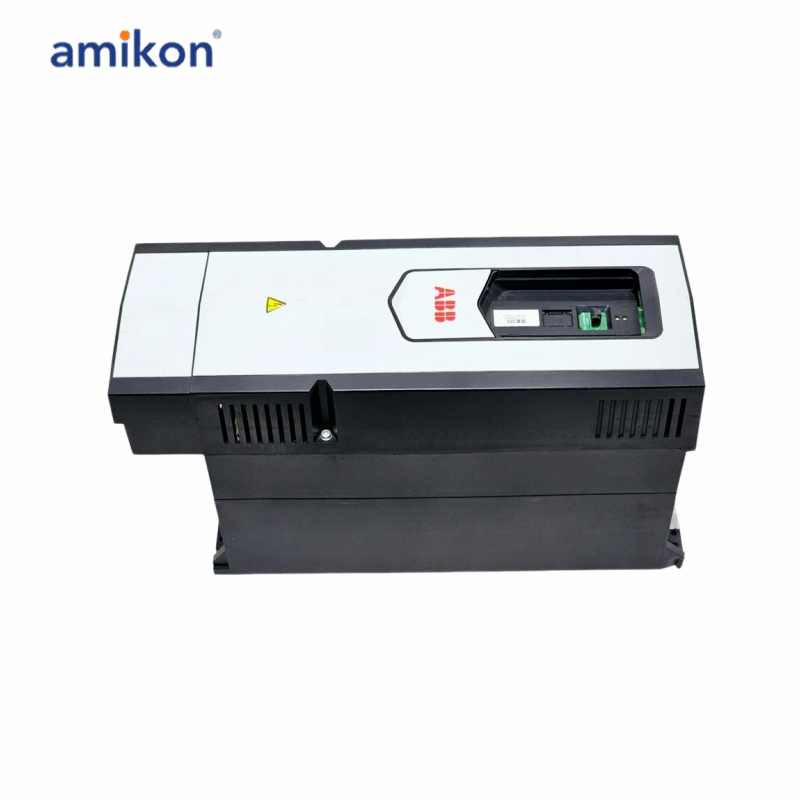

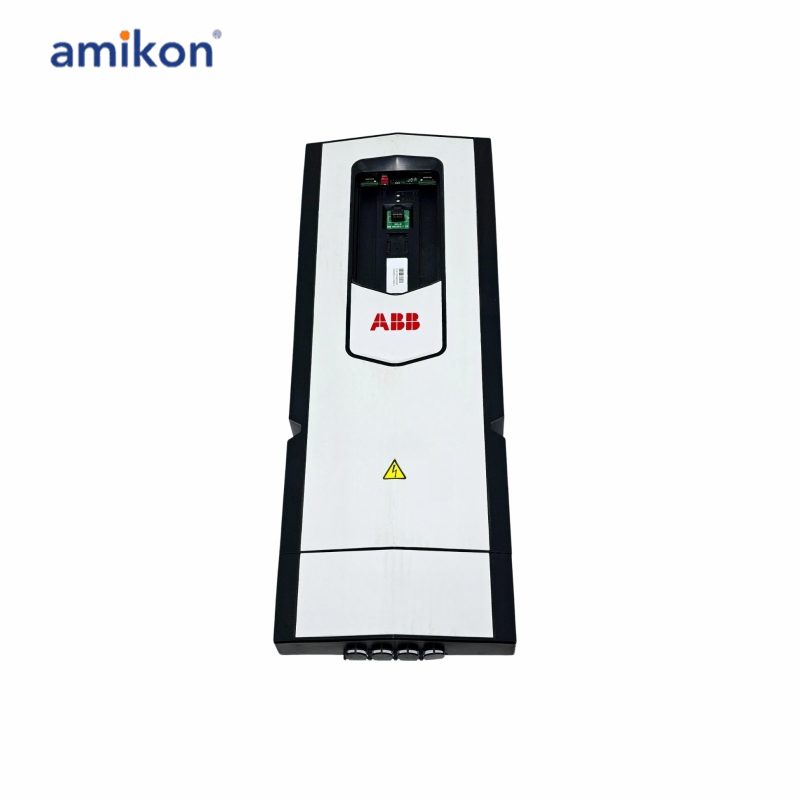

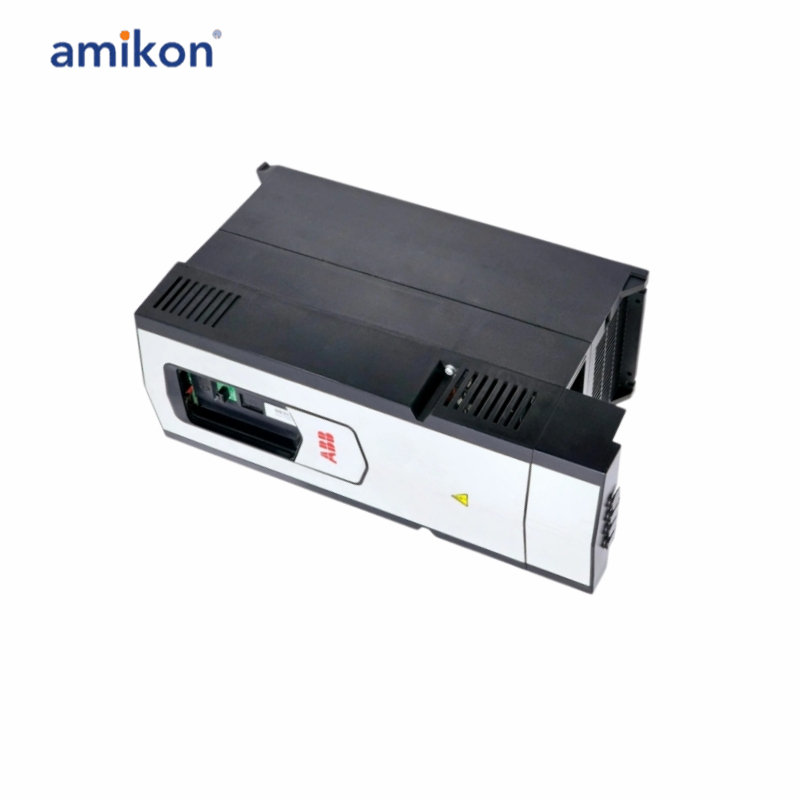

ABB ACS880-01-032A-3 Drive Module

Number of Phases: 3-phase
Degree of Protection: IP21
Enclosure Type (NEMA): Type 1
Frame Size: R3
Input Voltage (Uin): 380–415 V
Frequency (f): 47.5–63 Hz
Altitude: Up to 4000 m
Operating Humidity (RHamb): 5–95%
Temperature Rating: Maximum 40 °C
Sound Level: 60 dB(A)
Analog Inputs: 2
Analog Outputs: 2
Number of Digital Inputs/Outputs: 6 / 2
Output Current (Normal Use – In): 32 A
Output Current (Light-Overload Use – ILD): 30 A
Output Current (Heavy-Duty Use – IHD): 25 A
Output Power (Normal Use – Pn): 15 kW
Output Power (Light-Overload Use – PLD): 15 kW
Output Power (Heavy-Duty Use – PHD): 11 kW
Apparent Power Output: 22 kV·A
Power Consumption (@Pcons): 400 W
Standby Loss: 24 W
Efficiency Level: IE2

The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.

Frequently asked questions：

Q1: What is the ABB ACS880-01-032A-3?
A: The ABB ACS880-01-032A-3 is a high-performance drive module designed for controlling AC motors in industrial and process applications.
Q2: What is the input voltage range?
A: The drive operates with an input voltage of 380–415 V.
Q3: What is the ACS880-01-032A-3 input frequency range?
A: The frequency range is 47.5–63 Hz, allowing stable operation in various power conditions.
Q4: What are the ACS880-01-032A-3 environmental operating limits?
A: The ACS880-01-032A-3 module can operate at altitudes up to 4000 m, with humidity from 5–95% RH, and a maximum temperature of 40 °C.
Q5: What is the ACS880-01-032A-3 sound level of the ABB ACS880-01-032A-3?
A: The drive produces a sound level of 60 dB(A) during operation.
