Model Number
|
PFRL101B-1.0KN
|
|
ABB Part Number
|
3BSE023315R0005
|
|
Product Type
|
Magnetic pressure head
|
|
Rated (Nominal) Load Capacity
|
1.0 kN (225 lbs)
|
|
Extended Load Capacity
|
1.5 kN
|
|
Overload Capacity (Measurement Direction)
|
5.0 kN
|
|
Transverse Overload Capacity
|
3.0 kN
|
|
Axial Overload Capacity
|
5.0 kN
|
|
Spring Constant
|
100 kN/mm
|
|
Deflection at Rated Load
|
0.01 mm
|

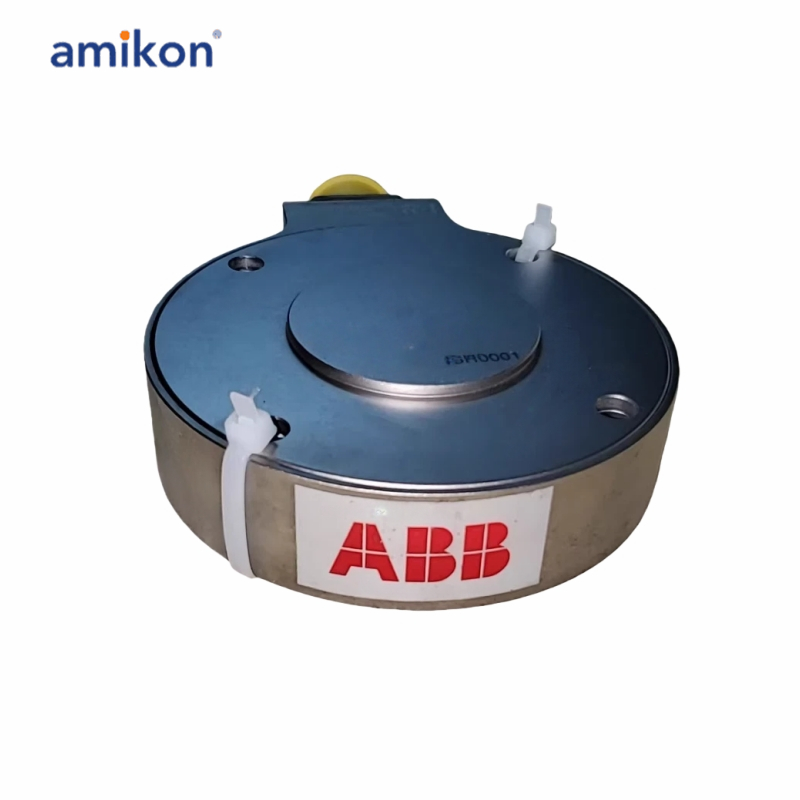

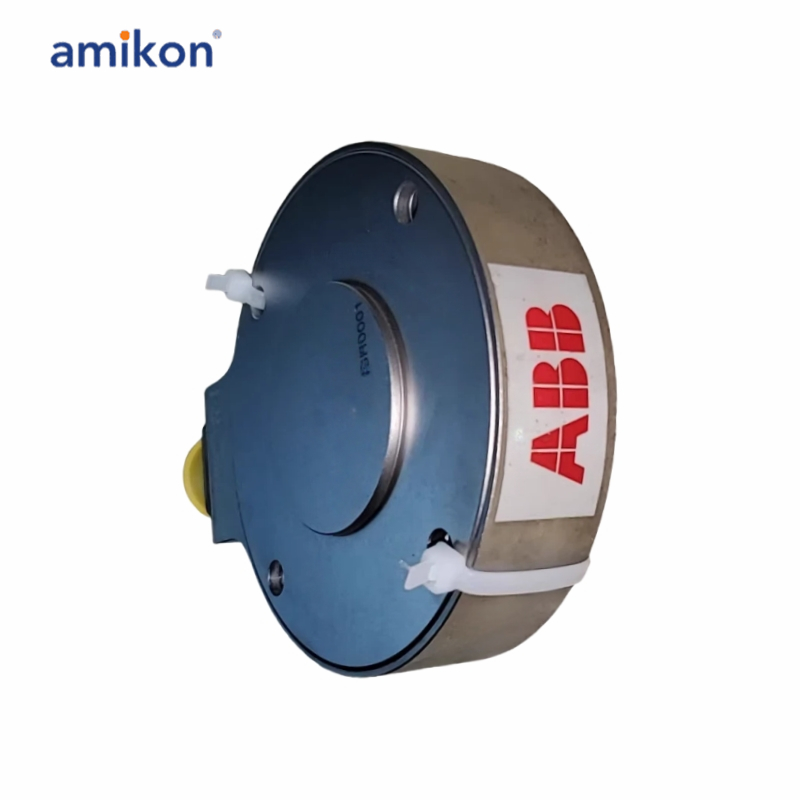

The ABB PFRL101B‑1.0KN (3BSE023315R0005) is a magnetic radial load cell designed for accurate force and tension measurement in industrial applications. It belongs to ABB’s Pressductor® load cell family, which uses magnetoelastic sensing technology to convert mechanical force into stable electrical signals. This PFRL101B-1.0KN 3BSE023315R0005 model is optimized for a nominal load capacity of 1.0 kN, offering high reliability and excellent overload tolerance. Typical applications include web tension measurement on converting, printing, plastic film, and textile machinery, where precise control of material tension is critical for product quality and process stability.
Frequently asked questions：
Q1: What is the PFRL101B-1.0KN 3BSE023315R0005?
A1: The PFRL101B-1.0KN 3BSE023315R0005 is a magnetic circular pressure head used in industrial measurement systems to detect and monitor applied force or load with high precision.
Q2: What is the extended load capacity of this pressure head?
A2: The device supports an extended load capacity of 1.5 kN, allowing it to operate reliably in demanding load measurement applications.
Q3: What is the PFRL101B-1.0KN 3BSE023315R0005 spring constant of the device?
A3: The spring constant is 100 kN/mm, providing high stiffness and precise load response.
Q4: What is the primary function of this magnetic pressure head?
A4: It is designed to measure mechanical force or pressure in industrial processes, ensuring accurate load monitoring and system protection.
Q5: Where is the PFRL101B-1.0KN commonly used?
A5: It is typically used in industrial weighing systems, tension control systems, and process equipment where accurate force measurement is required.
Product Applications
Paper Mills & Tissue Converting: Used in paper machines, calenders, winders, and tissue unwinding/embossing stations to manage high-speed production.
Printing Houses: Essential for maintaining tension during the printing process to ensure accurate alignment and prevent ink smearing.
Plastic Film & Laminating: Used in factories producing plastic films, coatings, and laminates where precise tension is critical for material integrity.
Textile Manufacturing: Applied in machines that process continuous fabric webs.
Metal Processing: Employed in cold rolling mills, annealing, and galvanizing lines for light strip tension measurement.
Key Performance Features
Radial Measurement: Designed for shaft-mounted installation, measuring force in a radial direction.
Ruggedness: Built from stainless steel, these units are virtually maintenance-free and resistant to dust, corrosion, and electromagnetic interference.
Overload Protection: Capable of withstanding overloads up to 500% (or even 10 times) of their nominal capacity (1.0 kN) without damage or calibration loss.
Wide Tension Range: Provides reliable measurement over a 30:1 operating range, making it adaptable to various machine speeds.
