Brand Name: ABB
Model Number:RDCU-12C
Power Supply: 24 VDC
Power Consumption: approx. 150 mA
Reference Voltage Output: ±10 VDC (max. 10 mA)
Auxiliary Power Output: +24 VDC ±10%, max. 250 mA
Product Net Weight: 0.6 kg
Product Net Depth/ Length: 20 mm
Product Net Height: 100 mm
Product Net Width: 200 mm

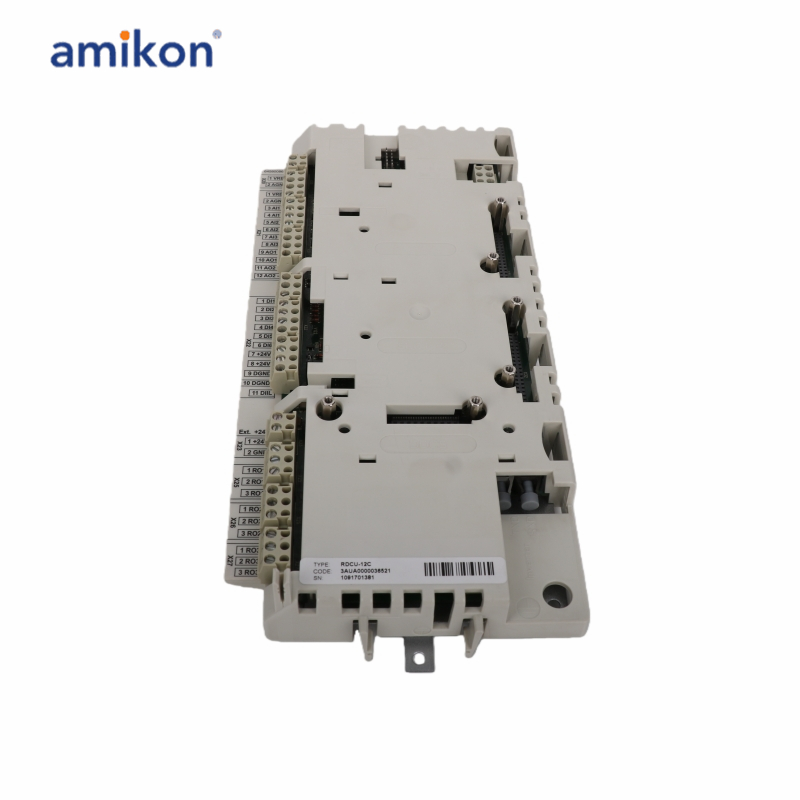

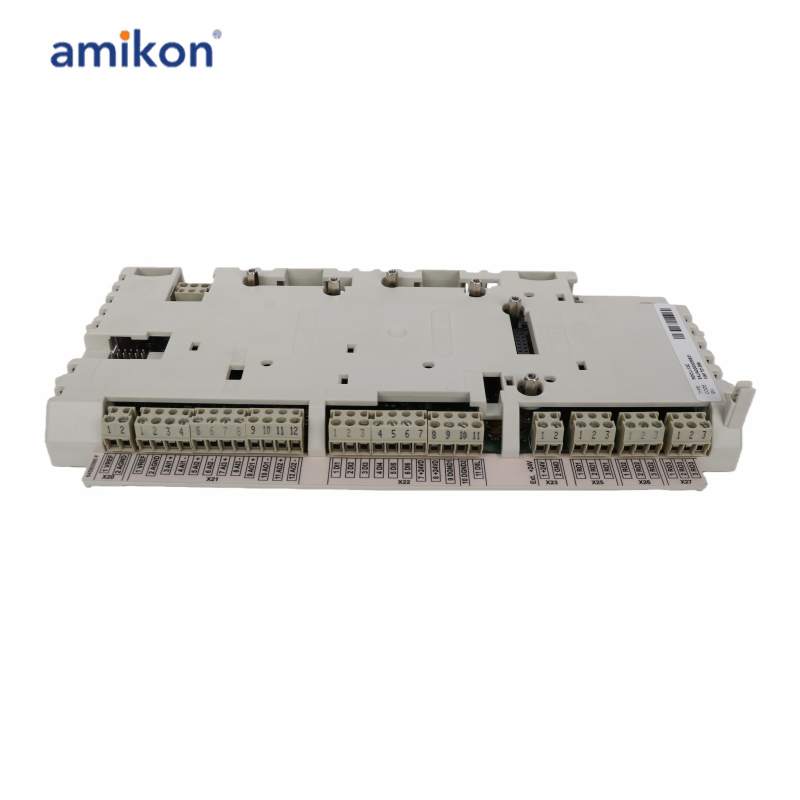

The ABB RDCU-12C is a Drive Control Unit designed for use with the ABB ACS800 motor driveseries. It is essential for controlling and regulating drive operations, providing theinterface between the motor drive and the control system. This unit is critical in variousindustrial applications where precise motor control is required.

Frequently asked questions：

Q: What is the power supply requirement for the ABB RDCU-12C?
A: The RDCU-12C operates with a 24 VDC power supply.
Q: How much power does the RDCU-12C consume?
A: The unit has a power consumption of approximately 150 mA.
Q: Does the RDCU-12C provide reference voltage output?
A: Yes, it provides a ±10 VDC reference voltage output with a maximum current of 10 mA.
Q: Is there an auxiliary power output available on this control unit?
A: Yes, it provides an auxiliary output of +24 VDC ±10%, with a maximum current of 250 mA.
