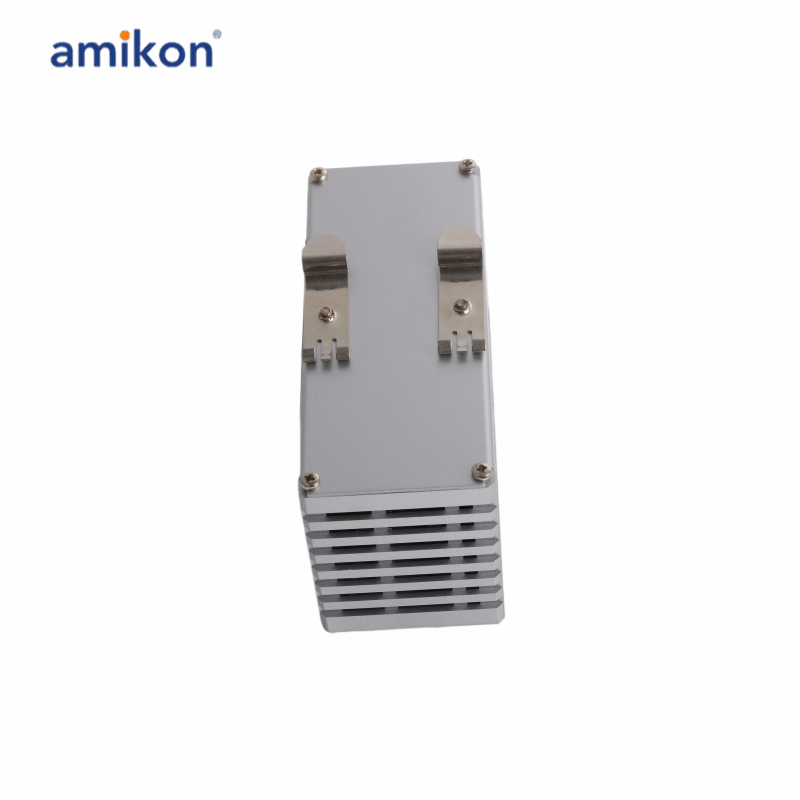

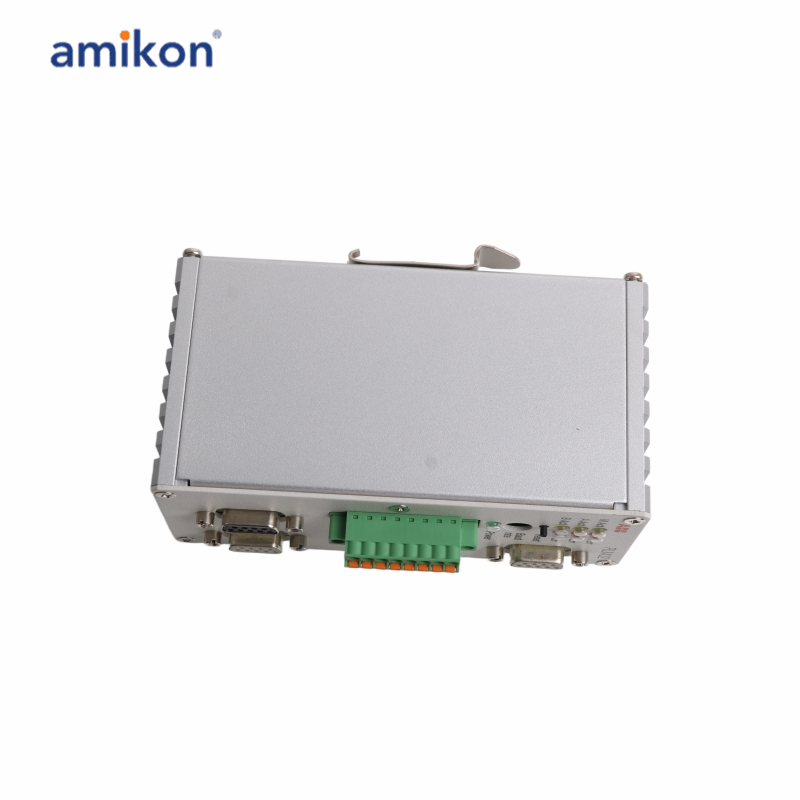

Product Specifications

Part Number	RLM02 3BSE091723R1
Connections	A, B and M
Baud Rate	9.6 kBit/s to 12 MBit/s
Interface Type	RS-485
Connector	9-pin Sub-D connector
Electrical Isolation	Functionally isolating to IEC/EN 61010-1
Test Voltage	500 Veff
Device Protection Class	3
Operating Voltage	24 VDC (+20 … +33 V)
Power Consumption	Typically 120 mA at 24 V
Power Loss	Approx. 3.6 W
Terminal Connection	8-pin terminal strip
Wire CrossSection	0.14 … 1.5 mm²
Operating Temperature	0 … 55 °C
Transport / Storage Temperature	-30 … 85 °C
Altitude	Up to 2000 m

You can position the module directly after a master,before a bus segment with several slaves or beforean individual slave. PROFIBUS stations with redun-dant couplers [K] can be directly connected to thePROFIBUS set redundant by RLM02.
Stations with only one interface can be optionallyassigned to the A or B line. Each RLM02 PROFIBUSinterface can serve up to 31 PROFIBUS stations. Us-ing repeaters [R] and media converters [O/E] makesit possible to increase the length of the PROFIBUSlines and the number of stations.
The three RS 485 interfaces of the module supportall transmission rates specified in IEC 61158-2 forthe PROFIBUS from 9.6 kbit/s to 12 Mbit/s. The module has repeater functionality, i.e., it regener-ates the signal shape and the amplitude of receiveddata. RLM02 monitors all three lines A, B and Mforactivity and error states.

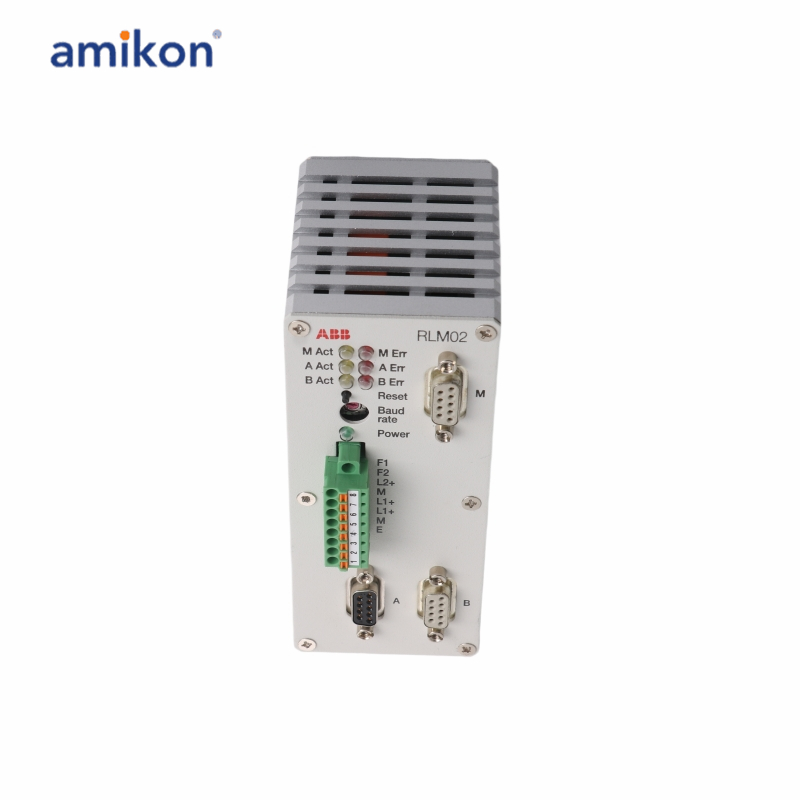

Detected errors are signalled by LEDs (light emittingdiodes) on the front panel. The potential-free alarmcontact activated in parallel to this can be polled fordiagnostic purposes by the process control systemPCS or by a PLC. Thethree serial RS 485 interfaces are potential-free rela-tive to each other and to the power supply. This is afunctional electrical isolation.

Frequently asked questions：

Q1: What is the ABB RLM02 3BSE091723R1 Link Module?
A1: It is an industrial link module used for communication and signal interfacing within ABB and control systems.

Q2: What is the RLM02 3BSE091723R1 device protection class of this module?
A2: The RLM02 3BSE091723R1 device protection class is Class 3.

Q3: What is the RLM02 3BSE091723R1 operating voltage range?
A3: The RLM02 3BSE091723R1 operating voltage is 24 VDC with a range of +20 V to +33 V.

Q4: What is the RLM02 3BSE091723R1 operating temperature range?
A4: The RLM02 3BSE091723R1 operating temperature range is 0°C to +55°C.

Q5: What is the RLM02 3BSE091723R1 maximum installation altitude supported?
A5: The RLM02 3BSE091723R1 module supports installation at altitudes up to 2000 meters.

Product Applications

Food and Beverage Processing
Material Handling/Conveying Systems
Textile Industry
Packaging and Printing Machinery
Rubber and Plastics Processing
Woodworking Machinery
