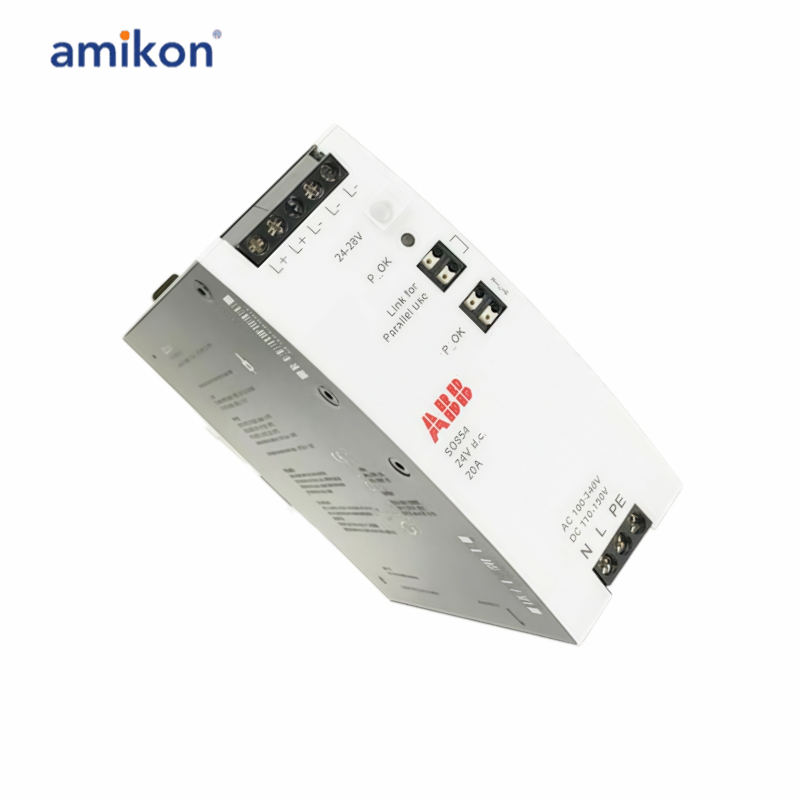

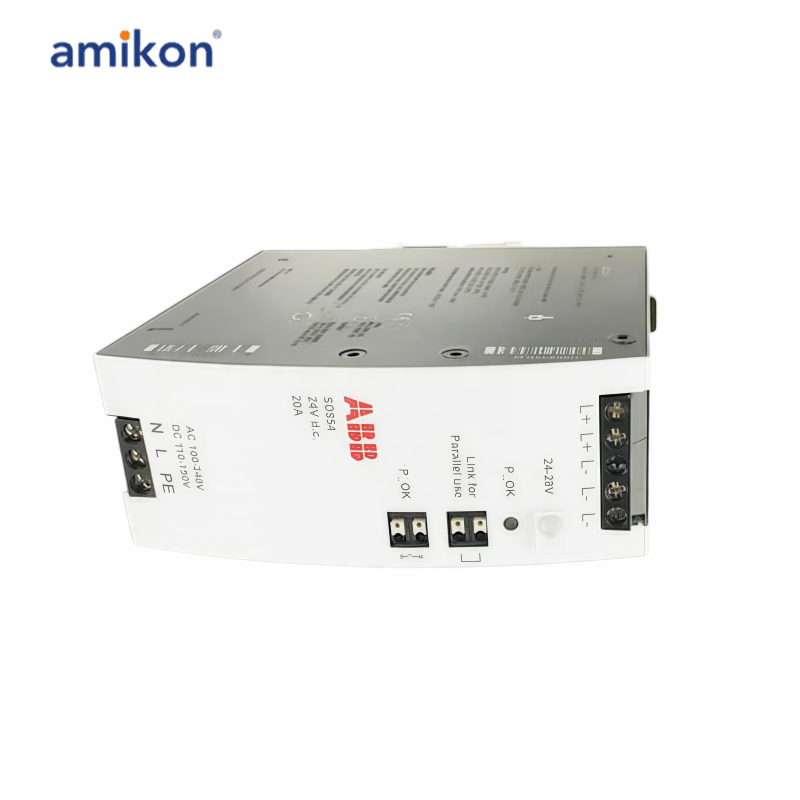

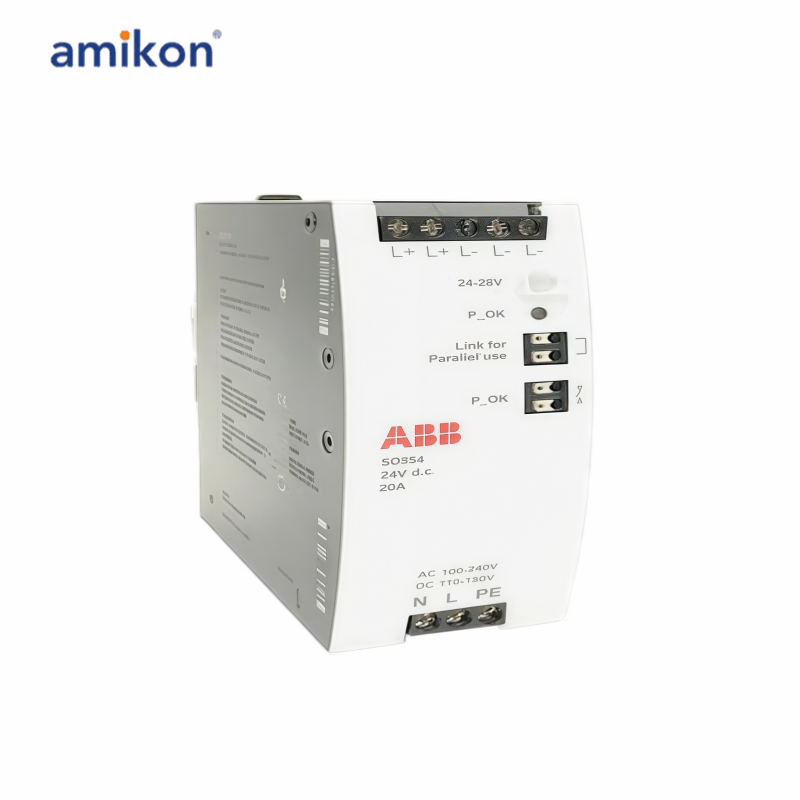

Product Specifications

Part Number	SD854 3BSE088189R1
Type	Power supply
Rated Output Current	20 A
Rated Output Power	480 W
Rated Output Voltage	24 V DC
Nominal Mains / Input Voltage	100–240 V AC, 110–150 V DC
Applications	SELV and PELV
Efficiency	92.4% @ 120 V AC / 95.6% @ 230 V AC
Mains Frequency	50–60 Hz ±6%
Primary Peak Inrush Current at Power On	< 10 A
Heat Dissipation	29.6 W @ 120 V AC / 22.1 W @ 230 V AC
Output Voltage Regulation (at max current)	100 mV
Secondary Voltage Holdup Time (mains blackout)	32 ms
Maximum Ambient Temperature	70 °C
Primary Recommended External Fuse	10–20 A
Output Overvoltage Protection	Max 32 V DC
AC Input Current	4.26 A / 2.23 A
AC Inrush Current	10 A / 4.5 A peak

The SD854 Power supply units are designed for high efficiency, electronic inrush current limitation, wide operating temperature range, and extraordinarily small size. The lowest power losses and high lifetime expectancy deliver the lowest cost of ownership.
The SD854 series complies for use in potentially explosive atmospheres (IECEx Zone 2 and ATEX Zone 2). The SD854 series has a built-in power reserve and can easy breaking fuses due to high overload peak current capability.

Frequently asked questions：

Q1: What is the ABB SD854 3BSE088189R1?
A1: It is a high-capacity industrial power supply module designed to provide stable 24 V DC power for and control systems.

Q2: What is the SD854 3BSE088189R1 rated output voltage?
A2: The SD854 3BSE088189R1 module delivers a regulated output of 24 V DC, suitable for standard industrial equipment.

Q3: What is the SD854 3BSE088189R1 rated output current?
A3: It provides up to 20 A of output current, supporting higher load requirements.

Q4: What is the SD854 3BSE088189R1 rated output power?
A4: The total output power is 480 W, making it suitable for large-scale systems.

Q5: What is the SD854 3BSE088189R1 AC input current?
A5: The SD854 3BSE088189R1 AC input current is approximately 4.26 A at 120 V AC and 2.23 A at 230 V AC.

Product Applications

Oil and gas
Energy and Electricity
Water treatment and water conservancy projects
Paper and textile industries

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
