Product Specifications

Product Model	SNAT7261QCP
Product Type	Main Interface Board
Input Voltage	24 VDC / 220 V AC
Output Voltage	24 VDC
Input Current	Max. 15 mA
Output Current	Max. 250 mA
Memory Capacity	1 MB Flash, 128 KB RAM
Protection Rating	IP20
Operating Temperature	-25°C to +70°C
Humidity Range	5%–95% (non-condensing)

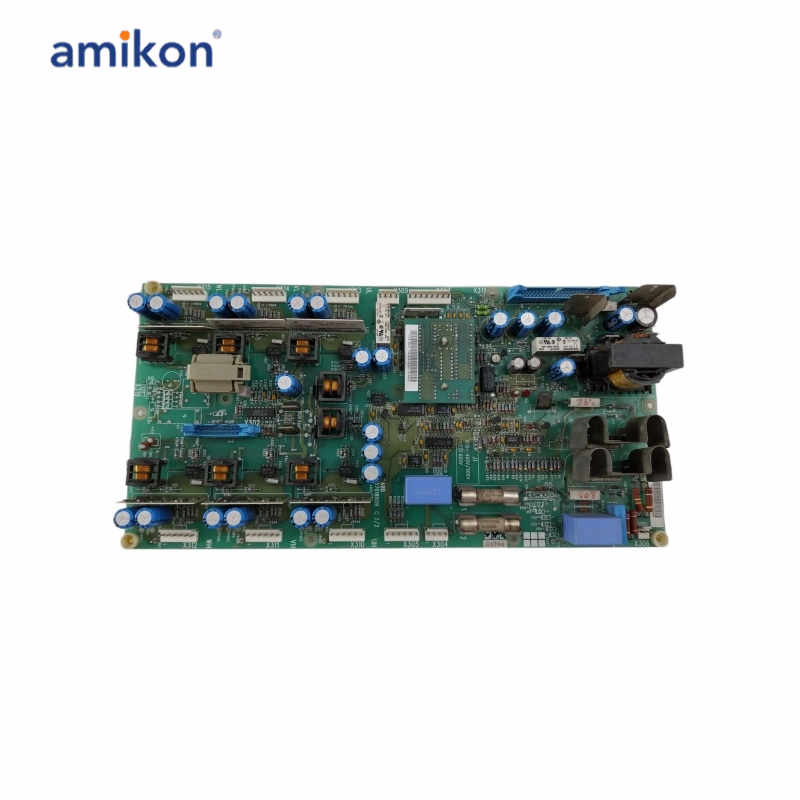

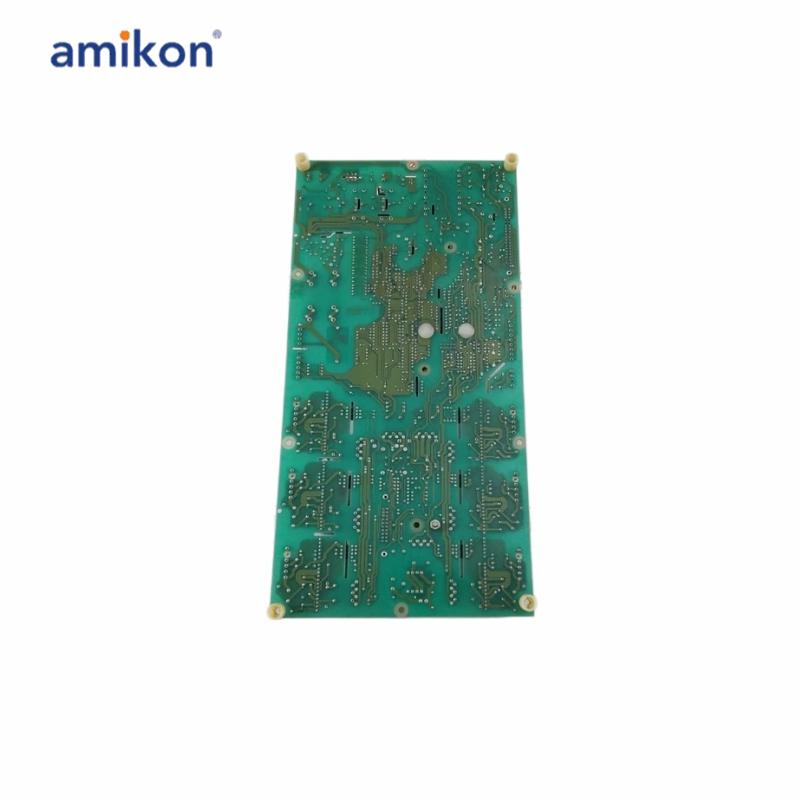

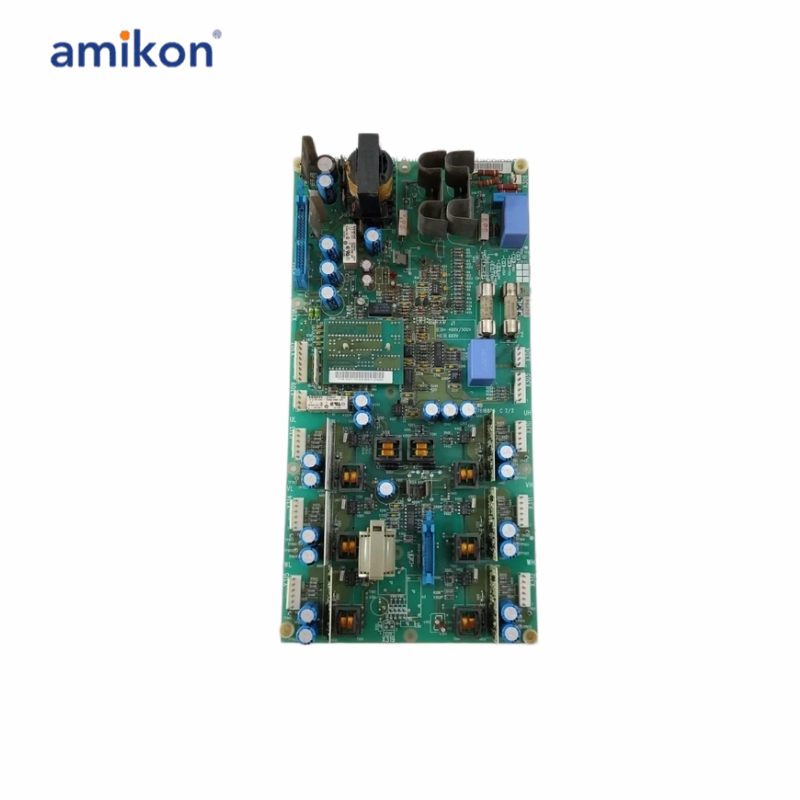

The ABB SNAT7261QCP is a dedicated power supply module designed for use within ABB’s industrial drive and control systems, specifically as a component in the ACS800 series and related drive platforms. This module serves as a power supply unit, providing regulated DC power to control boards, I/O interfaces, communication adapters, and other critical components within the drive system. As an OEM component, the ABB SNAT7261QCP is engineered to meet ABB’s stringent specifications for reliability, efficiency, and compatibility, ensuring stable operation of drive control electronics in demanding industrial applications. The “SNAT” prefix is characteristic of ABB’s internal spare parts numbering system for drive-related components. It is recognized as a critical replacement part for maintaining and repairing ACS800 drives, enabling facilities to extend equipment lifespan and minimize downtime through exact-component replacement.

Frequently asked questions：

Q1: What is the ABB SNAT7261QCP used for?
A1: It is used as a main interface board in ABB industrial and drive control systems.

Q2: What input voltage does the SNAT7261QCP support?
A2: It supports 24 VDC and 220 V AC input voltage.

Q3: What is the output voltage of the SNAT7261QCP board?
A3: The SNAT7261QCP output voltage is 24 VDC.

Q4: What is the maximum input current of the SNAT7261QCP module?
A4: The SNAT7261QCP maximum input current is 15 mA.

Q5: What is the SNAT7261QCP operating temperature range?
A5: The SNAT7261QCP operating temperature range is -25°C to +70°C.

Product Applications

Marine & Offshore
Metallurgy & Steel
Power & Energy
Oil, Gas & Chemical
Paper & Cement

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
