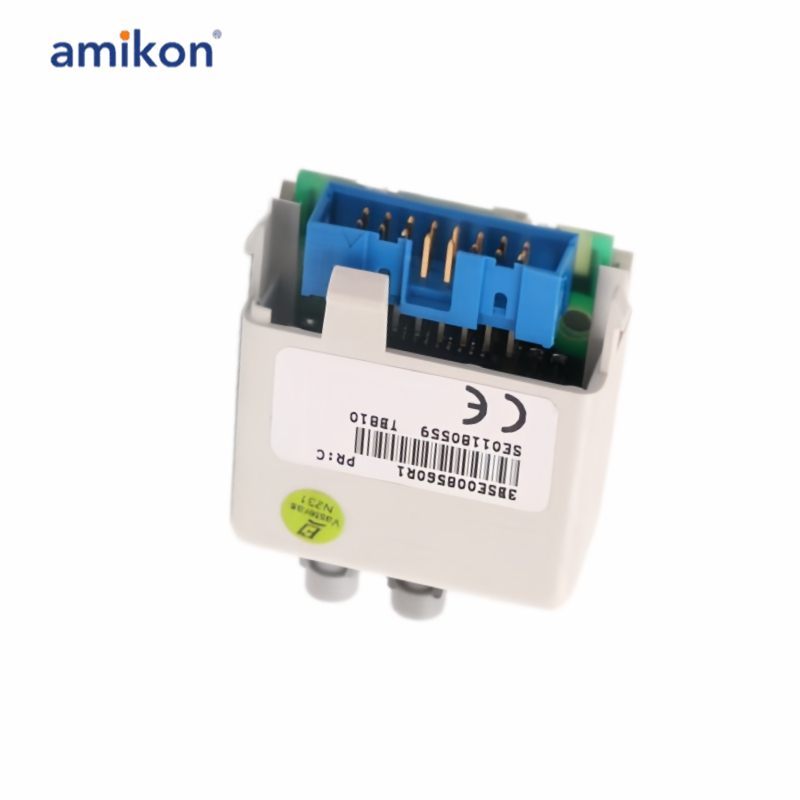

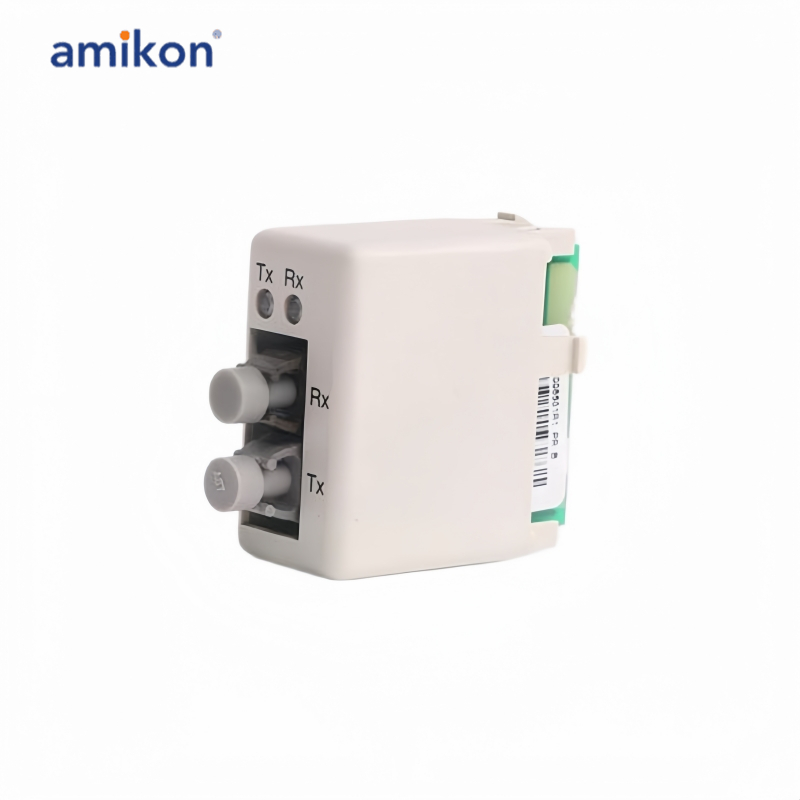

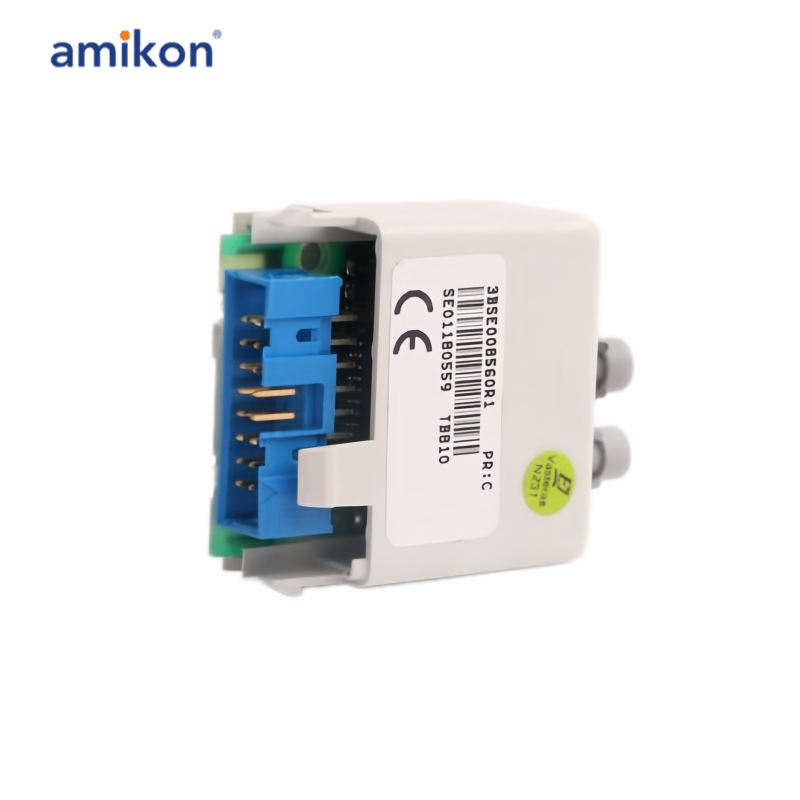

ABB TB810 3BSE008560R1 Modulebus Optical Port

Brand: ABB
Model: TB810
Product ID: 3BSE008560R1
Series: Advant Controller 800
Power Supply: 24 VDC.
Operating Temp: -40°C to +70°C (-40°F to +158°F).
Protection: IP67 rating
Data Rate: 10 Mbps.
Product Type: Modulebus Optical Port
Product Net Depth/ Length: 20 mm
Product Net Height: 40 mm
Product Net Width: 40 mm
Product Net Weight: 0.035 kg

The ABB TB810 3BSE008560R1 Modulebus Optical Port is a communication interface module used in the ABB S800 I/O distributed control system. It provides a fiber-optic connection for the Modulebus, enabling reliable high-speed data communication between I/O modules and the control system.

Frequently asked questions：

1. What is the function of the TB810 module?
The TB810 provides a fiber-optic interface for the Modulebus, enabling communication between S800 I/O modules and ABB controllers.
2. Which ABB modules work with TB810?
It is commonly used together with CI810, CI820, and CI830 communication interface modules in the S800 I/O system.
3. What is the TB810 3BSE008560R1 maximum transmission distance?
Using fiber-optic cables, the TB810 can support communication distances of up to approximately 2 km, depending on the type of fiber and installation conditions.

Product Applications
Energy & Power: Used in wind turbines, solar farms, and hydroelectric plants to connect remote sensors across vast distances.
Process Industries: Found in oil & gas refineries, chemical plants, and water treatment facilities where electrical isolation is needed to prevent ground loops.
Heavy Manufacturing: Deployed in steel mills, mining operations, and large-scale assembly lines to maintain signal integrity near heavy machinery.

Key Functions & Compatibility
Purpose: Facilitates communication between the S800 I/O station and a controller or another I/O station via fiber optics.
System Integration: Used alongside CI810, CI820, or CI830 fieldbus communication interfaces.
EMI Immunity: Being optical, it is immune to electromagnetic interference, making it suitable for harsh industrial environments.
