Product Specifications

Brand Name	ABB
Part Number	TC810 3BSE076220R1
Mechanics	Select I/O
External Output Type	100 Base-TX with RJ45 (8P8C) connector
Number of External Ports	2
Connecting Cable Type	CAT 5, WG 22 or better
Max. Cable Length	100 m
Power Dissipation	0.8 W
Typical 24 V Current Consumption	60 mA
Operating Temperature	-40 °C (-40 °F) to +70 °C (158 °F)
Storage Temperature	-40 °C (-40 °F) to +85 °C (185 °F)
Pollution Degree	Pollution Degree 2 acc. to IEC 60664-1
Relative Humidity	5–95 %, non-condensing
Altitude	-1000 to 5000 m (restrictions apply)
Width	25 mm
Depth	76.3 mm
Height	110 mm
Weight (including base)	105 g

Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel.

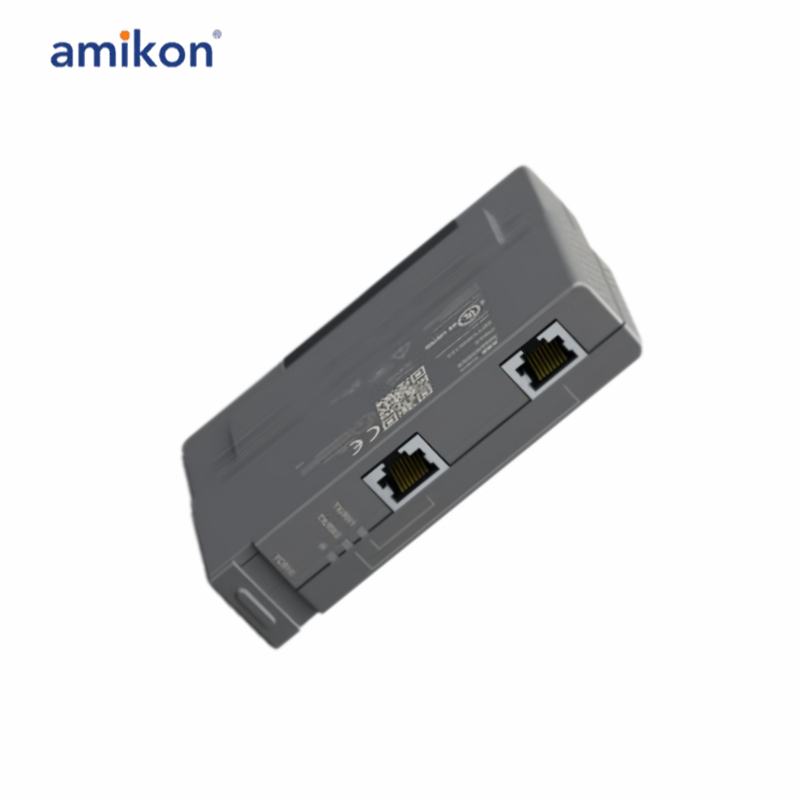

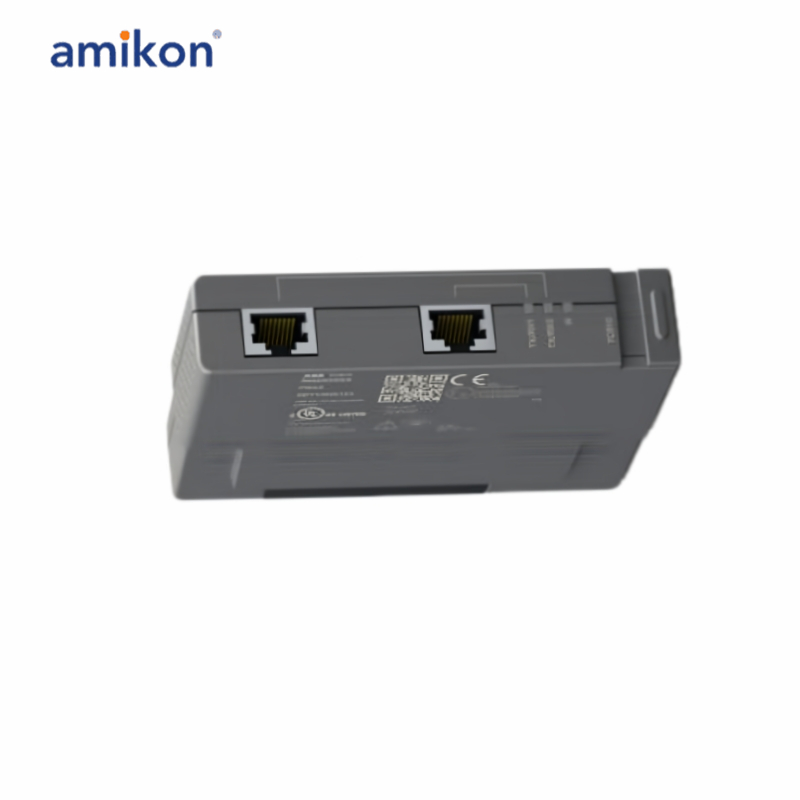

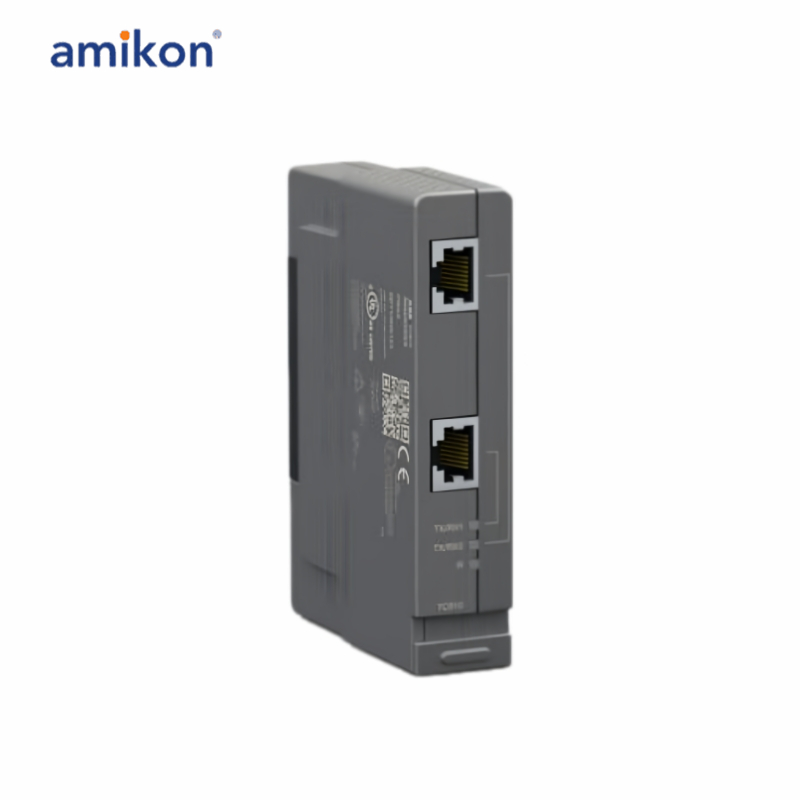

TC810 is an Ethernet Adapter for copper media with a built-in 2 port (RJ45) switch. For redundant configurations, two Ethernet Adapters TC810s are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs.

Frequently asked questions：

Q1: What is the ABB TC810 3BSE076220R1 Ethernet Adapter?
A1: It is an industrial Ethernet adapter used for communication connectivity and network interfacing in ABB and control systems.

Q2: What is the TC810 3BSE076220R1 operating temperature range of this adapter?
A2: The TC810 3BSE076220R1 operating temperature range is -40°C (-40°F) to +70°C (158°F).

Q3: What is the TC810 3BSE076220R1 storage temperature range?
A3: The TC810 3BSE076220R1 storage temperature range is -40°C (-40°F) to +85°C (185°F).

Q4: How many external ports does this adapter provide?
A4: The TC810 3BSE076220R1 adapter provides 2 external Ethernet ports.

Q5: What is the TC810 3BSE076220R1 maximum supported cable length?
A5: The TC810 3BSE076220R1 maximum supported cable length is 100 meters.

Product Applications

Oil & Gas
Petrochemicals
Energy & Power
Water & Wastewater
Pharmaceutical
