Product Specifications

Part Number	E-ME-T-01H
Product Type	Analog Electronic Driver
Form Factor	Eurocard
Application	For Proportional Valve with Transducer
Solenoid Type	Single Solenoid Type
Reference Signal	4–20 mA
Supply Voltage	24 VDC
Max Power Consumption	50 W
Solenoid Supply Current	3.3 A square wave PWM type
Reference Signal Variation Range	±10 V (SW pos. 1) and ±5 V (SW pos. 2)

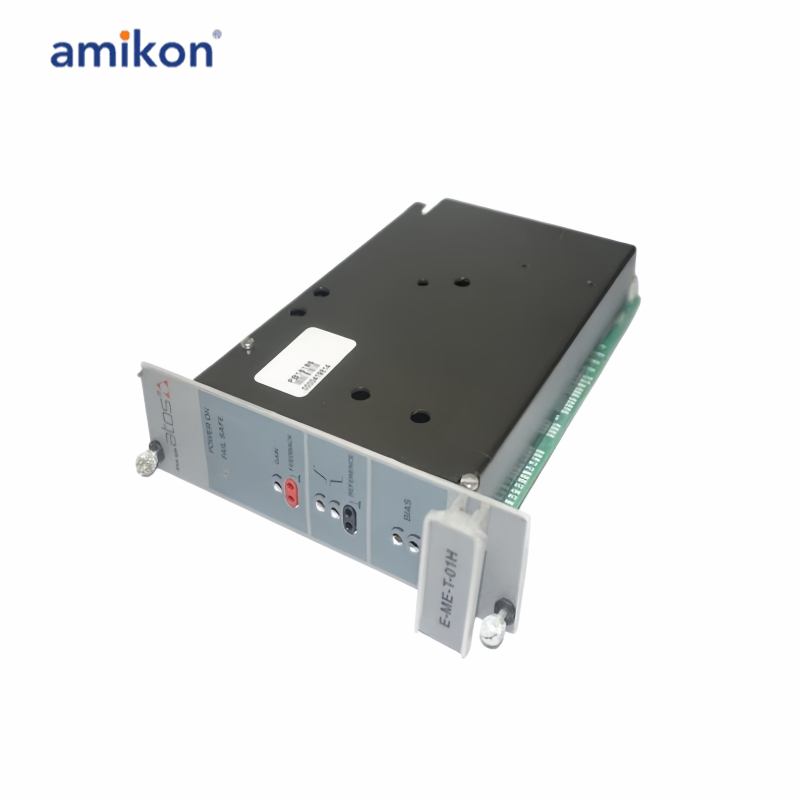

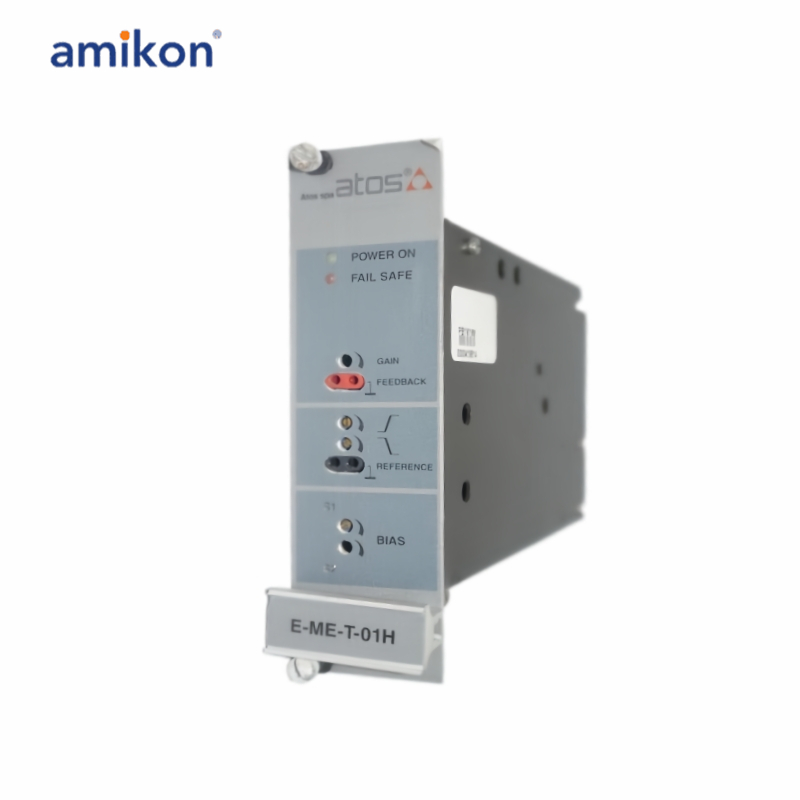

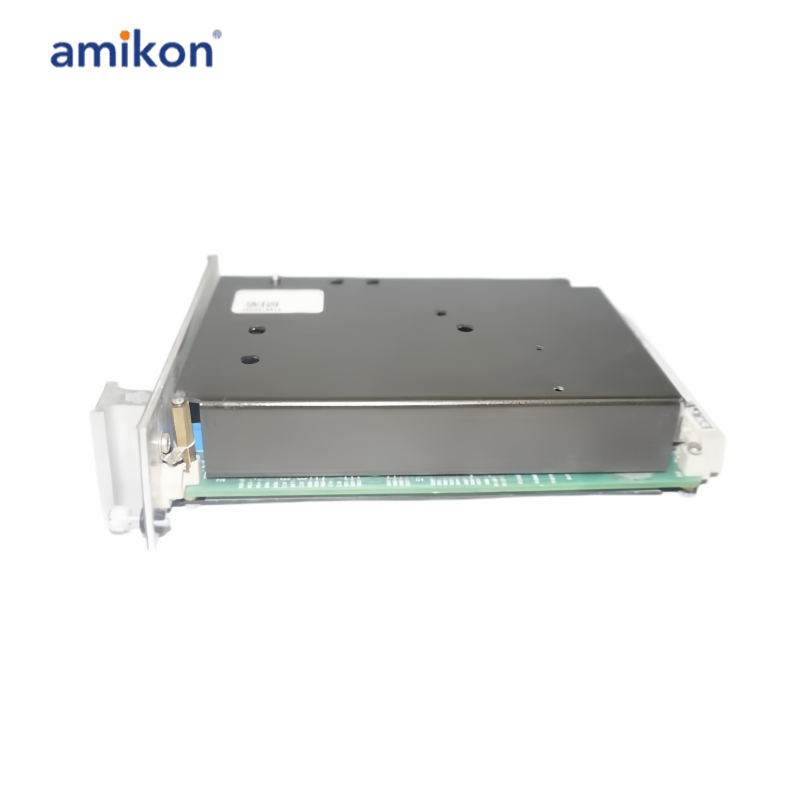

The ATOS E-ME-T-01H is a high-performance Analog Electronic Driver used for precise control of proportional hydraulic valves in industrial and motion control systems. This driver module provides accurate signal regulation and stable valve control, making it suitable for hydraulic applications requiring high dynamic response and reliable operational performance.
With a maximum power consumption of 50W, the E-ME-T-01H supports efficient operation in demanding industrial environments. The module accepts reference signal variation ranges of ±10V (switch position 1) and ±5V (switch position 2), allowing flexible integration with different control systems and architectures. The spool feedback signal through connector T2 operates at ±5V, ensuring accurate closed-loop control and stable valve positioning.
The driver features high input signal impedance with voltage Ri >50 kΩ (/I option Ri = 316 Ω), helping maintain reliable signal integrity during operation. It also provides potentiometer supply outputs of +10V/10mA at contact 10c and -10V/10mA at contact 14c for external control adjustments and calibration functions.

Frequently asked questions：

Q1: What is the ATOS E-ME-T-01H Analog Electronic Driver?
A1: It is an analog electronic driver used for controlling proportional hydraulic valves in industrial and motion control systems.

Q2: What type of reference signal does the E-ME-T-01H driver use?
A2: The driver uses a 4–20 mA reference signal for command and control input.

Q3: What is the E-ME-T-01H required supply voltage?
A3: The E-ME-T-01H supply voltage is 24 VDC.

Q4: What is the E-ME-T-01H maximum power consumption of this driver?
A4: The E-ME-T-01H maximum power consumption is 50 W.

Q5: What is the E-ME-T-01H solenoid supply current specification?
A5: The E-ME-T-01H solenoid supply current is 3.3 A with square wave PWM control.

Product Applications

Mechanical Manufacturing and Processing
Metallurgy and Heavy Industry
Transportation and Marine Engineering
Aerospace and Testing Facilities
