Product Specifications

Part Number	AIO216
Channel Quantity	16 channels
Galvanic Isolation Voltage	500 V
Power Supply Range	18 V ~ 34 VDC
Internal Current Consumption	80 mA
External Current Consumption (24 V, no load)	200 mA
Voltage Input Ranges	±10 V, ±1 V, ±100 mV, ±10 mV
Current Input Ranges	±20 mA, 0–20 mA, 4–20 mA
Overvoltage Protection	±24 V
Supported Temperature Sensors	Pt100 / Pt1000, 2-wire / 3-wire / 4-wire connection
Temperature Measurement Range	-100°C ~ +800°C
Basic Accuracy	±0.15 %
Resolution	14 bit
Max Burden Resistance	Up to 600 Ω
Accuracy at 25°C	Voltage: ±0.05%; Current: ±0.2% FS
Operating Temperature	-30°C ~ +60°C

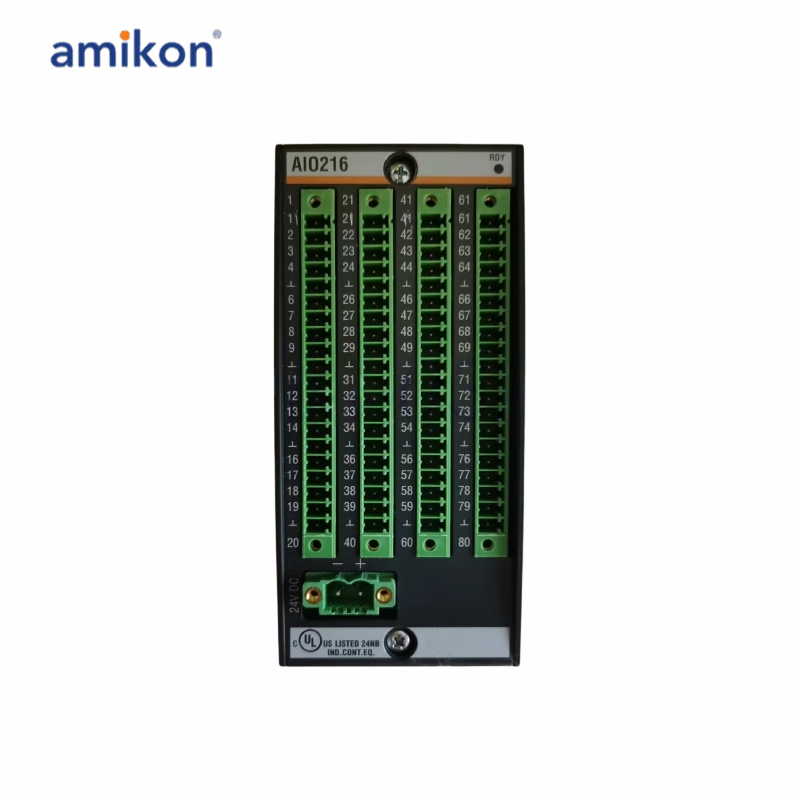

The AIO208 and AIO216 modules enable the measuring or output of all standard analog signals. The AIO208 offers 8 channels and the AIO216 16 channels compactly in a single module. The standard signal types for current (0 to 20 mA and 4 to 20 mA) and voltage ranges (±10 V to ±10 mV) allow the connection of a wide range of sensors and actuators. A minimum 14 bit resolution makes it possible to also measure signals that do not fully utilize the measuring range (e.g. 0 to 5 V) with a sufficiently high resolution.

Frequently asked questions：

Q1: What is the BACHMANN AIO216 Analog Input/Output Module used for?
A1: The AIO216 is an analog I/O module designed for acquiring, processing, and transmitting analog signals in industrial and control systems.

Q2: How many channels does the AIO216 module provide?
A2: The AIO216 module features 16 analog input/output channels, allowing multiple field devices to be connected simultaneously.

Q3: What is the galvanic isolation voltage of the AIO216 module?
A3: The AIO216 provides 500 V galvanic isolation, helping protect the control system from electrical interference and ground potential differences.

Q4: What is the power supply range of the AIO216 module?
A4: The AIO216 module operates with a supply voltage range of 18 VDC to 34 VDC.

Q5: What is the internal current consumption of the AIO216?
A5: The AIO216 internal current consumption is 80 mA.
