Product Specifications

Part Number	ME203/CN
CPU Clock Speed	33 MHz
System Volatile Memory	8 MB DRAM
Non-Volatile Memory	512 kB SRAM
Expandable Storage Slot	1 set PCC slot
Power Input	24 VDC
Integrated Power Output	17 W

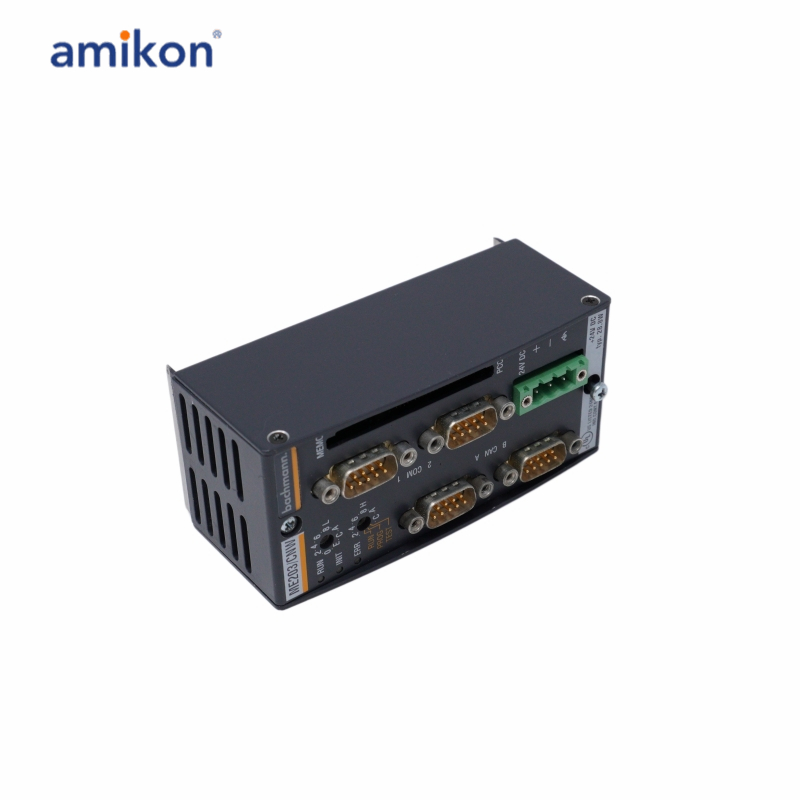

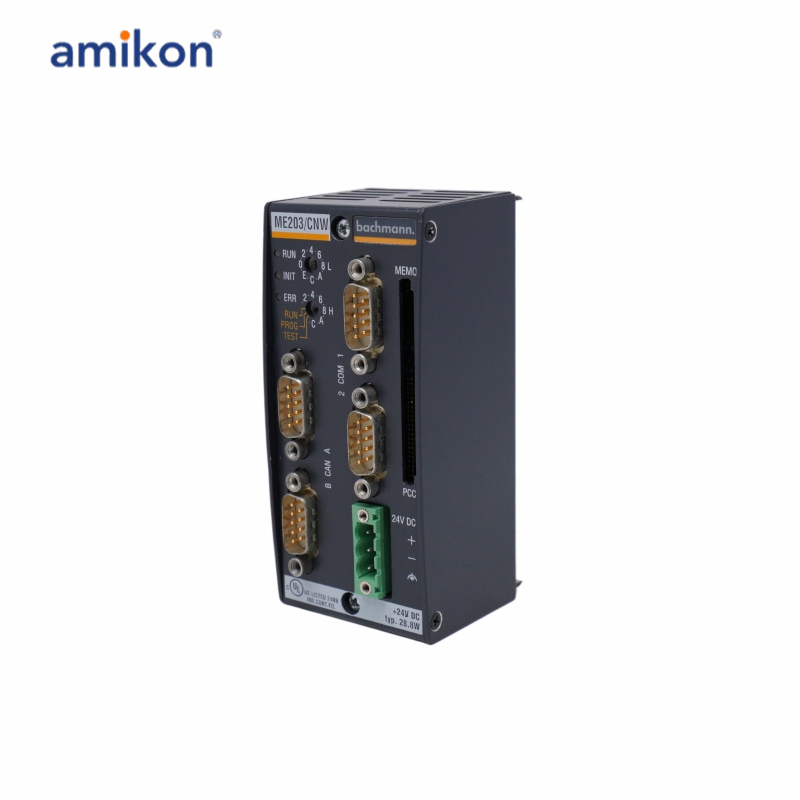

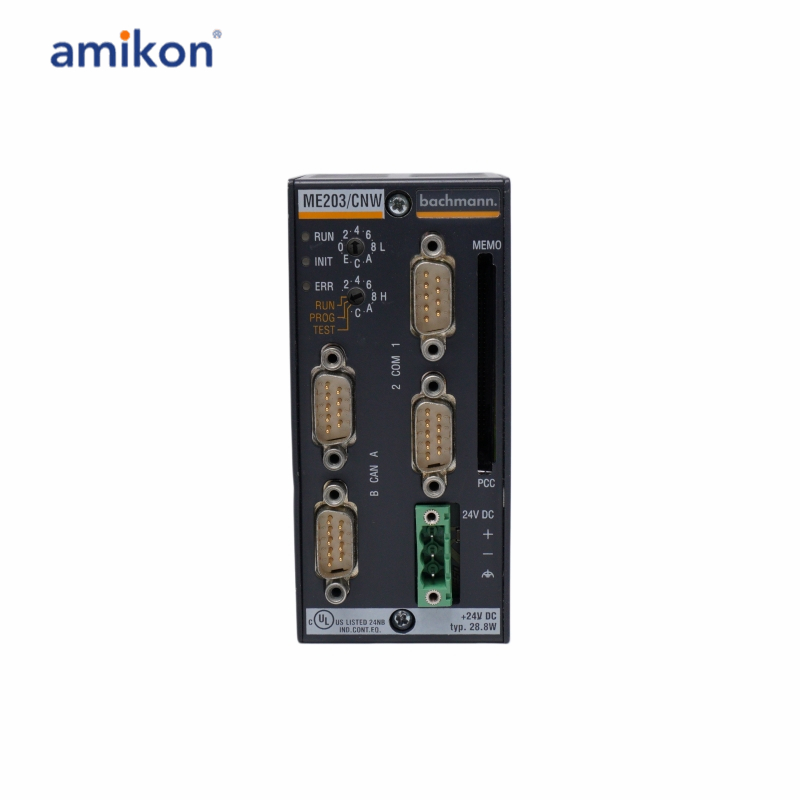

The Bachmann ME203/CN is a highly compact, resilient central processing unit designed as the core computational hub for the Bachmann M1 platform, widely deployed in rigorous mission-critical sectors such as offshore wind energy, maritime propulsion control, and heavy factory .

Storage and memory integrity are safeguarded by a multi-tiered architecture featuring 8 MB of system DRAM, 8 MB of file-flash memory for application logic, and 512 kB of battery-backed SRAM designed to instantly lock and retain critical process variables, persistent machine states, and system receipts during sudden power interruptions

Frequently asked questions：

Q : Does the ME203/CN require an external power supply module for its backplane?
No, it features an integrated 17W power supply unit that powers itself and adjacent connected I/O modules directly via the backplane.

Q : How much non-volatile data can I retain during a power outage?
The module contains 512 kB of battery-backed SRAM dedicated to retaining persistent variables and retain-tags.

Q : What is the maximum data rate supported by the integrated CAN interface?
The onboard CAN/CANopen interface supports standard industrial transmission speeds up to 1 Mbit/s.

Q : What is the input voltage requirement for the module?
The module requires a stable nominal input of 24 VDC (-20% / +25% tolerance).

Product Applications

Wind power plants
Printing and packaging plants
Marine engineering and port machinery
Rail transportation and power systems

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
