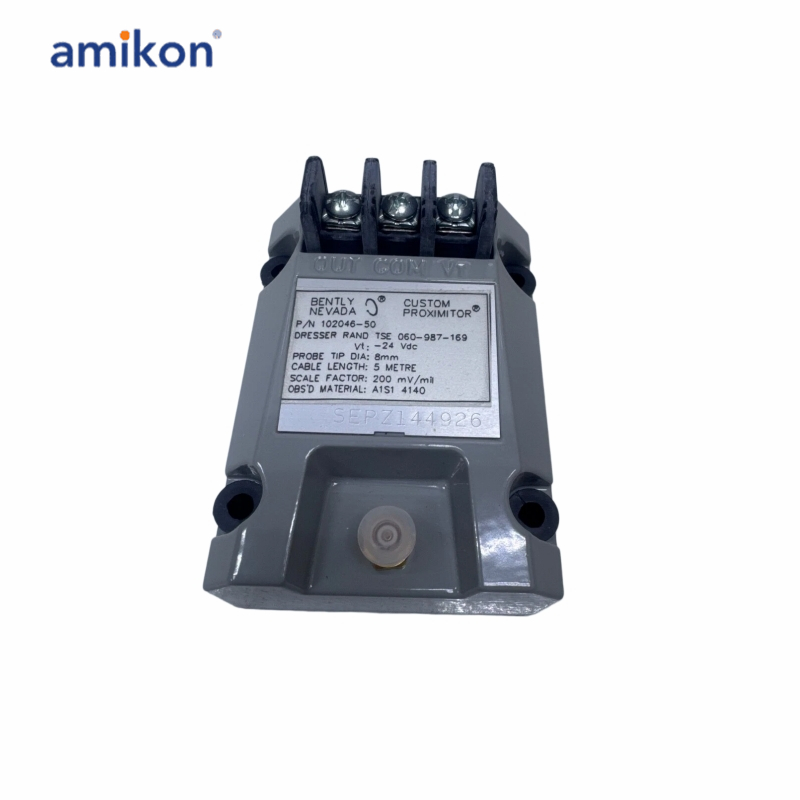

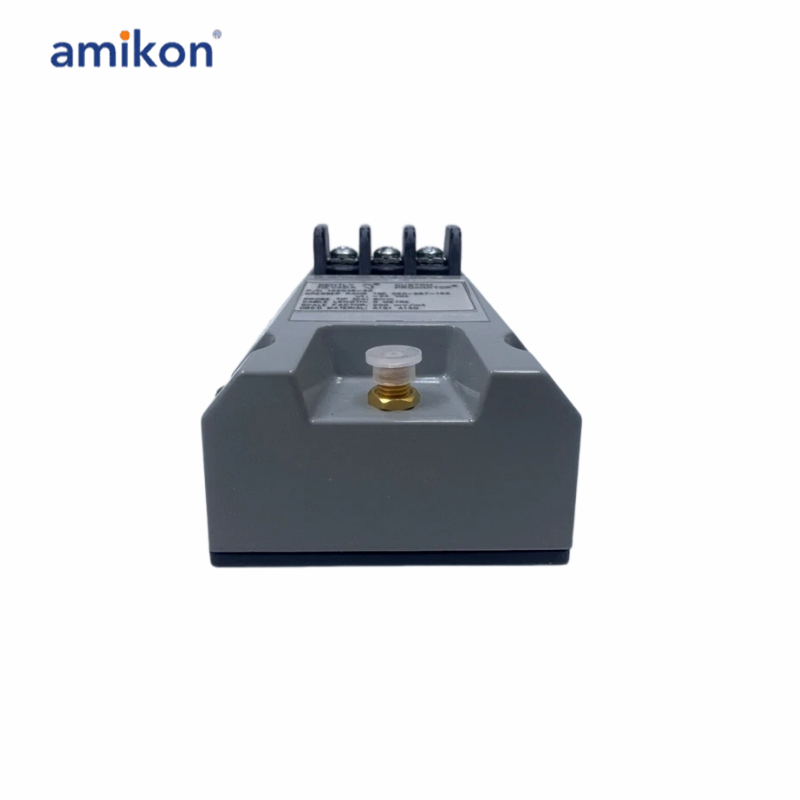

Bently Nevada 102046-50 Custom Proximitor

Model：102046-50
Sensor Type：Custom Proximitor® Sensor (Application-Specific Calibration or Housing)
Cable Type：75 Ω Coaxial, Armored for Protection
Cable Length：50 ft (≈15.2 m)
Connector Type：Standard BNC / ClickLoc™ Style, Vibration-Resistant
Operating Voltage：24 V DC (Supplied via Proximitor® Sensor)
Measurement Gap：Standard 2 mm (Custom Ranges Available)
System Compatibility：Compatible with 3300 XL Proximity Probes and Proximitor Sensors
Weight：0.60 lbs
Standards Compliance：API 670 Machinery Protection Standards (Depending on Configuration)

The Bently Nevada 102046-50 Custom Proximitor@ is a specialized proximity transducer assembly that integrates acustom Proximitor sensor with a 50-foot (15.2 m) armored extension cable. Designed as part of the 3300 XLProximity Transducer System, it delivers precise non-contact measurements of shaft vibration, axial position, andclearance for rotating machinery. The custom Proximitor@ configuration accommodates OEM or end-user requirements beyond standard catalog options.
This assembly is ideal for continuous online monitoring of machinery vibration and position, particularly ininstallations requiring extended cable runs. Its armored construction ensures mechanical robustness and chemicalresistance while maintaining signal integrity between the probe and Proximitor@ sensor.

Frequently asked questions：

Q1: Can this assembly replace standard 3300 XL Proximitor(@ sensors?
A1: Yes, it can replace standard sensors when a custom configuration or extended cable length is required.
Q2: Is the 102046-50 cable length customizable?
A2: Yes, different cable lengths can be provided based on OEM or end-user requirements.
Q3: Does this assembly comply with API 670 standards?
A3: Yes, it is compliant when configured correctly and can be used in industrial machinery protection systems.
Q4: Can it be directly integrated into an existing 3300 XL system?
A4: Yes, but connection type and system compatibility should be verified before replacement.

Product Applications
Condition monitoring of large rotating machinery: Widely applied in the measurement of shaft displacement, shaft vibration and rotational speed of key equipment such as steam turbines, compressors, hydro turbines, motors and pumps.
Control of heavy industry production lines: Integrated into the control system of large automated production lines, achieving automatic monitoring and protection in coordination with PLC  or DCS  .
Power and energy industry: Used in power (such as the supporting system of General Electric), petrochemical and metallurgical industries, which have extremely high requirements for the stability of equipment operation.
