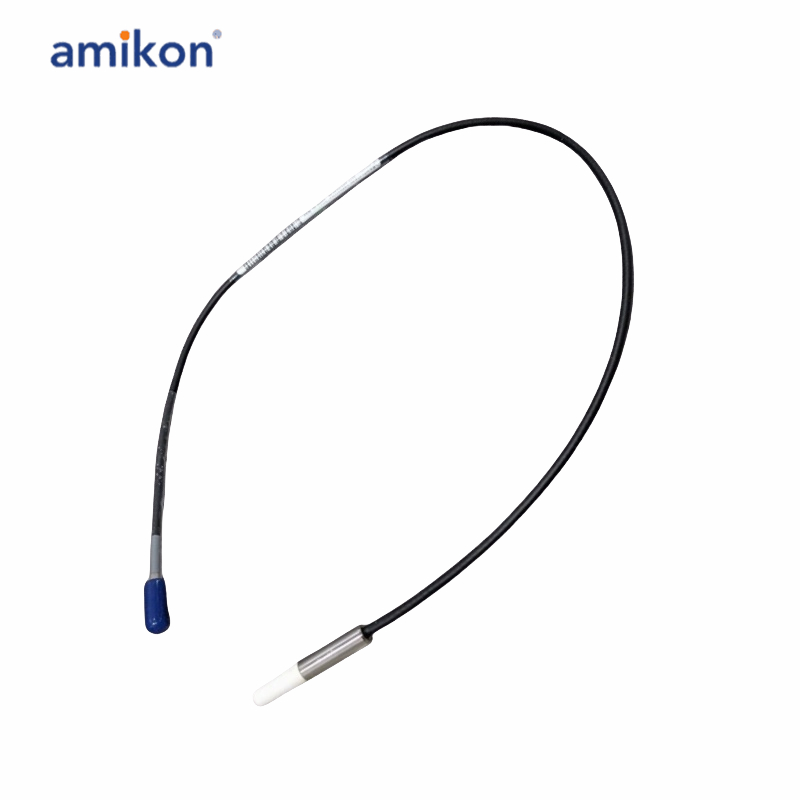

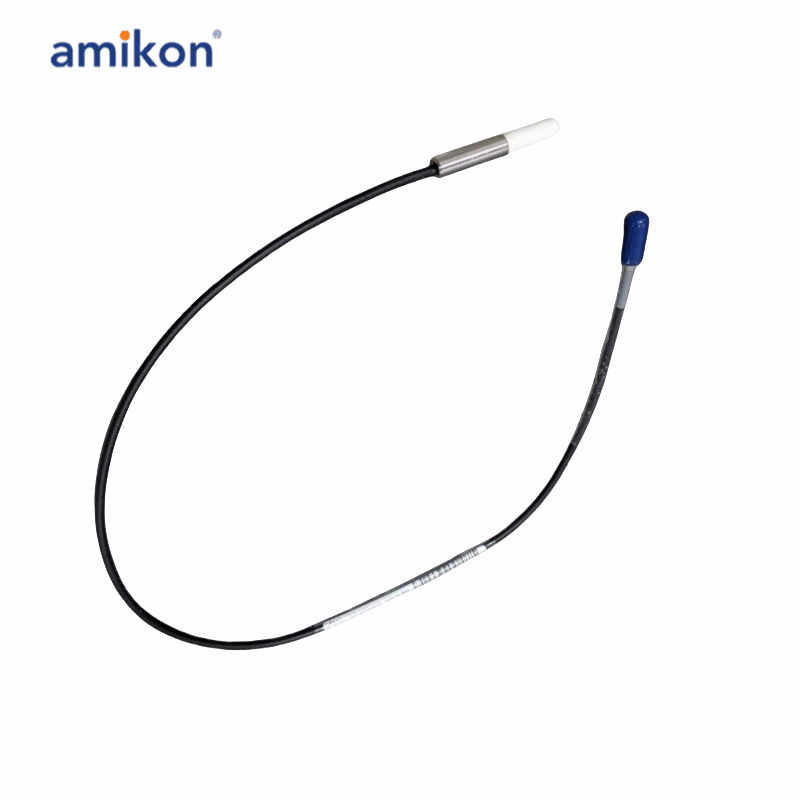

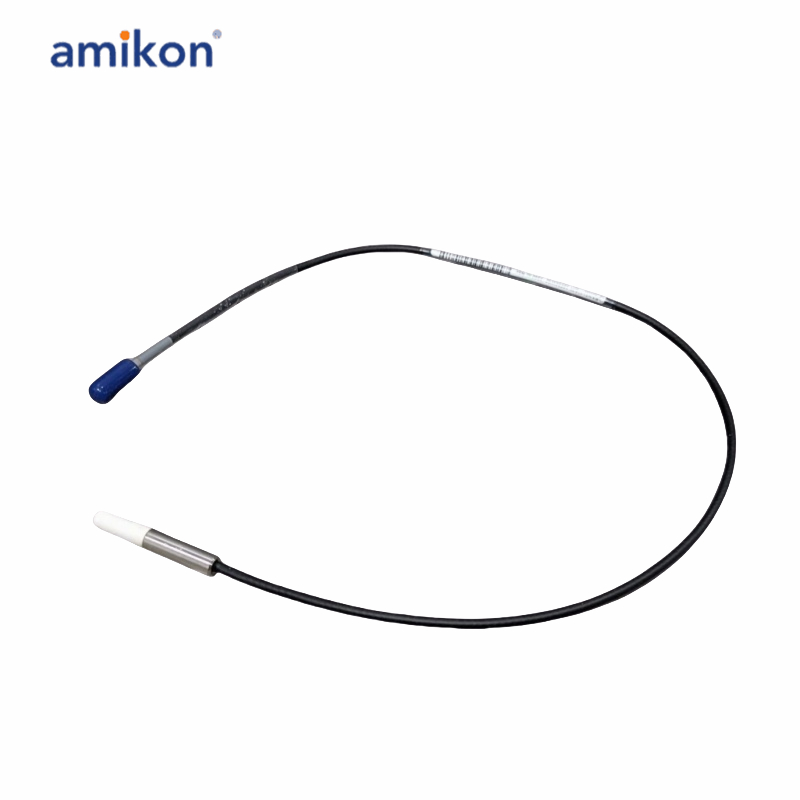

brand new Bently Nevada 123616-01 3300XL NSv Proximitor Probe,Bently Nevada 123616-01 3300XL NSv Proximitor Probe suppliers,Bently Nevada 123616-01 3300XL NSv Proximitor Probe manufacturers,factories

Manufacturer : Bently Nevada
Product Number : 123616-01
Product type : 3300XL NSv Proximitor Probe
System Series: 3300 XL NSv Series
Measurement Range: Typically up to 2 mm (80 mils)
Linear Range: 0.25 mm to 2.0 mm (10 mils to 80 mils)
Linearity Error: Within ±0.127 mm (±5 mils)
Operating Frequency: Typically 200 kHz to 500 kHz
Sensitivity: 7.87 mV/μm (200 mV/mil nominal)
Temperature Range: -35°C to +177°C (probe tip)
Vibration Limit: 49 m/s² (5 g), continuous operation
Insulation Resistance: Greater than 10⁸ ohms at 500 VDC

The Bently Nevada 123616-01 is part of the 3300XL NSv (Narrow Side View) Proximitor® Probe system, specifically designed for use in applications with small shaft diameters and limited physical space. It provides highly accurate, non-contact displacement and vibration measurements by detecting the proximity of a conductive target (typically a rotating shaft). The NSv series offers enhanced linearity over a narrow range and is ideal for high-speed, small machinery such as gas turbines and micro compressors. Its rugged construction and high-temperature tolerance make it well-suited for demanding industrial environments.
