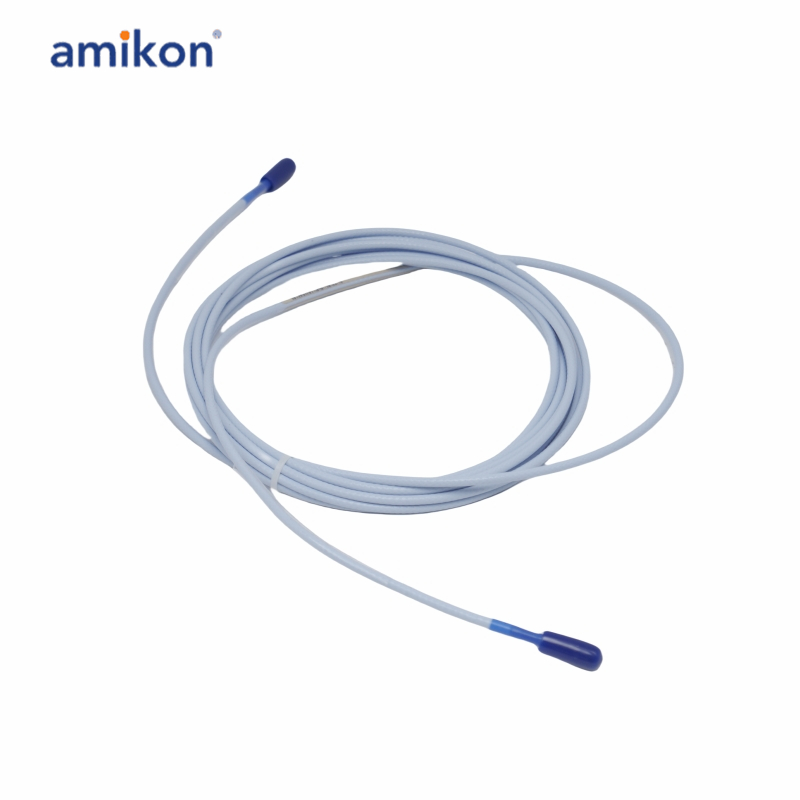

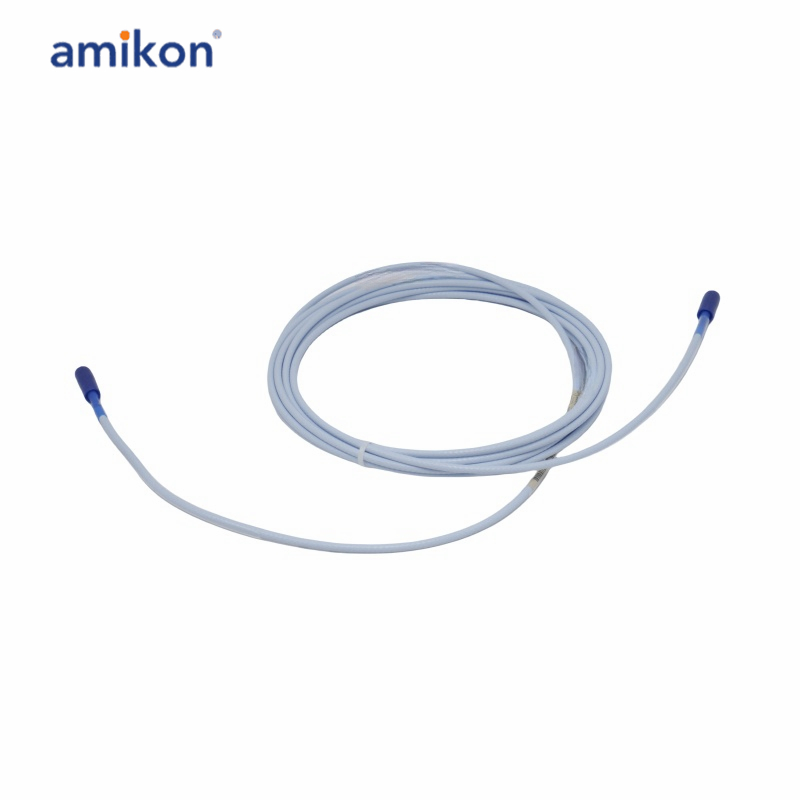

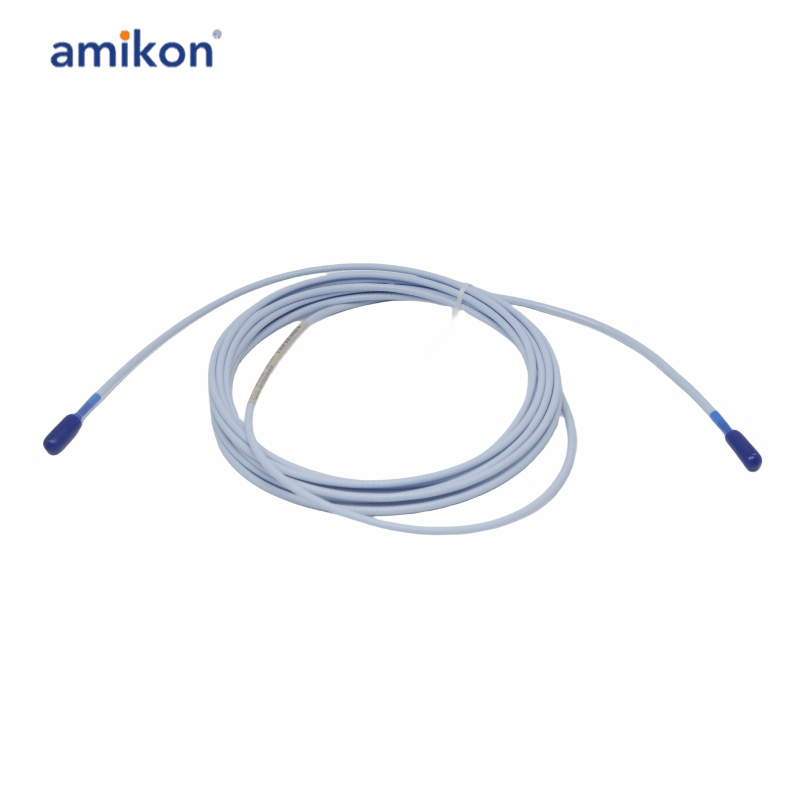

Product Specifications

Manufacturer	Bently Nevada
Model	148722-01
Product Type	3300 XL Test Plug
Test Pins	3 built-in test pins
Single Wire Length	1 meter
Wire Design	Three color-coded wires
Terminal Type	Banana plug termination
Shipping Weight	0.5 kg
Output Resistance	50 Ω
Typical Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft)
Field Wiring Size	0.2 - 1.5 mm²
Nominal Average Scale Factor	394 mV/mm (10 mV/mil)
Linear Range	27.9 mm (1100 mils)

The 3300 XL 50 mm Transducer System consists of a separate50 mm probe, an extension cable, and a 3300 XL 50 mmProximitor Sensor. The large diameter coil gives this system amaximum linear range of 27.9 mm (1100 mils), the longestlinear range of our eddy current transducer line. This linearrange makes the 3300 XL 50 mm Transducer System ideal formeasuring the differential expansion (DE) or rotor expansion(Rx) of large steam turbine generators that results from thedifference in growth rates between the turbine rotor and themachine stator (casing).

Frequently asked questions：

Q1: What is the Bently Nevada 148722-01 3300 XL Test Plug used for?
A1: It is used for testing and signal verification in 3300 XL machinery monitoring systems.

Q2: What is the 148722-01 output resistance of the test plug?
A2: The 148722-01 output resistance is 50 Ω.

Q3: What is the 148722-01 typical extension cable capacitance?
A3: The 148722-01 typical extension cable capacitance is 69.9 pF/m (21.3 pF/ft).

Q4: How many test pins are built into the test plug?
A4: It includes 3 built-in test pins.

Q5: What are the advantages of the 148722-01 Test Plug?
A5: It provides reliable signal testing, easy diagnostics, and stable performance in machinery monitoring systems.

Product Applications

Power Generation
Oil & Gas
Chemical & Metallurgy
Marine
Other Heavy Industries

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
