Part Number: 18745-04-05
Type: Proximitor Sensor (Non-contact, gap-to-voltage)
Series: 7200 Series
Measurement: Shaft displacement/vibration, Keyphasor signals
Probe Tip Diameter: 5 mm
Linear Range: 0.25 – 2 mm
Output Scale: ~200 mV/mil
Frequency Response: DC – 10 kHz
Power Supply: ‑24 V DC
Operating Temperature: –35 °C to +177 °C
Weight: 0.24 kg
Dimensions: 8 × 2.8 × 6 cm

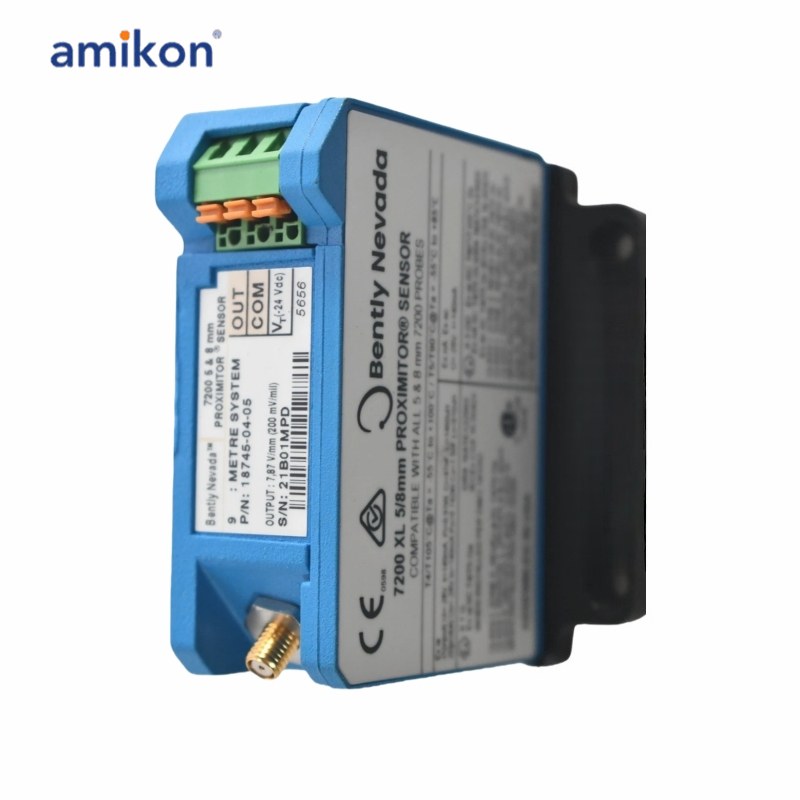

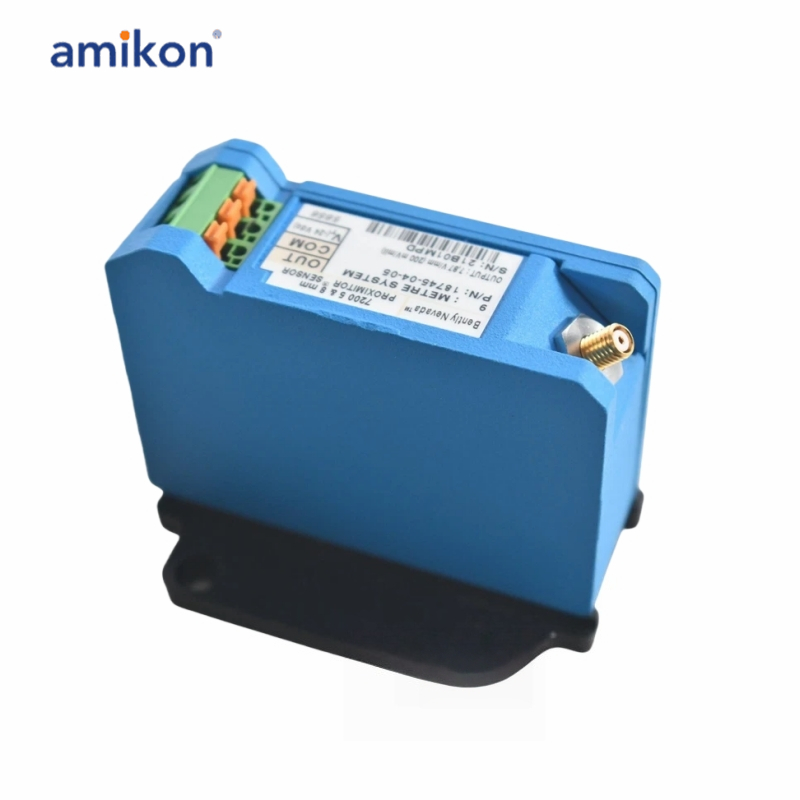

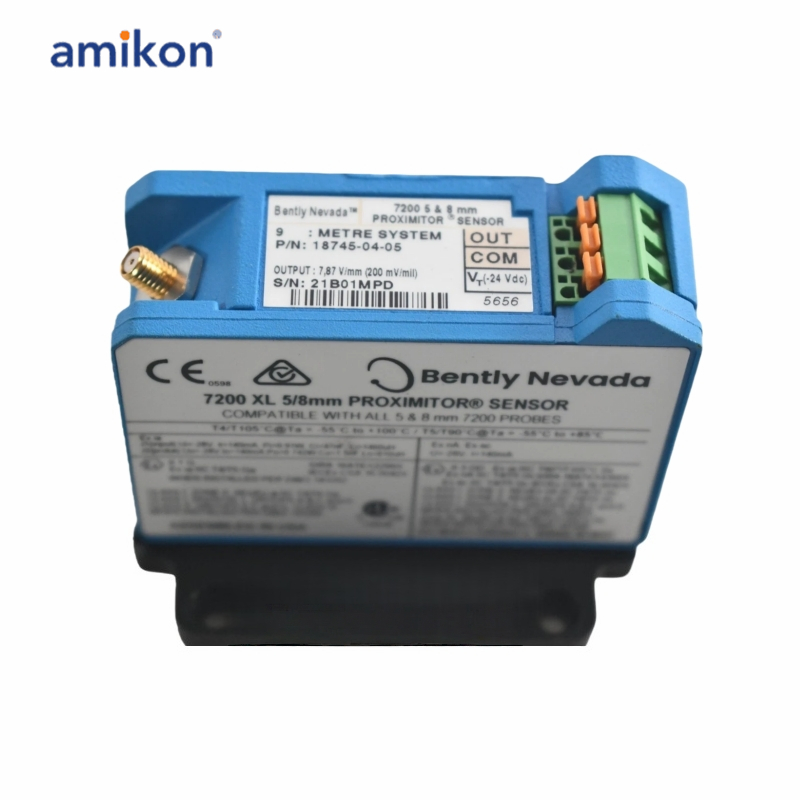

The Bently Nevada 18745-04-05 Proximitor Sensor is a high‑precision, non‑contact “gap‑to‑voltage” transducer designed for machinery condition monitoring and protection in rotating equipment applications. It forms part of the 7200 Series proximity transducer system from Bently Nevada, and is used to measure static and dynamic distances (displacement/vibration) between a probe tip and a target (shaft, rotor, sleeve or similar). Typical applications include turbines, compressors, pumps, motors and generators under critical or continuous‑monitoring regimes.
This unit provides reliable output compatible with monitoring systems, enabling early detection of vibration, shaft movement, thrust position, or phase reference signals. It is suitable for installations where traditional contact sensors are unsuitable or less reliable, offering long term rugged industrial performance.
