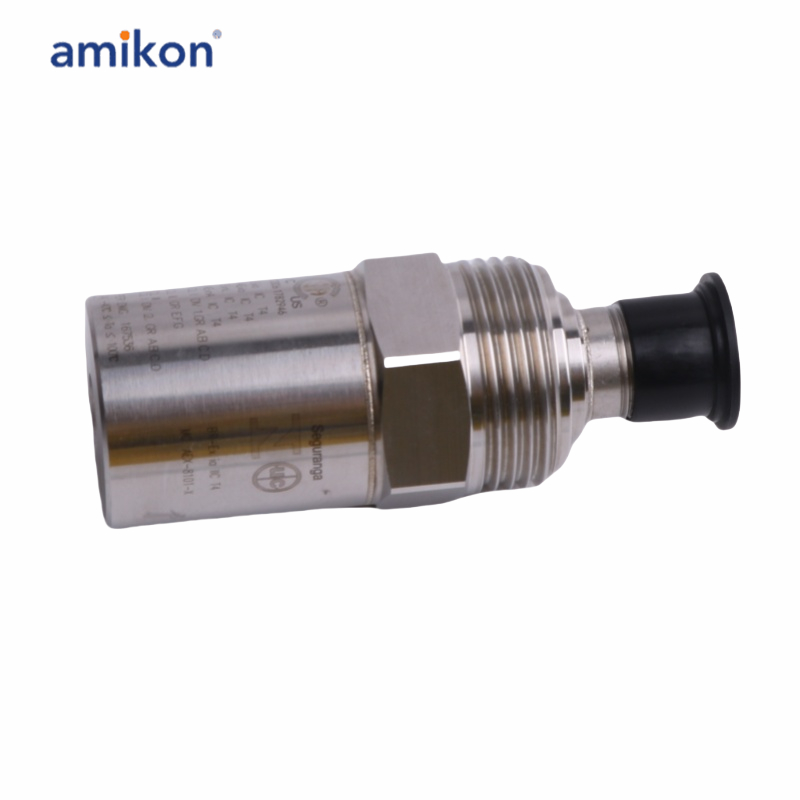

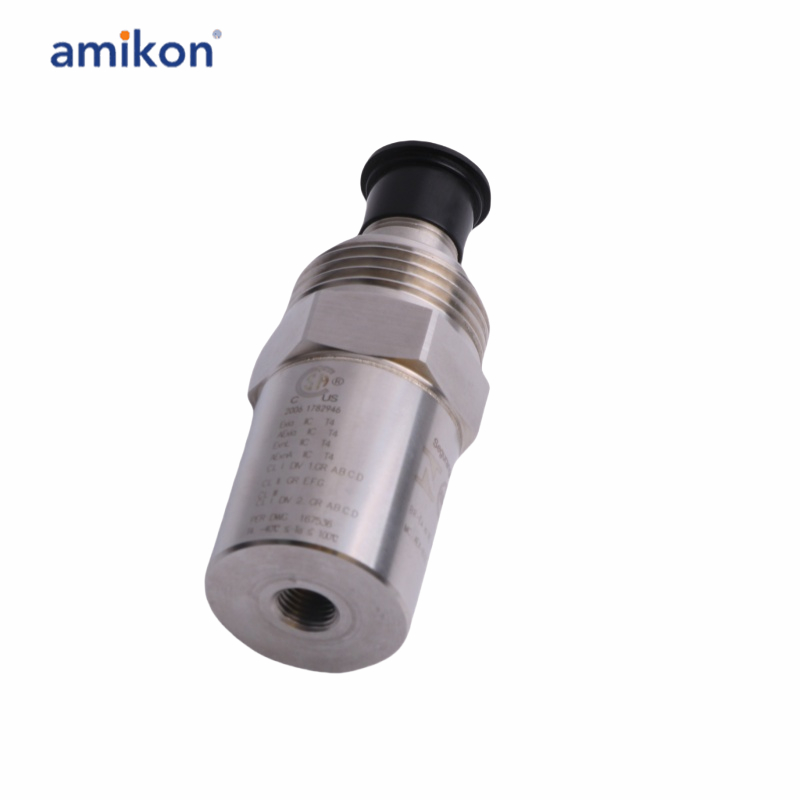

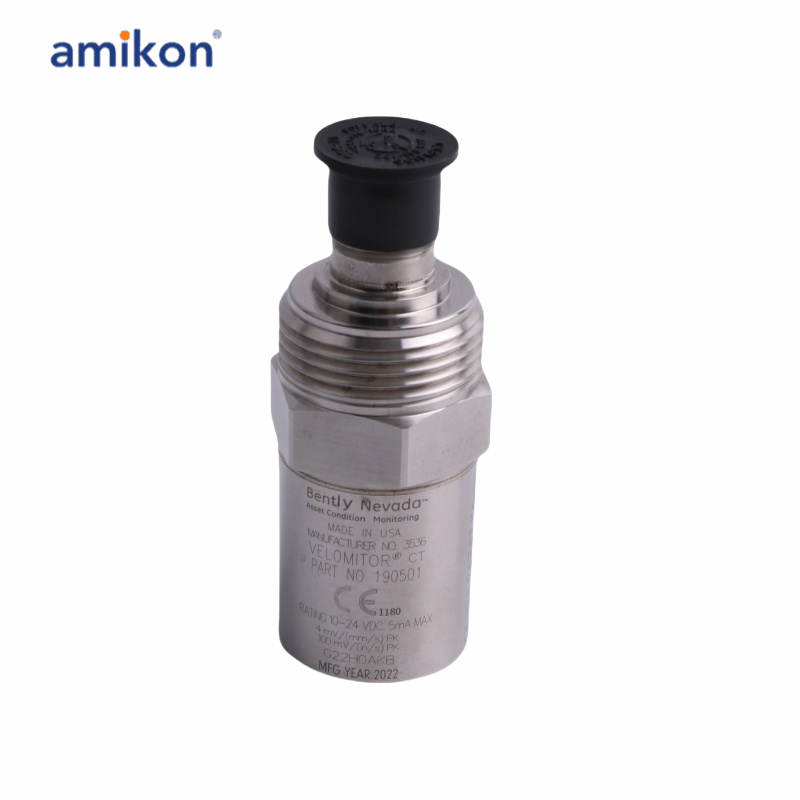

Model Number: 190501-19-00-04
Manufacturer: Bently Nevada
Type: Velomitor CT Transducer
Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB
Temperature Sensitivity: -8% to +5%
Dynamic Output Impedance: <400 Ω typical
Broadband Noise Floor (1.5 Hz to 1 kHz): 0.229 mm/s (0.009 in/s) pk
Transverse Response: Less than 5% of the axial sensitivity
Amplitude Linearity: ±2% to 63.5 mm/s pk (2.5 in/s pk)
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Storage Temperature: -40°C to +100°C (-40°F to +212°F)

The Velomitor CT Velocity Transducer is a low-frequencyversion of our standard Velomitor Piezo-velocity Sensor. itsdesign specifically measures casing vibration velocity oncooling tower and air-cooled heat-exchanger fanassemblies that operate at or above 90 rpm (100 to 300 rpmtypical).
The Velomitor CT Transducer can measure vibrationamplitudes at these frequencies as well as the vibrationfrequencies generated by the fan motor and speed reducer.
