Product Information

A：Probe with Connector

3300 XL 8 mm (With Approval Option)

B：Probe Cable Length

0.5 m (20 in)

C：Standoff Adapter (Option C Dimension)

Maximum Length：10.5 in (≈13 mm)

D：Probe Penetration (Option D Dimension)

Minimum Length：10.5 in

E：Fittings

• One 3/4-14 NPT Plug

• One 3/4-14 to 1/2-14 NPT Reducer

• One Cable Seal Grip with Grommets for Cable Sizes:

- 1/8 to 3/16 in

- 1/4 to 5/16 in

- 5/16 to 3/8 in

F：Mounting Thread

3/4-14 NPT

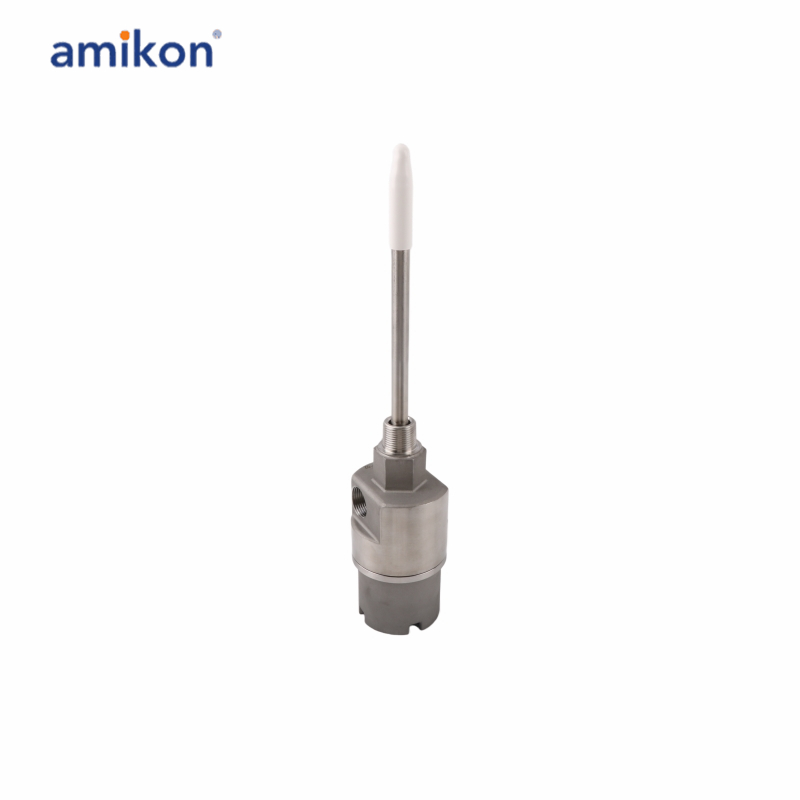

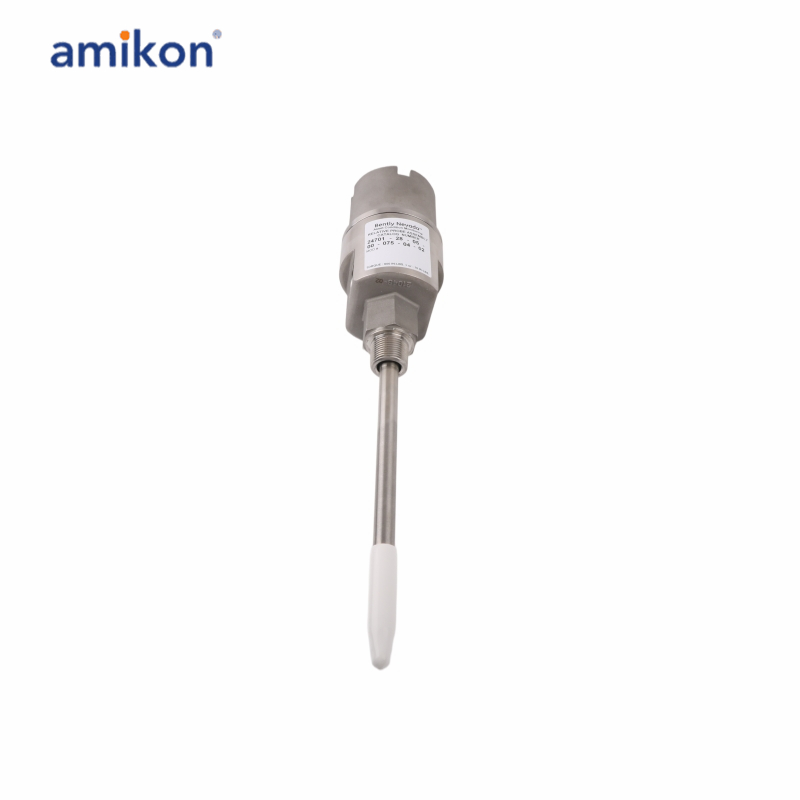

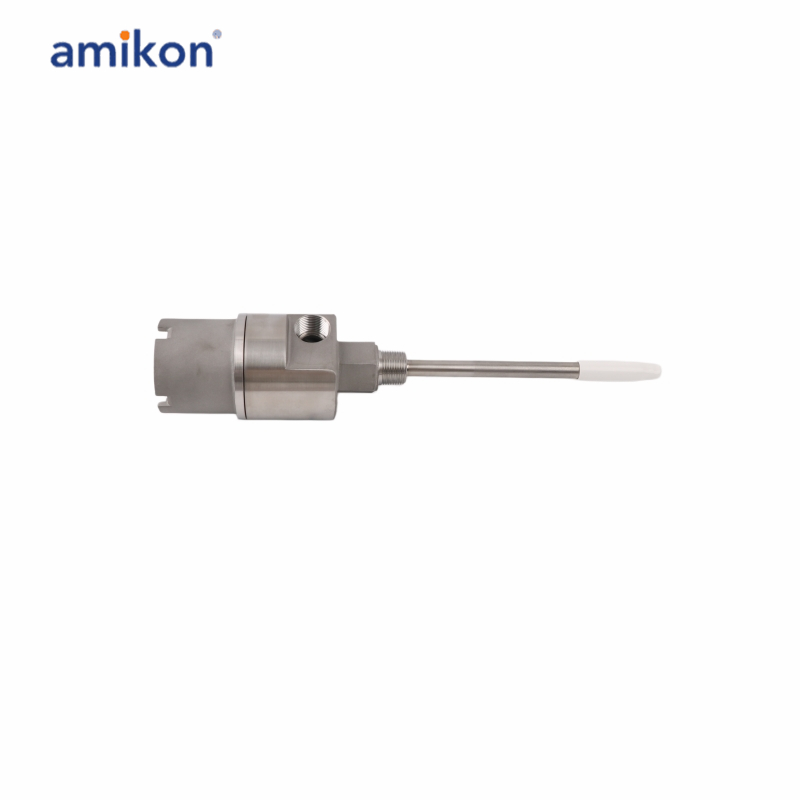

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies:
21000 aluminum probe housing assembly
24701 stainless steel probe housing assembly
The 21000, 24701, and 164818 Proximity Probe HousingAssemblies consist of the following parts:
A dome cover that screws into the body of the housing
Threaded ports for conduit connections
A probe sleeve of optional length.
O-rings
A reverse mount proximity probe
Athread seal
Optional conduit fittings
An optional standoff adapter

Frequently asked questions：

Q1: What type of probe is included in this configuration?
A: This configuration includes a 3300 XL 8 mm probe with approvals, suitable for use in hazardous and industrial environments.
Q2: What is the 24701-28-05-05-105-03-02 probe cable length?
A: The 24701-28-05-05-105-03-02 probe is equipped with a 0.5 m (20 inches) cable, ideal for short-distance installations.
Q3: What is the 24701-28-05-05-105-03-02 standoff adapter specification?
A: The 24701-28-05-05-105-03-02 maximum standoff adapter length is 10.5 inches (≈13 mm), allowing flexible mounting configurations. (Note: value may depend on specific option selection.)
Q4: What is the 24701-28-05-05-105-03-02 probe penetration length?
A: The 24701-28-05-05-105-03-02 minimum probe penetration length is 10.5 inches, ensuring proper measurement reach in machinery.
Q5: What is the 24701-28-05-05-105-03-02 mounting thread type?
A: The 24701-28-05-05-105-03-02 probe uses a 3/4-14 NPT mounting thread, suitable for standard industrial installations.
