Model Number	24701-28-05-65-105-03-02
A: Probe with Connector	28 – 3300 XL 8mm, with approval option
B: Probe Cable Length	05 – 20 in (0.5 m)
C: Standoff Adapter	65 – Maximum length 6.5 in
D: Probe Penetration	105 – Minimum length 10.5 in
E: Fittings	03 – One 3/4-14 NPT plug; One 3/4-14 to 1/2-14 NPT reducer; One cable seal grip with grommets for 1/8–3/16, 1/4–5/16, 5/16–3/8 inches cable
F: Mounting Thread	02 – 3/4-14 NPT

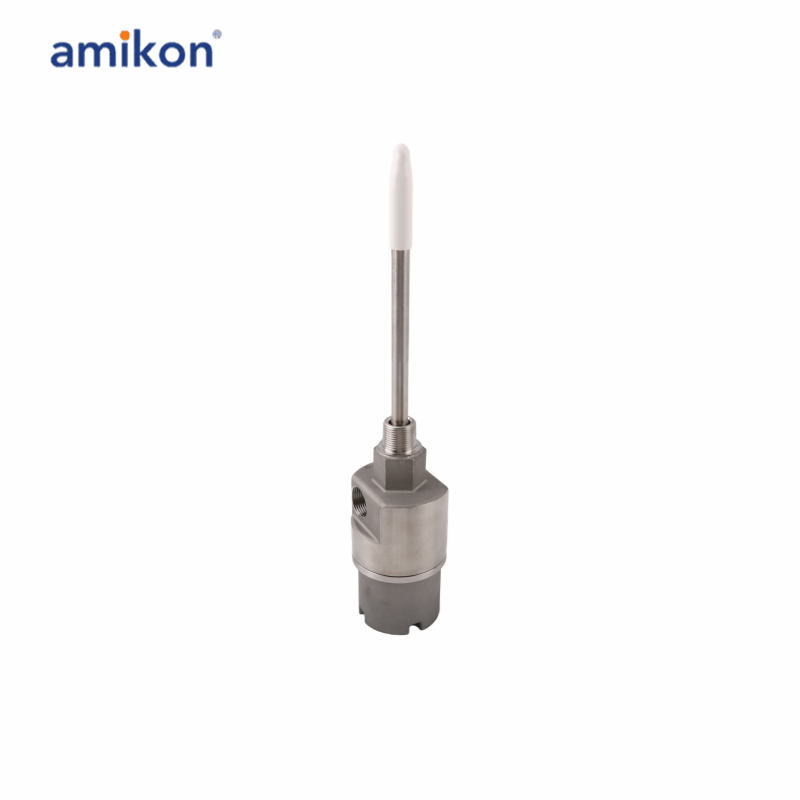

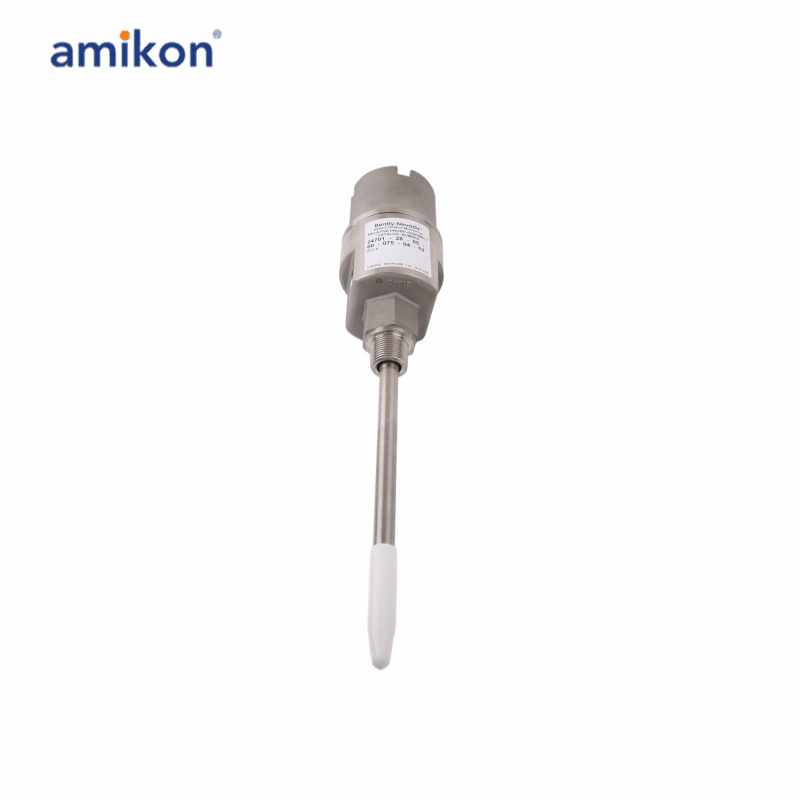

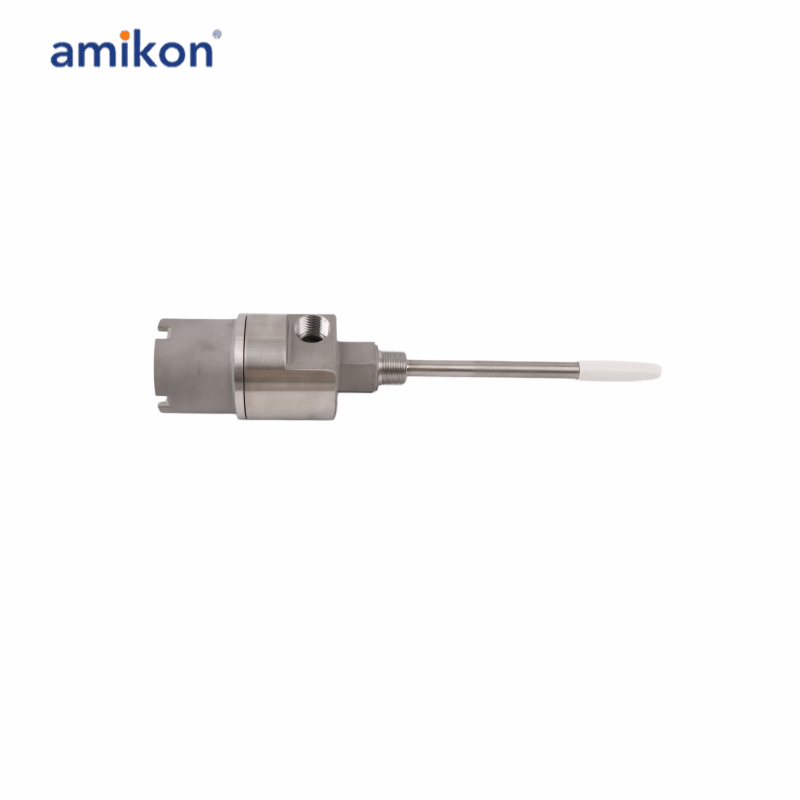

The 21000, 24701, and 164818 Proximity Probe HousingAssemblies consist of the following parts:
A dome cover that screws into the body of the housing
Threaded ports for conduit connections
A probe sleeve of optional lengthO-rings
A reverse mount proximity probe
A thread seal
Optional conduit fittings
An optional standoff adapter

Frequently asked questions：

Q1: What is the 24701-28-05-65-105-03-02?
A1: The 24701-28-05-65-105-03-02 is a proximity probe housing assembly designed to protect and mount vibration probes used in rotating machinery monitoring systems.
Q2: What probe type is included in this assembly?
A2: The assembly includes a 3300 XL 8 mm probe with connector, configured with the 28 probe option and approval option.
Q3: What is the probe cable length?
A3: The probe cable length is 20 inches (0.5 meters), specified by option 05.
Q4: What is the standoff adapter length?
A4: The standoff adapter option (65) provides a maximum length of 6.5 inches.
Q5: What is the probe penetration length?
A5: The probe penetration option (105) specifies a minimum length of 10.5 inches.

Product Applications

Oil and gas: Used for monitoring shaft vibration and displacement of compressors, pumps and turbines.
Electricity: Monitoring the bearing vibration of power generation units.
Petrochemical and chemical industry: Protecting probes from adverse production environments (corrosion, high temperature, physical impact).

Core advantage
API 670 Compliance: Compliant with the American Petroleum Institute (API) 670 standard, which is the standard configuration for industrial rotating equipment monitoring.
Explosion-proof Certification: Equipped with explosion-proof certifications such as CSA, suitable for hazardous areas in North America and globally.
Maintenance Convenience: With a dome cover design, it allows for quick access to internal probes and cables without the need for downtime.
