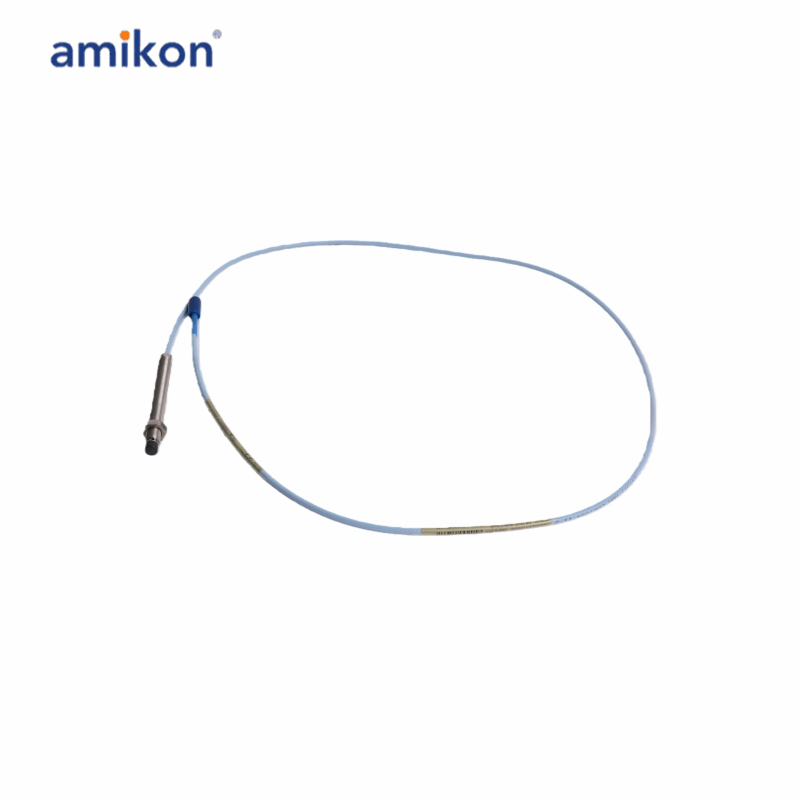

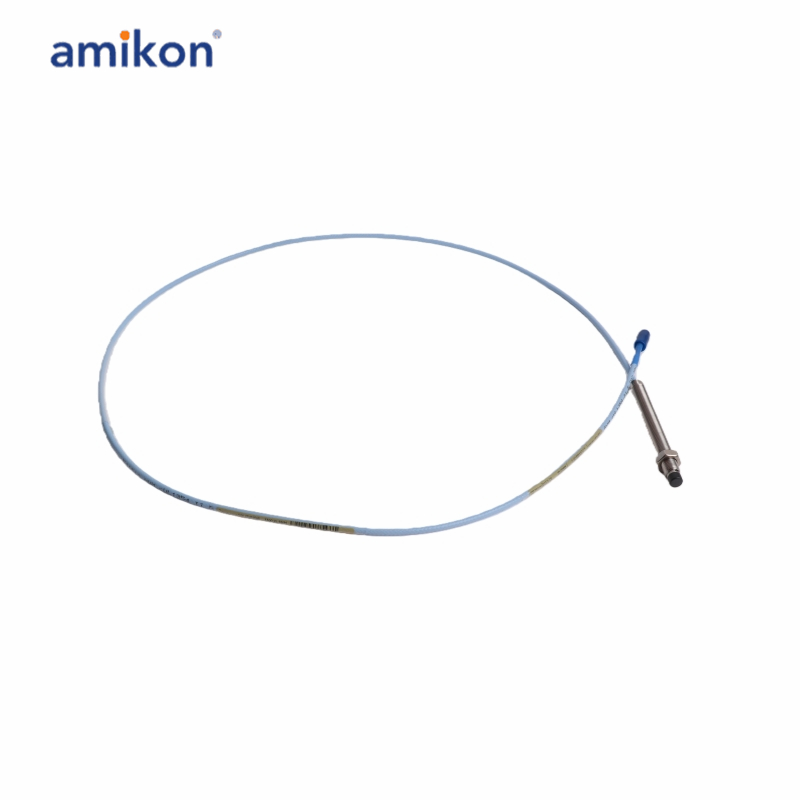

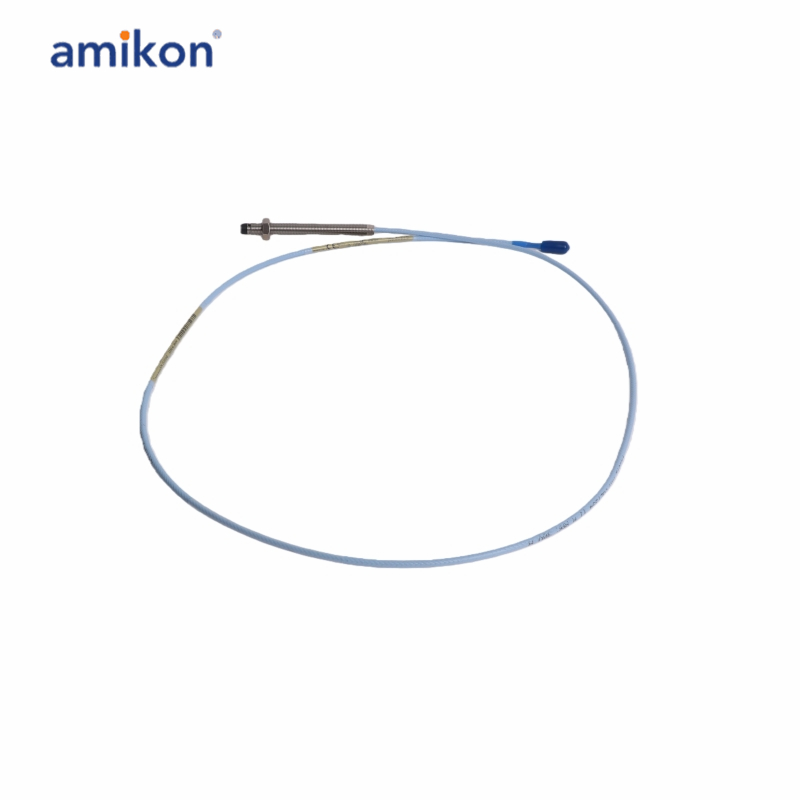

Bently Nevada 330101-00-59-15-02-05 Proximity Probes

Brand Name: Bently Nevada
Model Number:330101-00-59-15-02-05
A: Unthreaded Length Option
Minimum unthreaded length: 0 in.
B: Overall Case Length Option
Minimum case length: 5.9 in.
C: Total Length Option
15 1.5 meter (4.9 feet)
D: Connector and Cable-Type Option
02 Miniature coaxial ClickLoc connector, standard cable
E: Agency Approval Option
05 CSA, ATEX, IECEx  Approvals

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently asked questions：

Q1: What is the Bently Nevada 330101-00-59-15-02-05?
A: The Bently Nevada 330101-00-59-15-02-05 is a 3300 XL 8 mm Proximity Probe used for non-contact vibration and shaft position monitoring in rotating machinery such as turbines, motors, and compressors.
Q2: What is the overall case length of the 330101-00-59-15-02-05 probe?
A: The minimum case length is 5.9 inches, according to the B option (Overall Case Length Option) for this model configuration.
Q3: What is the total cable length of this proximity probe?
A: Option 15 indicates a total probe length of 1.5 meters (4.9 feet).
Q4:Can I contact you on Email?
A: Yes, absolutely. You can contact me online, or email me directly at sales7@amikon.cn for any inquiries.

Key Features
Measurement Range: Capable of a 2 mm (80 mils) linear sensing range.
Operating Temperature: Designed for harsh environments with a probe temperature range of -34°C to +177°C (-29°F to +351°F).
Robust Construction: Features a Polyphenylene sulfide (PPS) probe tip and AISI 303/304 stainless steel case.
Interchangeability: Part of the 3300 XL system, allowing the probe, extension cable, and Proximitor sensor to be replaced without individual bench calibration.
