Product Specifications

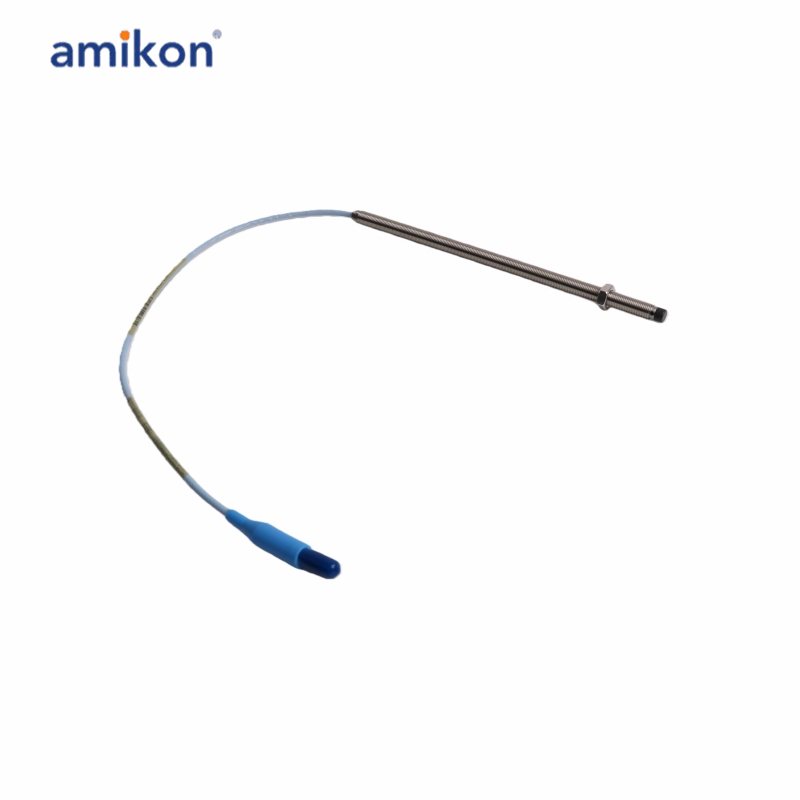

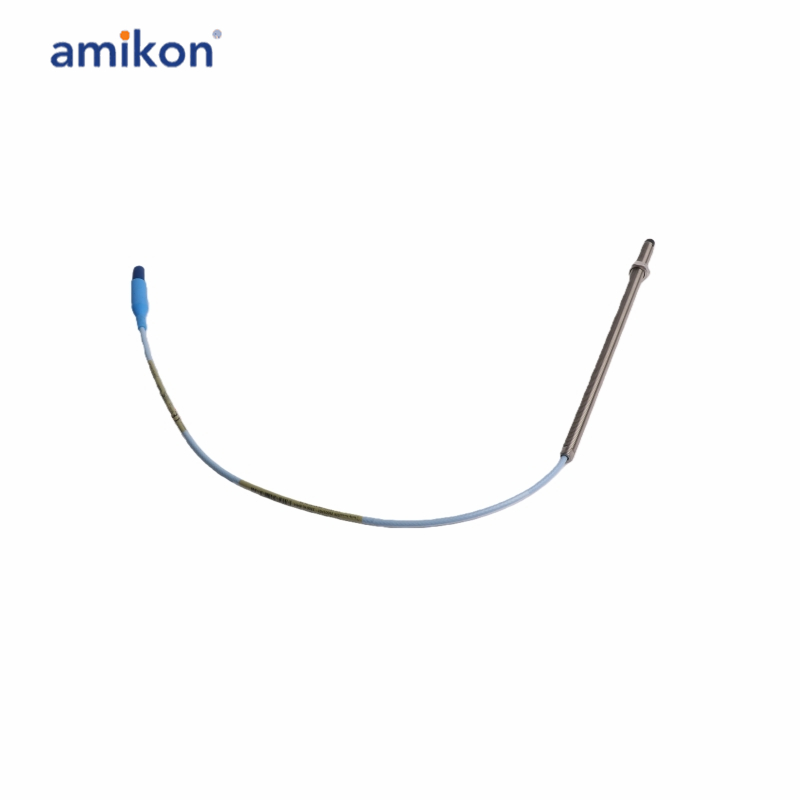

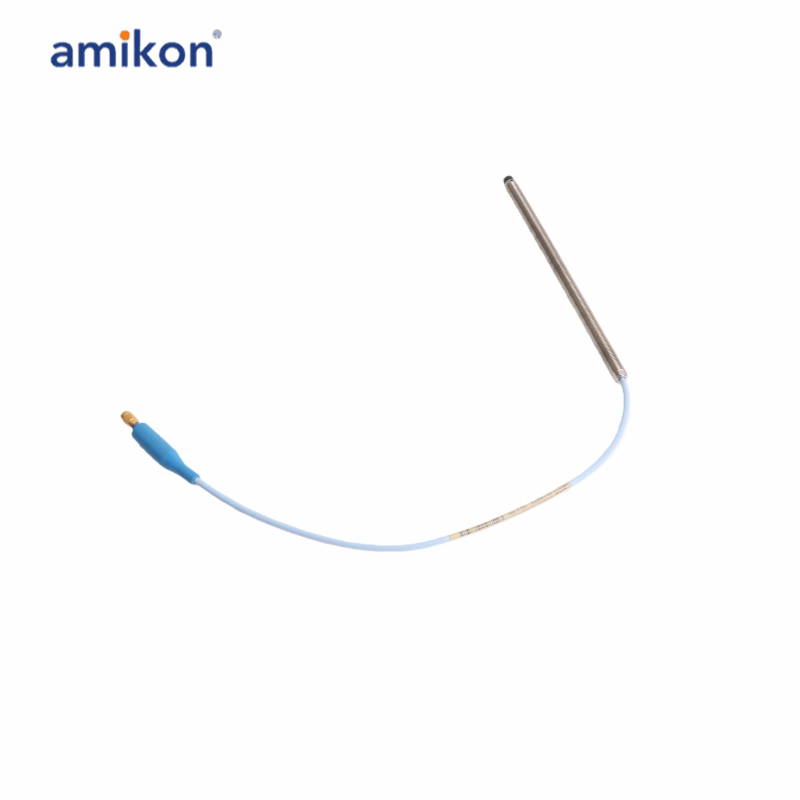

Model Number	330101-04-30-05-01-05
Unthreaded Length ( 04)	0.4 in
Overall Case Length ( 30)	3.0 in
Total Length ( 05)	0.5 meter (1.6 feet)
Connector & Cable Type ( 01)	Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval ( 05)	CSA, ATEX, IECEx Approvals

The system provides an output voltage that is directly proportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchang eability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently asked questions：

Q : What does the 330101-04-30-05-01-05 base model number "330101" signify?
It designates a 3300 XL 8mm proximity probe with standard English threads (3/8-24 UNF).

Q : What does the "-04" option represent in this part number?
It means the probe case has an unthreaded length of 0.4 inches at the front tip.

Q : What is the Average Scale Factor (ASF) of this system?
The ASF is 7.87 V/mm (200 mV/mil) when connected to a matching 3300 XL Proximitor Sensor.

Q : What is the acceptable tolerance window for setting the Gap Voltage?
The acceptable field installation window is between -9.0 Vdc and -11.0 Vdc.

Product Applications

Oil, Natural Gas and Refining
Thermal and Nuclear Power Generation
Metallurgy and Iron & Steel
Chemicals and Fertilizers
Water Conservancy and Cement

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
