Product Specifications

Part Number	330102-00-30-10-02-05
Unthreaded Length 00	0.0 in
Overall Case Length 30	3.0 in
Total Length 10	1.0 meter (3.3 feet)
Connector 02	Miniature coaxial ClickLoc connector, standard cable
Agency Approval 05	CSA, ATEX, IECEx Approvals

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently asked questions：

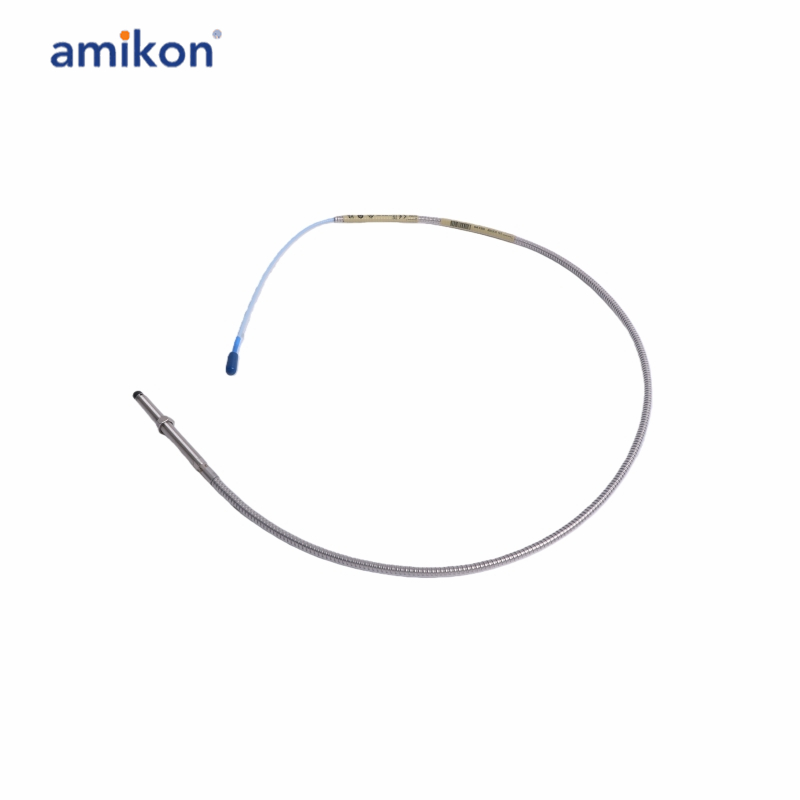

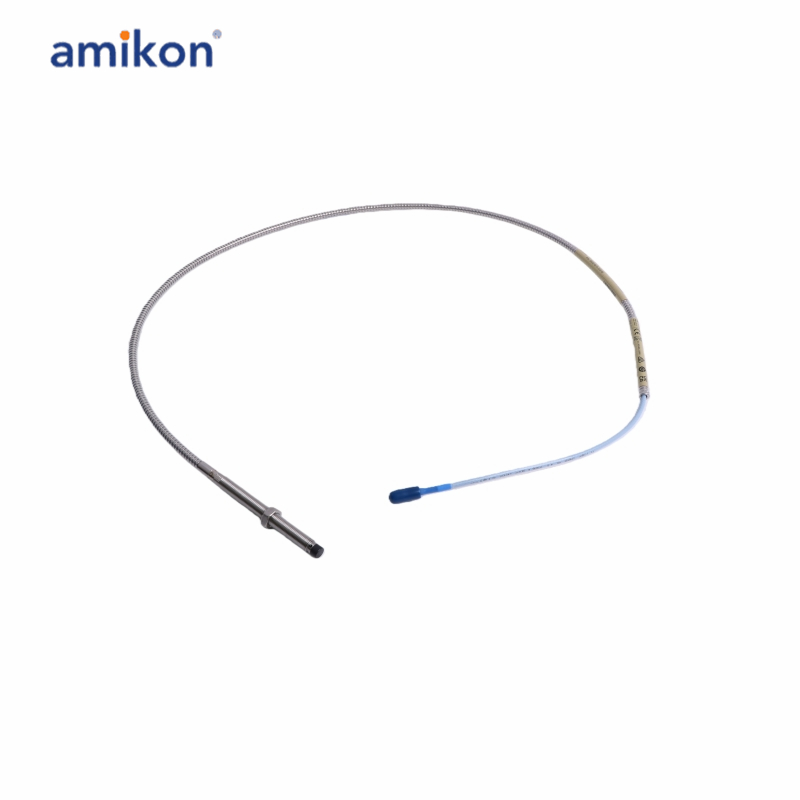

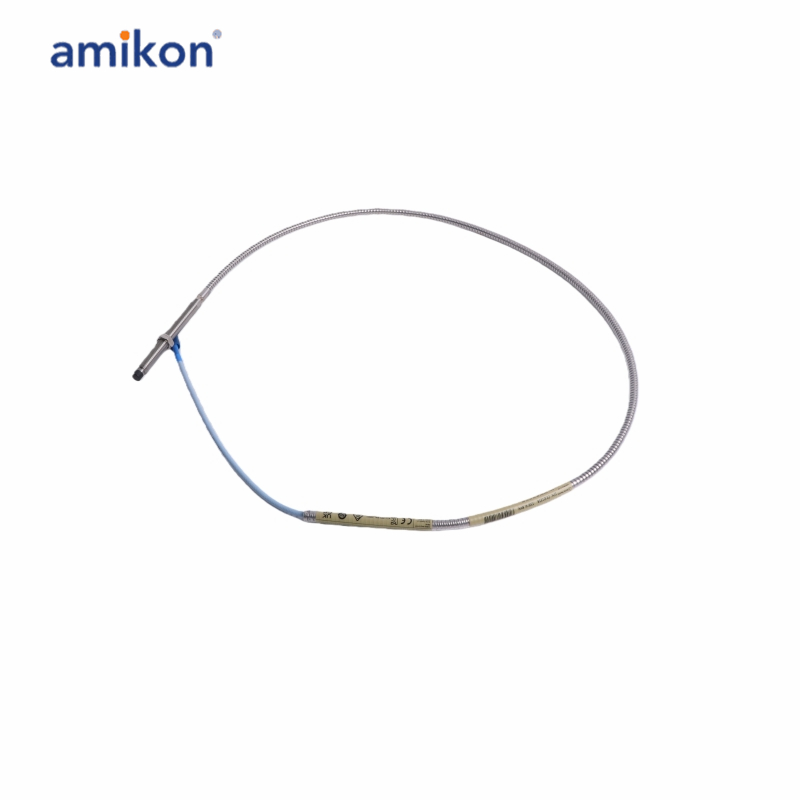

Q1: What is the Bently Nevada 330102-00-30-10-02-05 Proximity Probe used for?
A1: The 330102-00-30-10-02-05 Proximity Probe is designed for non-contact measurement of shaft vibration, shaft position, displacement, and runout in rotating machinery monitoring and protection systems.

Q2: What is the overall case length of this 330102-00-30-10-02-05 probe?
A2: Overall Case Length Option 30 corresponds to 3.0 inches (76.2 mm).

Q3: What is the total length of the 330102-00-30-10-02-05 probe cable?
A3: Total Length Option 10 corresponds to 1.0 meter (3.3 feet).

Q4: What type of connector does this 330102-00-30-10-02-05 probe use?
A4: Connector and Cable-Type Option 02 includes a miniature coaxial ClickLoc connector with a standard cable, providing secure and reliable connections.

Q5: What is the 330102-00-30-10-02-05 extension cable capacitance?
A5: The 330102-00-30-10-02-05 typical extension cable capacitance is 69.9 pF/m (21.3 pF/ft), helping maintain signal integrity throughout the transducer system.

Product Applications

Power Industry
Oil and Gas Industry
Chemical and Steel Industry

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
