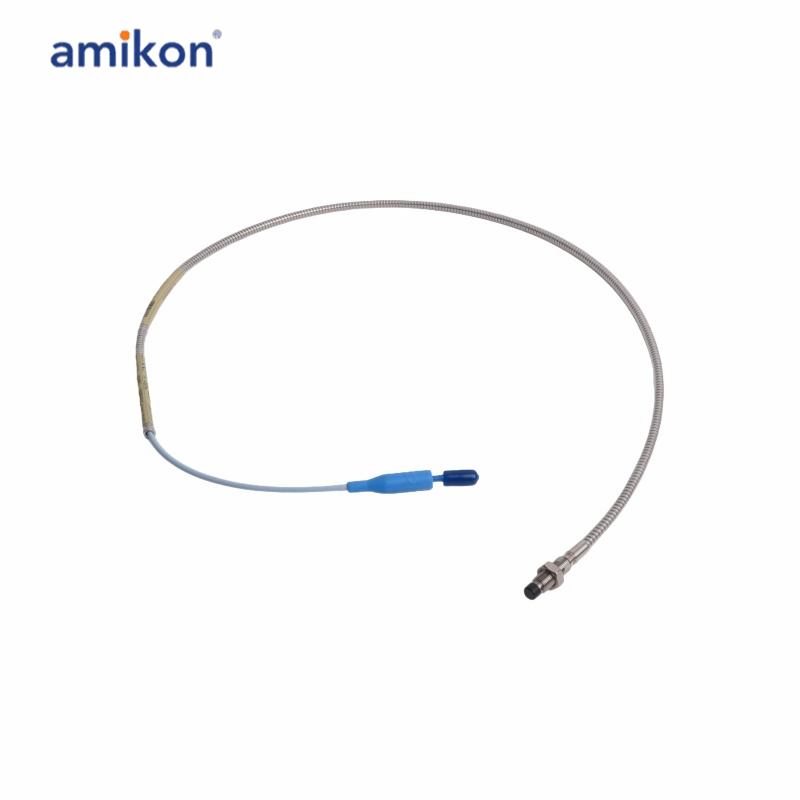

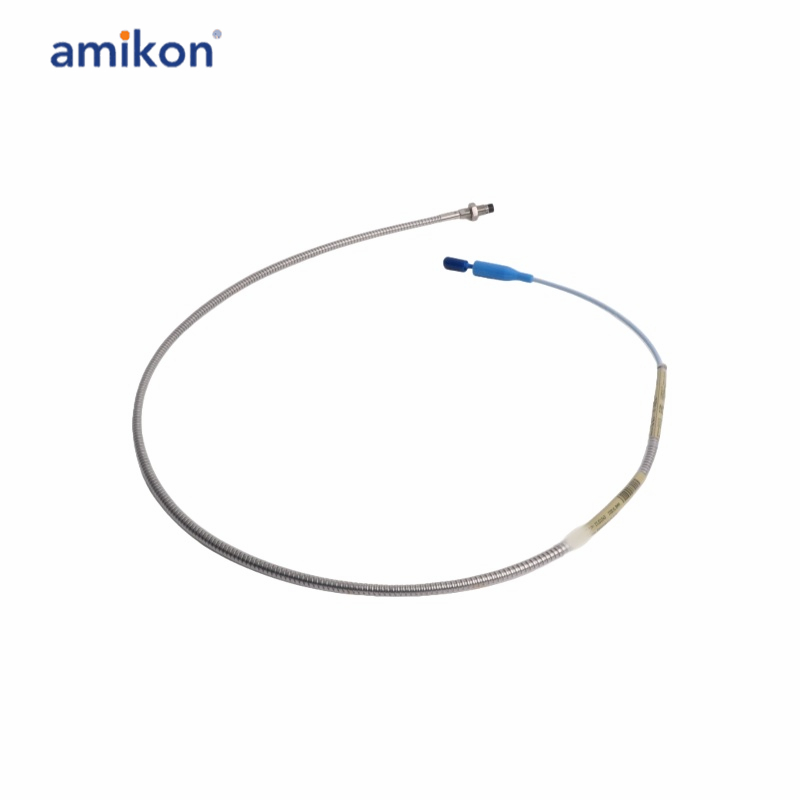

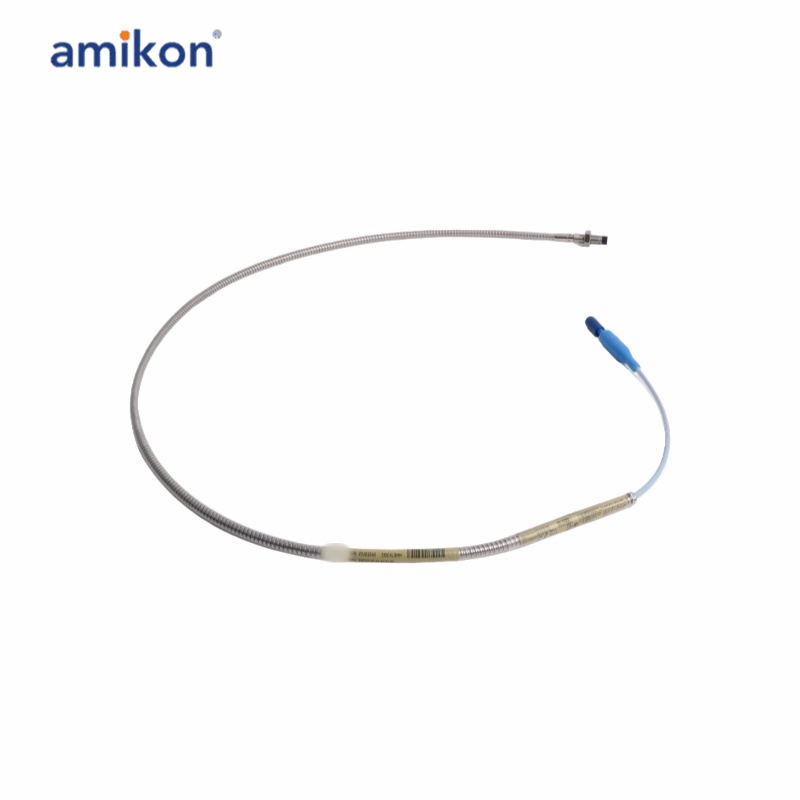

Product Number:330102-00-40-10-11-05

Power Requirement: -17.5 VDC to -26 VDC

Supply Sensitivity: < 2 mV

Output Resistance: 50 Ω

Recommended Gap Setting: -9 VDC

Incremental Scale Factor (ISF):

Standard 5 or 1 meter system: 7.87 V/mm (200 mV/mil) ±5%

Standard 9 meter system: 7.87 V/mm (200 mV/mil) ±6.5%

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)

Linear Range: 2 mm (80 mils)

The system provides an output voltage that is directly proportional to the,distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor* reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
