Output resistance：50 Ω
Recommended gap setting：-9 V DC
Standard 5 or 1 meter system：7.87 V/mm (200 mV/mil) ±5%
Standard 9 meter system：7.87 V/mm (200 mV/mil) ±6.5%
Extension cable capacitance：69.9 pF/m (21.3 pF/ft) typical
Field wiring：0.2–1.5 mm² (16–24 AWG)
Linear range：2 mm (80 mils)
Extended temperature range (ETR)：7.87 V/mm (200 mV/mil) ±6.5%
Minimum：50.8 mm (2 in)
Recommended minimum：76.2 mm (3 in)

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum institute's (APl)670 Standard for mechanical configuration, linear range.accuracy,and temperature stability.All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

sales7@amikon.cn

86-18965423501

AMKPLC

1）Original packing with cartons.
2）100% make sure the best quality!
3）We can ship the goods to worldwide.

Recent Hot Models
330190-045-00-00	330104-01-14-05-01-CN	330101-00-20-20-02-00
330104-02-13-10-01-00	330104-01-17-05-01-CN	330101-00-66-20-02-00
330104-02-15-10-01-00	330902-00-10-10-01-00	330101-00-75-20-02-00
330102-00-43-05-02-05	330980-50-00	330101-00-11-20-02-00
330102-00-79-05-02-05	330101-00-66-20-02-05	330101-00-43-15-02-00
330908-00-15-05-02-00	330101-00-75-20-02-05	330101-00-67-20-02-00
330130-085-13-05	330101-00-13-15-02-05	330101-00-61-15-02-00
330103-00-03-10-02-CN	330101-00-67-20-02-05	330101-00-28-20-02-00
330104-00-17-90-02-CN	330101-00-28-20-02-05	330101-00-77-20-02-00
330104-00-13-90-02-CN	330101-00-77-20-02-05	330101-00-84-20-02-00
330104-00-13-10-02-05	330101-00-84-20-02-05	330101-00-72-20-02-00
330881-28-20-040-03-02	330101-00-72-20-02-05	330101-48-71-20-02-00
330901-10-20-10-02-05	330101-48-71-20-02-05	330101-00-77-15-02-00
330101-00-70-10-02-00	330101-00-77-15-02-05	330101-00-36-15-02-05
330500-05-01	330103-00-10-15-02-05	330901-00-09-05-02-00
31000-16-10-00-085-03-02	330103-00-06-15-02-05	21504-16-32-10-62
31000-28-10-00-235-00-02	330101-00-35-05-02-05	21504-16-28-10-02
330102-00-25-10-02-CN	330102-00-35-05-02-05	31000-16-05-00-65-03-02
330102-03-25-10-02-05	190501-06-00-00	330705-02-18-90-02-00
330880-28-35-017-00-02	330104-05-10-50-02-RU	330105-02-12-90-02-05

Believe Us, We Are The Best Choice
1.Reduce maintenance costs.
2.Guaranteed availability of automation replacement parts.
3.24/7 rapid response.
4.Ready stock, fast delivery.
5.100% quality guaranteed.
6.Exceptional service, competitive pricing.
7.Industry veterans, proven reliability.

Frequently asked questions

Q1:what is your terms of payment?
A1:100%T/T before shipping. If large quantity,could negotiate.
If you have another question,pls feel free to contact us.
Q2: How do you ensure the quality of the spare parts?
A2:All our parts go through a rigorous quality inspection process to ensure reliability and compatibility with your systems. Customer satisfaction and safety are our top priorities.
Q3: How do you ensure spare parts availability?
A3:We maintain adequate spare parts inventory and operate distribution centers in the UK and the US to ensure timely delivery to customers worldwide.
Q4: What makes your service professional?
A4:Amikon with 20 years of expertise in manufacturing. Our experienced team provides efficient solutions to complex problems, leveraging deep industry knowledge.
Q5: How do you support customers with hard-to-find parts?
A5:We specialize in sourcing even the most difficult-to-find parts. Our goal is to connect customers worldwide through our extensive network and supply chain expertise.

Amikon sells new and surplus products and develops channels to purchase such products.

This site is not approved or endorsed by any of the listed manufacturers or trademarks.

Amikon is not an authorized distributor, dealer or representative of the products displayed on this site.

All product names, trademarks, brands and logos used on this site are the property of their respective owners.

The description, illustration or sale of products under these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

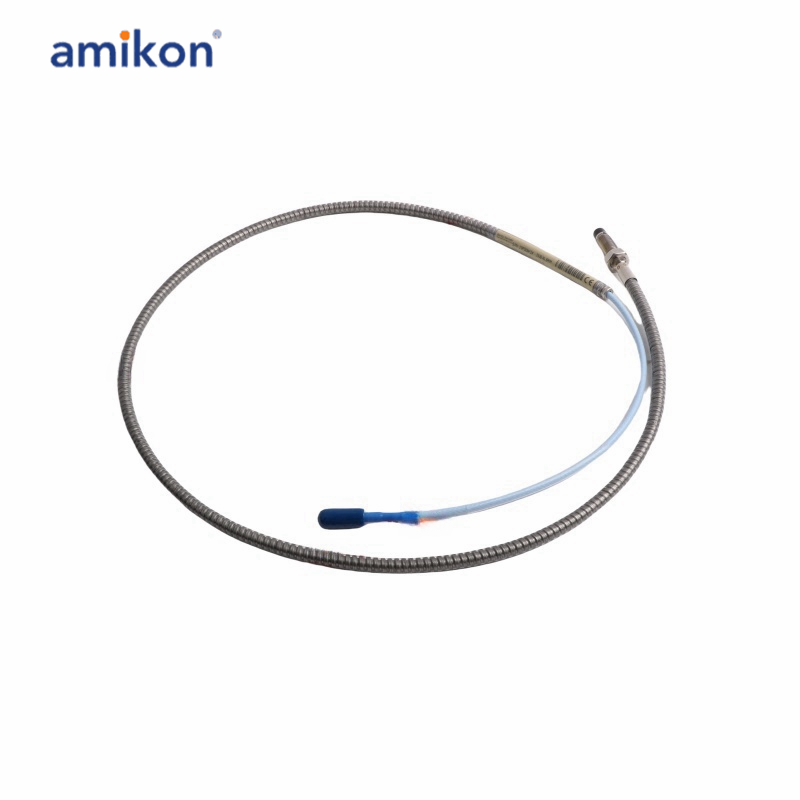

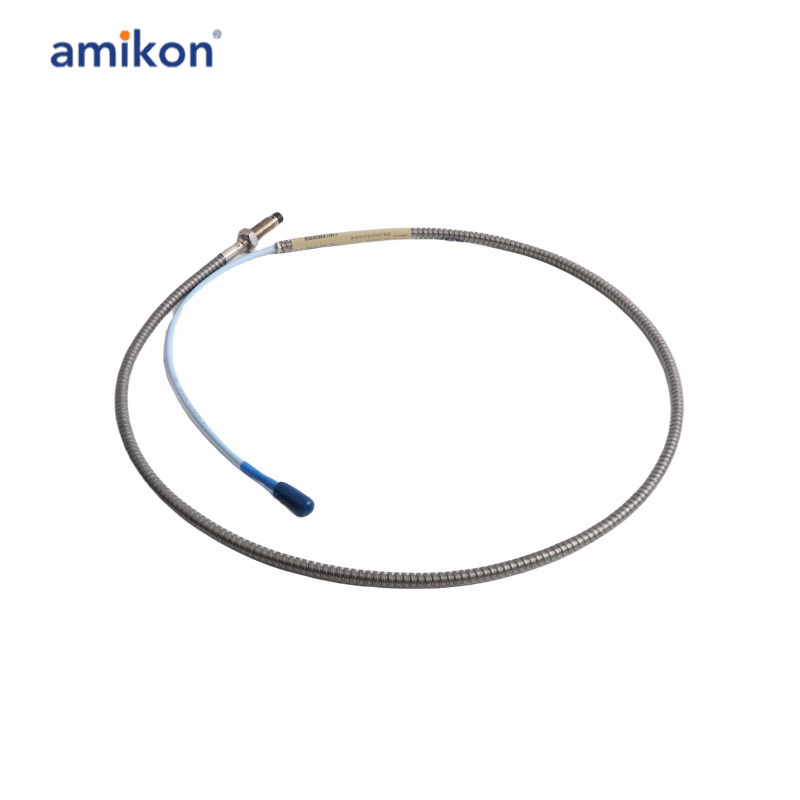

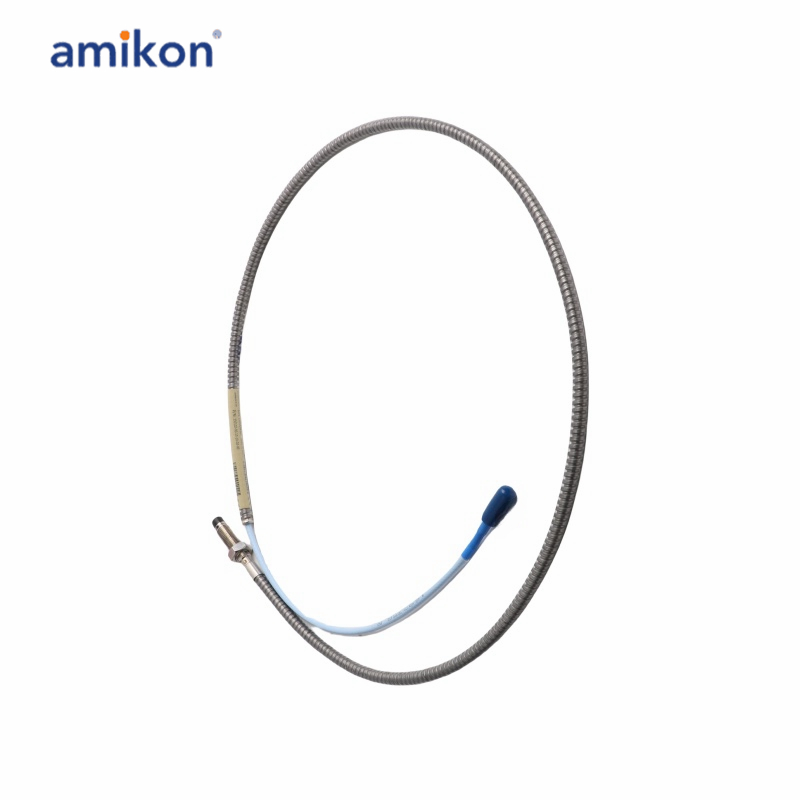

Subject : Bently Nevada 330102-00-43-05-02-05 Proximity Probes
