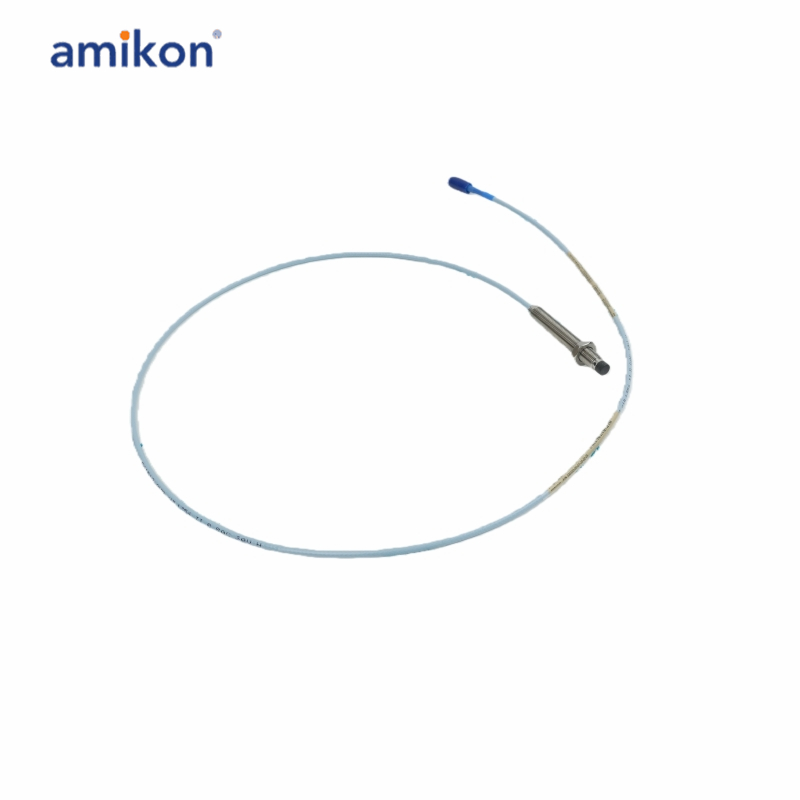

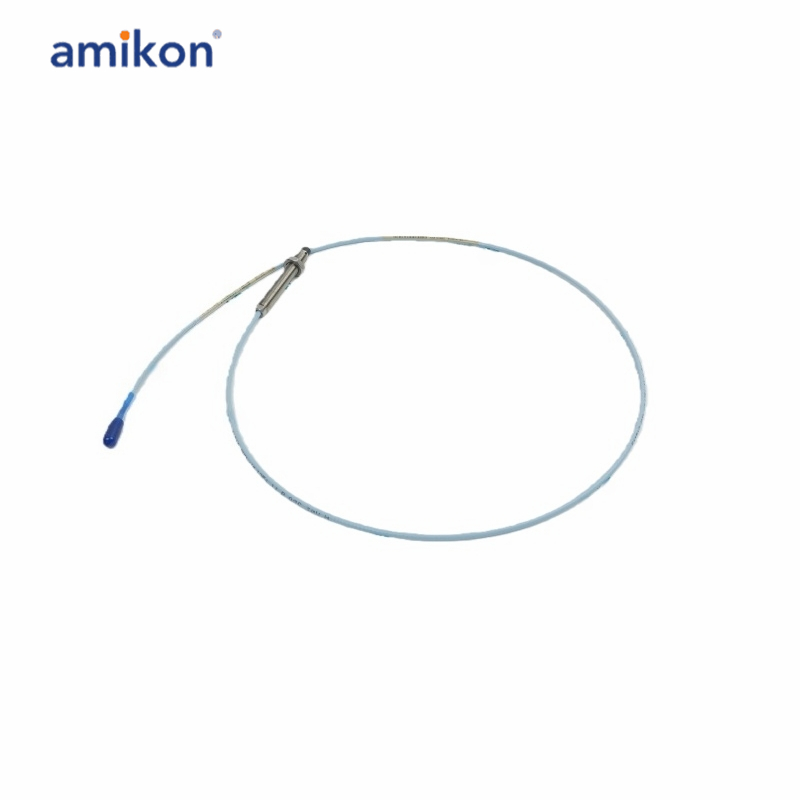

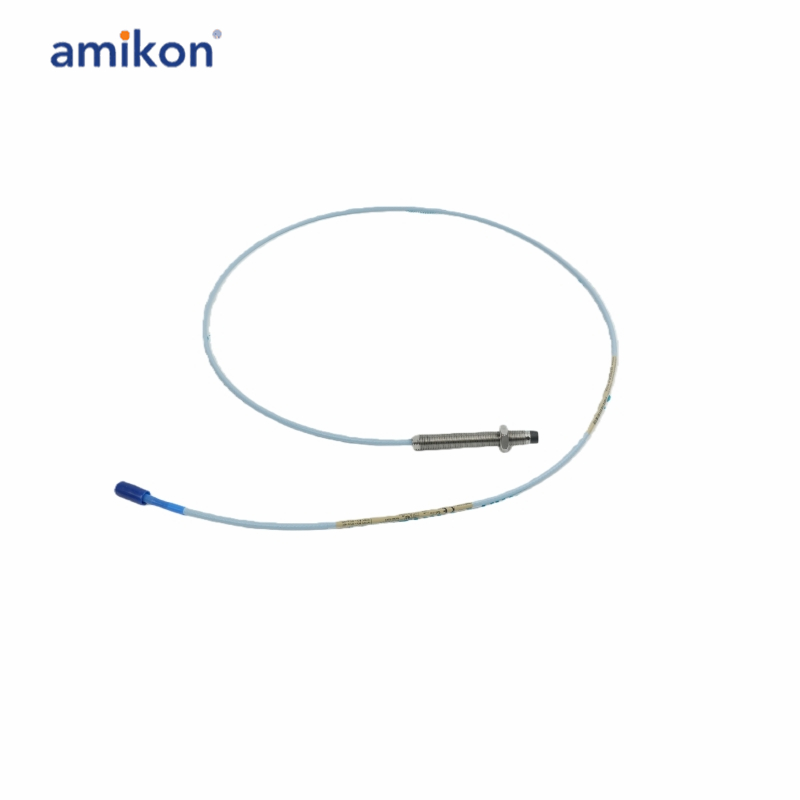

Bently Nevada 330103-00-02-05-02-05 Proximity Probes

Model Number: 330103-00-02-05-02-05
Series: Bently Nevada 3300 XL
Probe Type: Non-contact proximity probe
Thread Size: 3/8-24 UNF
Body Style: Straight
Cable Length: 5 meters (16.4 feet)
Connector Type: Miniature coaxial connector
Output Sensitivity: 200 mV/mil (7.87 mV/µm)
Linear Range: 80 mils (2 mm)
Recommended Gap Setting: 1.0 mm (40 mils)
Output Resistance: 50 Ω
DC Resistance (Center Conductor): 0.220 Ω/m (0.067 Ω/ft)

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

Q1: What type of sensing technology does the 330103-00-02-05-02-05 use?
A1: It uses eddy current sensing technology to detect the distance between the probe tip and a conductive target without physical contact.
Q2: What is the recommended gap setting for the probe?
A2: The recommended gap setting for radial vibration measurement is approximately –9 Vdc, corresponding to about 1.27 mm (50 mils).
Q3: What is the operating temperature range of the probe?
A3: The probe typically operates in a temperature range of –52°C to +100°C, depending on installation and cable configuration.

Product Applications

Power Generation
Oil & Gas Industry
Petrochemical Plants
Mining & Heavy Industry
Pulp & Paper Industry

Configuration Details
Unthreaded Length (00): According to QuickTime Online and Nexinstrument, this represents 0 mm of unthreaded length.
Overall Case Length (02): This indicates a case length of 20 mm.
Total Length (05): This designates a total length of 0.5 metres (1.6 feet).
Connector and Cable-Type (02): This specifies a miniature coaxial ClickLoc connector with standard cable.
Agency Approval (05): This option provides multiple approvals, including CSA, ATEX, and IECEx.
