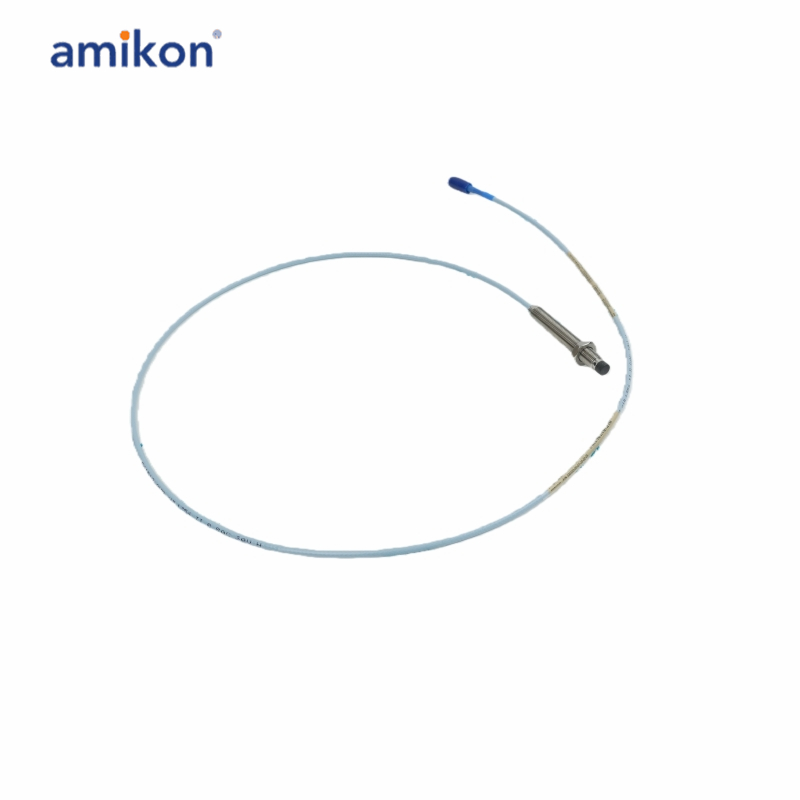

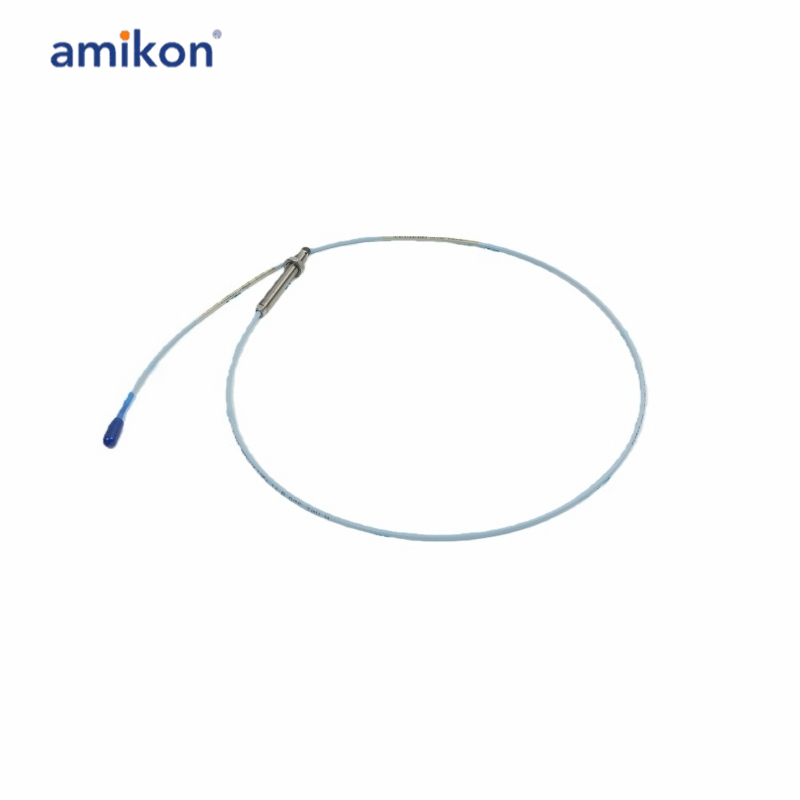

Bently Nevada 330103-00-09-20-02-00 3300 XL 8 mm Proximity Probes

Manufacturer：Bently Nevada
Model：330103-00-09-20-02-00
330103 3300 XL 8 mm Probe, M10 x 1 thread, without armor3
A: Unthreaded Length Option
Minimum unthreaded length: 0 mm
B: Overall Case Length Option
Minimum length: 90 mm
C: Total Length Option
20  2.0 metres (6.6 feet)
D: Connector and Cable-Type Option
02 Miniature coaxial ClickLocTM connector, standard cable
E: Agency Approval Option
0 0 Not required

The system provides an output voltage directly proportional to the distance betweenthe probe tip and the observed conductive surface. It is capable of both static(position) and dynamic (vibration) measurements, and is primarily used for vibrationand position measurement applications on fluid-film bearing machines, as well asKeyphasor@ and speed measurement applications2.
The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (APl) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and temperaturestability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitor@ Sensor without the need for individual component matching orbench calibration.

Frequently asked questions：

Q:Is this product brand new?
A:Yes, Bently Nevada 330103-00-09-20-02-00 is brand new, original, unused, and factory sealed
Q:Do you have it in stock?
A:Yes, right now we have Bently Nevada 330103-00-09-20-02-00 in stock ready for shipment, we can support video inspection.
Q:What payment mothod we used?
A:We usually use T/T (Telegraphic Transfer).
Q:Can I contact you on Email?
A: Yes, absolutely. You can contact me online, or email me directly at sales7@amikon.cn for any inquiries.

Product Applications
Petroleum refineries and oil refineries: Used for vibration monitoring of centrifugal compressors, pumps and turbines to prevent equipment failures that could lead to dangerous leaks.
Power plants: Monitor the bearing conditions of steam turbines, gas turbines and large power generation units.
Steel mills: Applied to heavy rotating equipment such as large blowers and tundish tilting mechanisms.
Paper mills and fertilizer plants: Monitor various high-speed rotating motors, fans and reciprocating compressors.

Core functions
Radial vibration measurement: Monitoring the oscillation amplitude of the shaft within the bearing.
Axial displacement monitoring: Measuring the front-back movement of the shaft during operation to prevent the rotor from colliding with stationary components.
Phase/Speed reference: As the Keyphasor (key phase) signal, providing speed and phase references.
