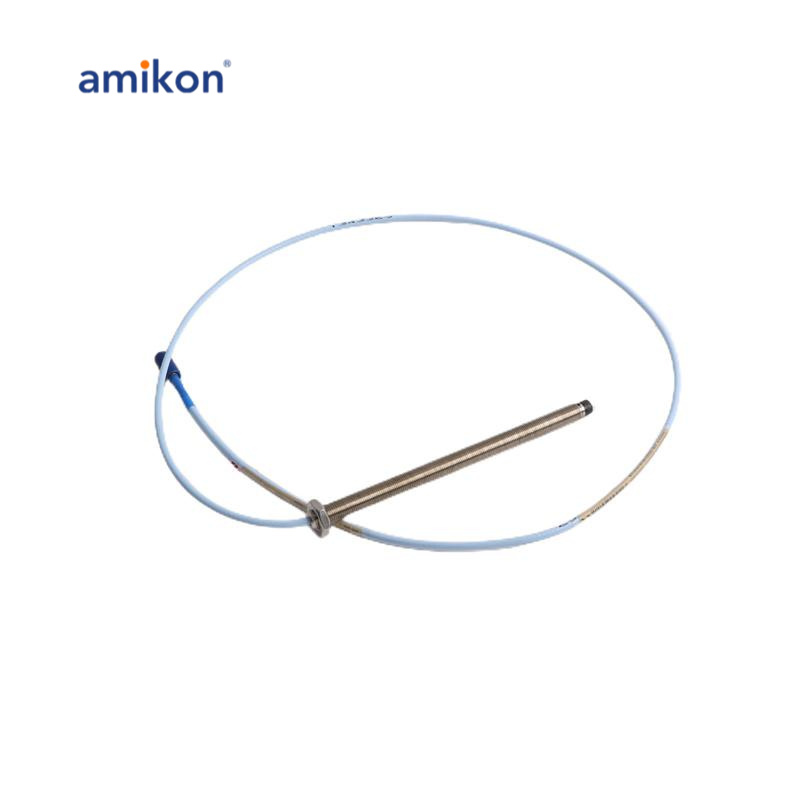

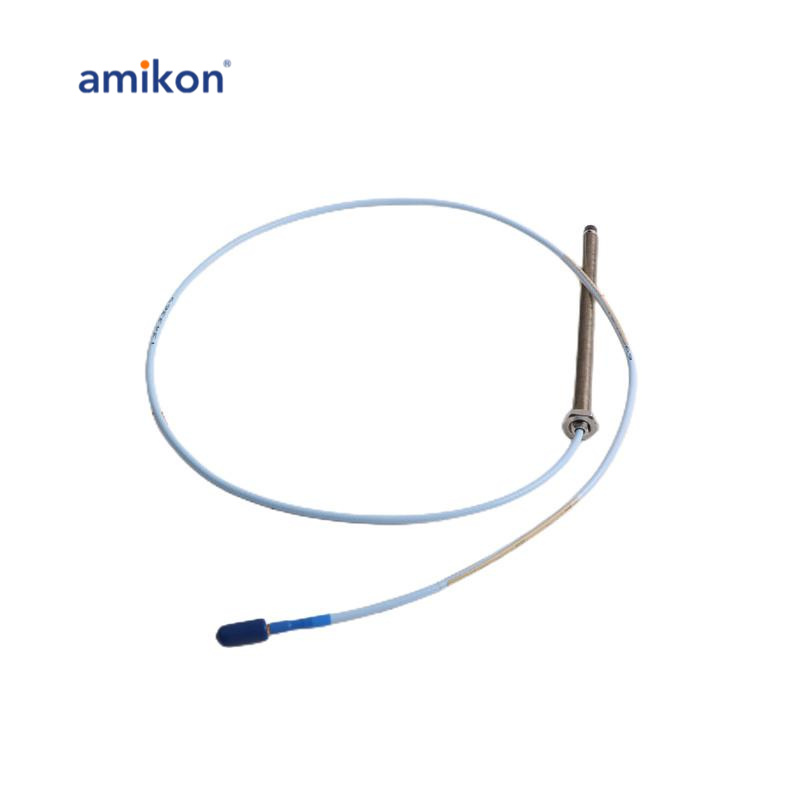

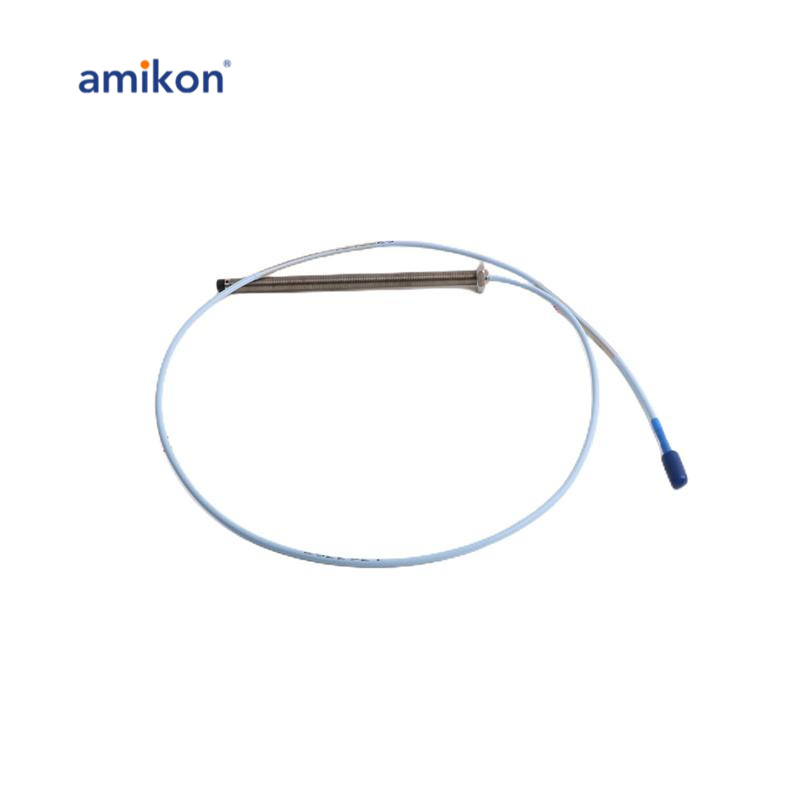

The 3300 XL 11 mm Proximity Transducer System consists of:
-3300 XL 11 mm probe
-3300 XL 11 mm extension cable
-3300 XL 11 mm Proximitor Sensor
The 330103-00-16-10-02-05 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
-Axial (thrust) position measurements
-Ramp differential expansion measurements on steam turbines
-Rod position or rod drop measurements on reciprocating compressors
-Tachometer and zero speed measurements
-Phase reference (Keyphasor) signals
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11
mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.

FAQ

1. Can the 330103-00-16-10-02-05 be used in applications with high vibration levels?
Yes, the 330103-00-16-10-02-05 is designed to monitor a wide range of vibration levels, from normal operating conditions to those indicative of machine faults or failure.

2. What is the warranty on the 330103-00-16-10-02-05?
The 330103-00-16-10-02-05 typically comes with a warranty, often offering coverage for defects in materials or workmanship. Specific warranty terms should be verified with the supplier.

3. Can I order the 330103-00-16-10-02-05 with customized options?
Yes, customized options such as different cable lengths or connectors may be available for specific applications. Please contact the manufacturer or authorized distributor for more details.
