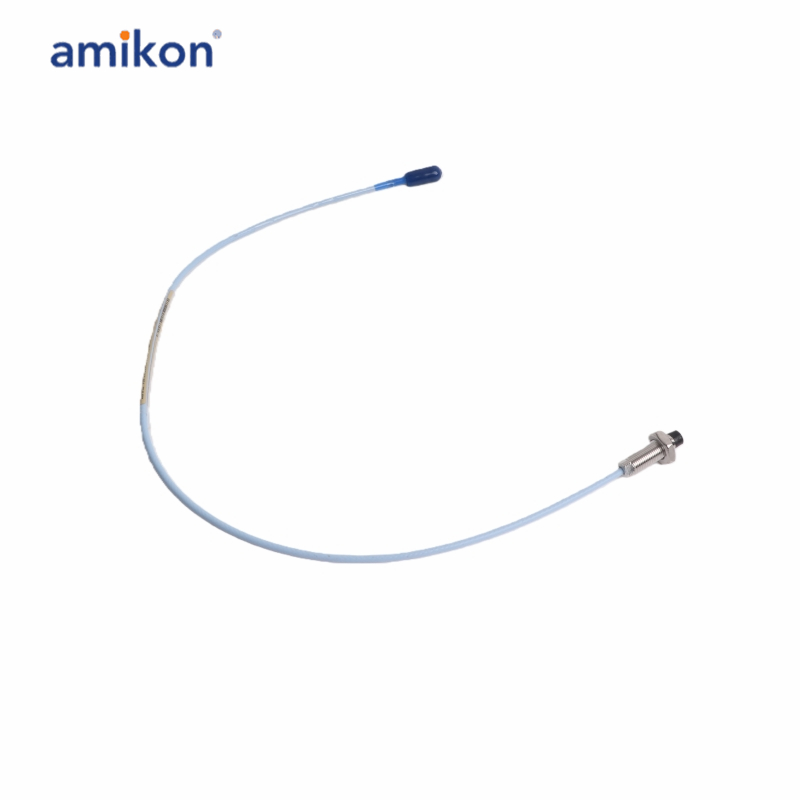

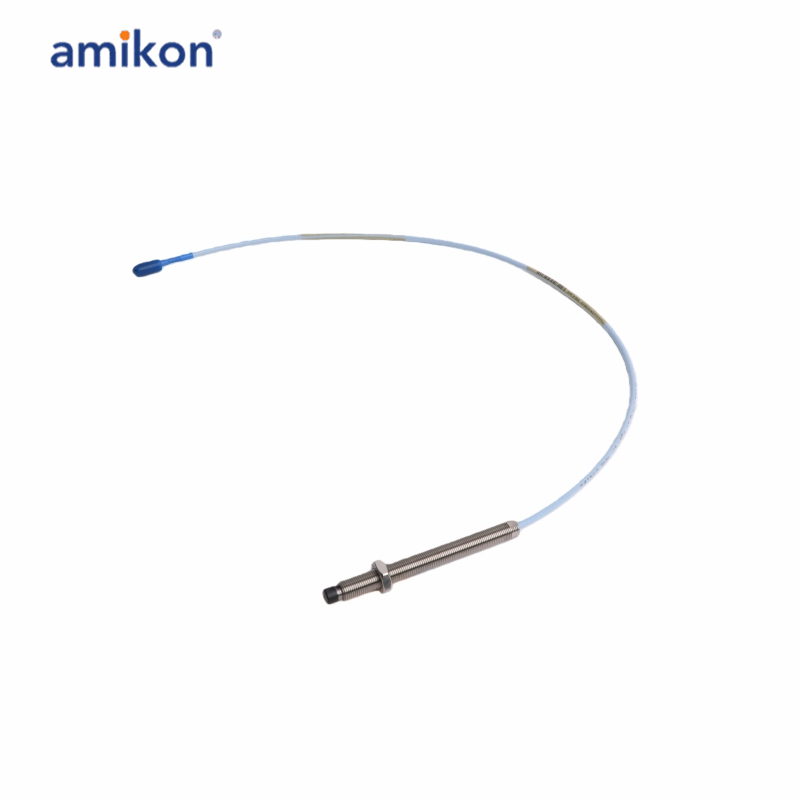

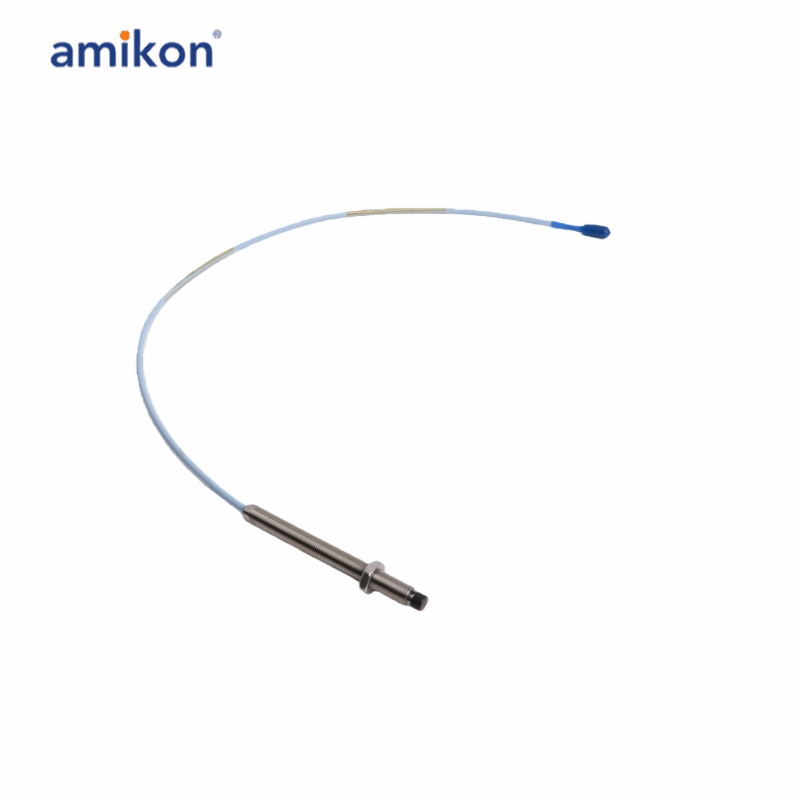

Product Specifications

Part Number	330103-00-22-50-12-00
Unthreaded Length (00)	0 mm
Overall Case Length (22)	220mm
Total Length (50)	5.0 meters (16.4 feet)
Connector and Cable-Type (12)	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval (00)	Not required

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space6,7.

Frequently asked questions：

Q1. What is the Bently Nevada 330103-00-22-50-12-00?
The 330103-00-22-50-12-00 is a 3300 XL 8 mm Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

Q2. What parameters can the 330103-00-22-50-12-00 monitor?
It can be used for monitoring shaft vibration, displacement, and static position changes on rotating equipment.

Q3. Does the 330103-00-22-50-12-00 support API 670 applications?
Yes. When installed as part of the standard 3300 XL 8 mm 5-meter system, it supports API 670 requirements for mechanical configuration, accuracy, linear range, and temperature stability.

Q4. Can the 330103-00-22-50-12-00 replace older 3300 Series components?
Yes. The 3300 XL 8 mm system provides backward compatibility with selected non-XL 3300 Series 5 mm and 8 mm transducer components.

Product Applications

Oil and gas refineries
Chemical and petrochemical plants
Thermal/hydropower/nuclear power plants
Large steel mills and metallurgical plants
Air separation plants

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
