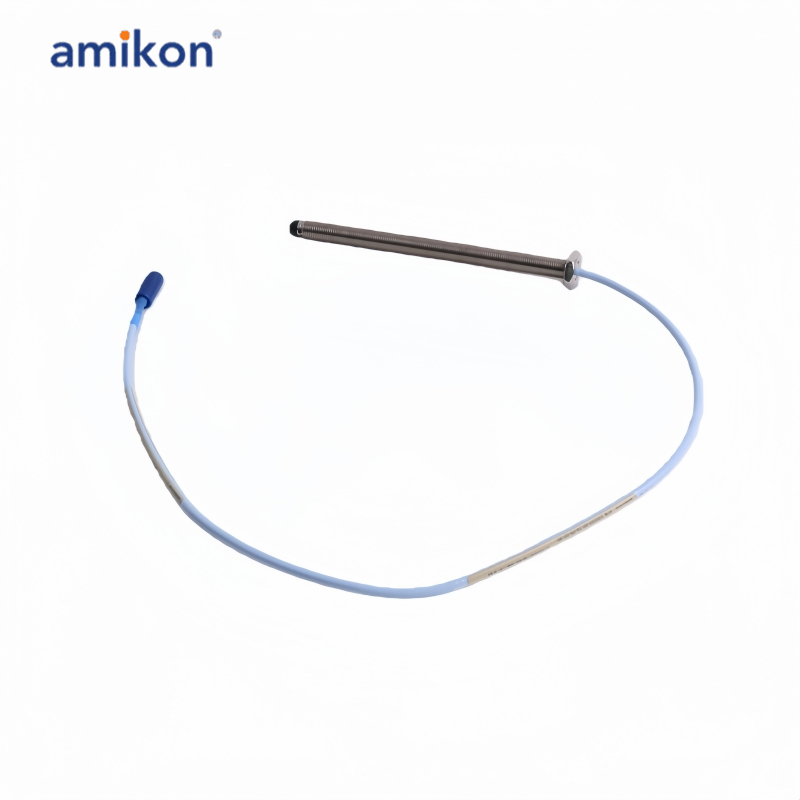

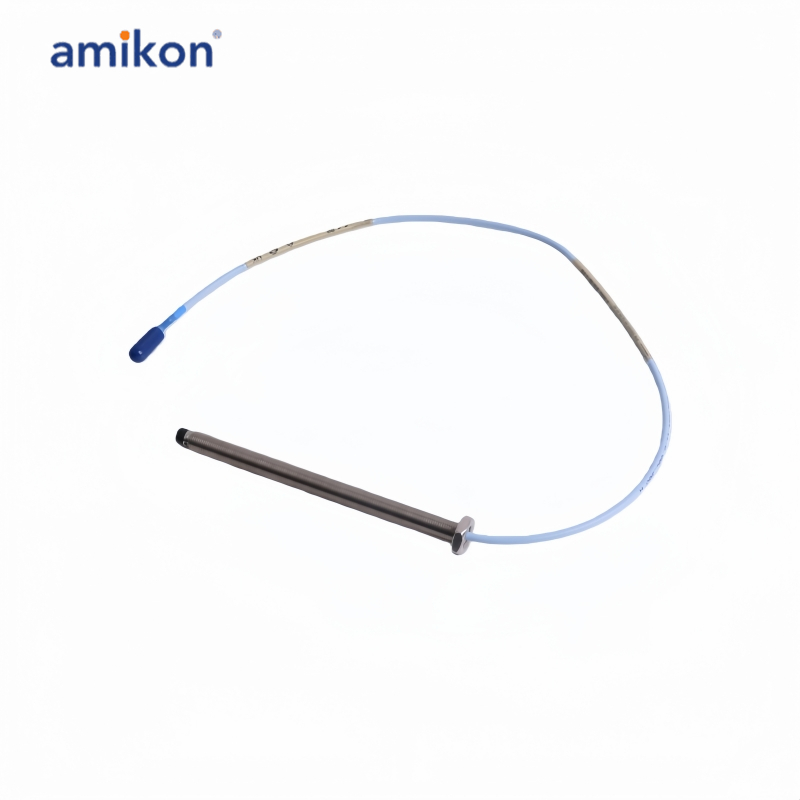

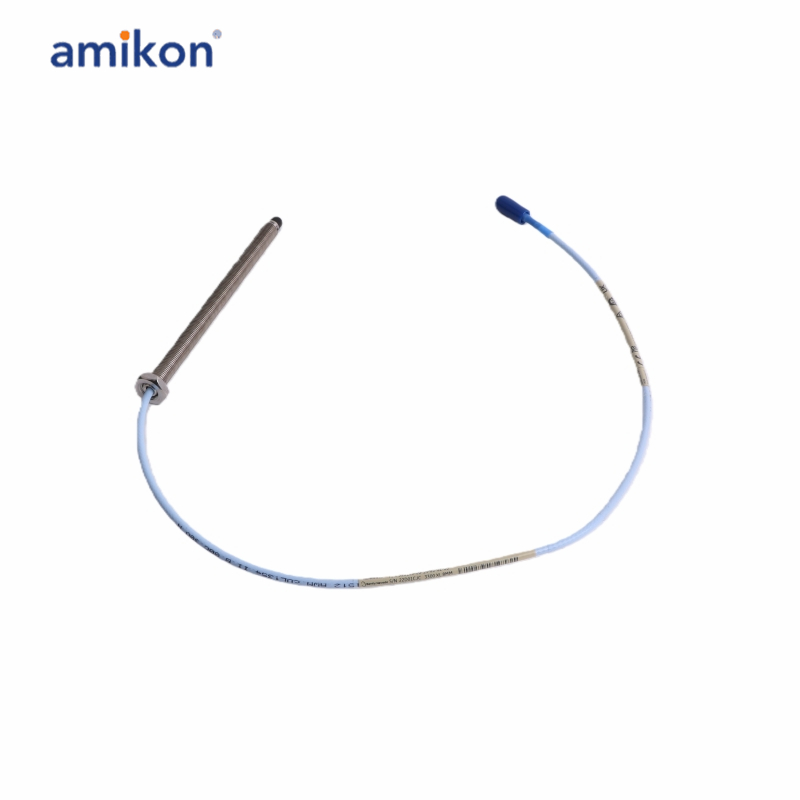

Product Specifications

Model Number	330103-00-22-50-12-05
Unthreaded Length ( 00)	0 mm
Overall Case Length ( 22)	220 mm
Total Probe Length ( 50)	5.0 meters (16.4 feet)
Connector & Cable Type ( 12)	Miniature coaxial ClickLoc connector, FluidLoc cable
Certification Approval ( 05)	CSA、ATEX、IECEx certified

The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cablel, and
One 3300 XL Proximitor Sensor2.

The system provides an output voltage that is directly proportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

Frequently asked questions：

What is the Bently Nevada 330103-00-22-50-12-05?
It is a 3300 XL 8mm metric proximity probe used for non-contacting machinery vibration and displacement measurements.

What does the "330103" prefix stand for?
It specifies a 3300 XL 8mm probe with an M10 × 1 metric thread and a non-armored cable configuration.

What type of target material is this probe calibrated for?
It is calibrated by default for AISI 4140 steel.

What does a constant -24 VDC reading indicate?
This indicates a short circuit in the cable/connector, or that the probe tip is pressed physically flat against the target.

Product Applications

Power Generation
Oil & Gas / Petrochemical
Metallurgy & Steel
Chemical & Air Separation

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
