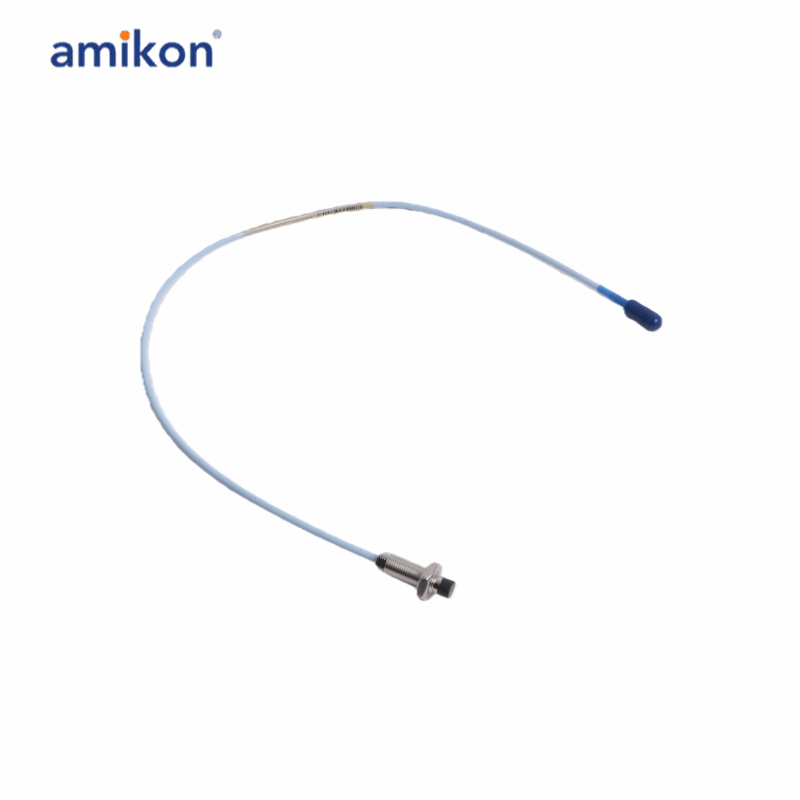

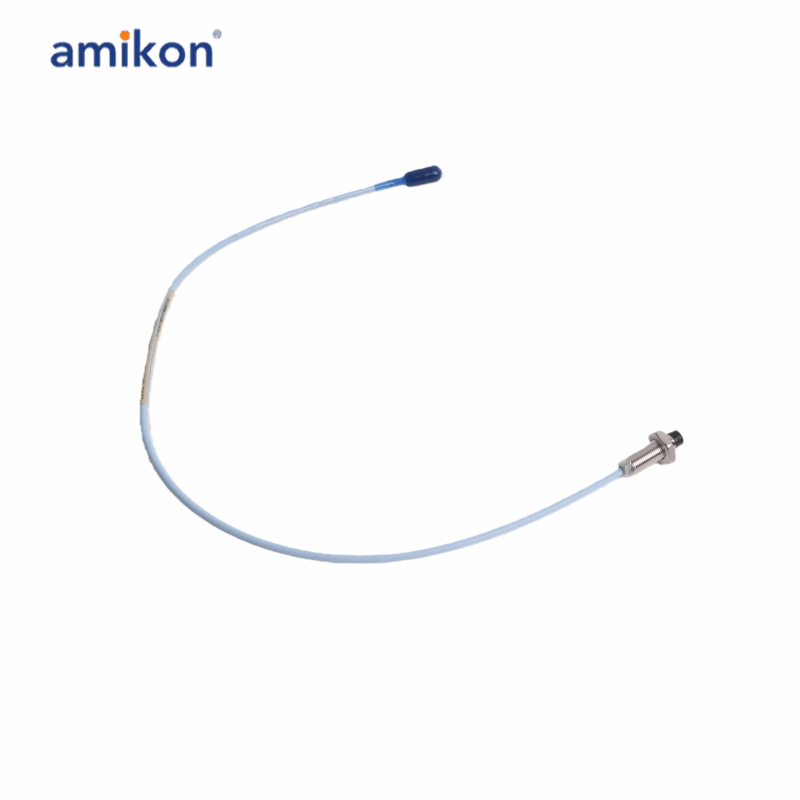

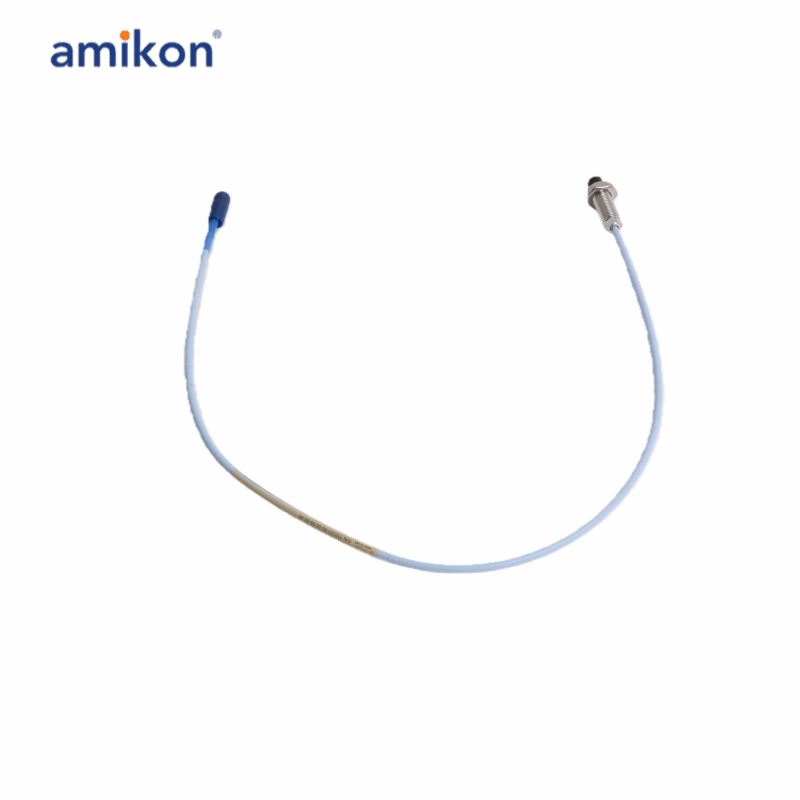

Product Specifications

Model Number	330103-00-25-05-02-BR
Unthreaded Length ( 00)	0 mm
Overall Case Length ( 25)	250 mm
Total Probe Length ( 05)	0.5 meter (1.6 feet)
Connector & Cable Type ( 02)	Miniature coaxial ClickLoc connector, standard cable
Certification Approval ( BR)	Explosion-proof materials typically targeted at specific import regions

The 3300 XL 8 mm system delivers the most advance dperformance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.

Frequently asked questions：

Q : What is the physical diameter of this probe tip?
A: It belongs to the 8mm probe series, referring to the diameter of the non-metallic PPS tip.

Q : What does the base model number "330103" indicate?
A: It specifies a metric threaded housing with a standard thread size of M10 × 1.

Q : What target material is this probe calibrated for?
A: It is calibrated by default for AISI 4140 steel. Measuring stainless steel or aluminum requires a specially calibrated Proximitor sensor.

Q : What is the nominal supply voltage for the Proximitor sensor?
A: The Proximitor sensor requires a steady external DC power supply of -24 Vdc

Q : Can I replace this probe with the global standard part 330103-00-25-05-02-BR?
A: Yes. The physical footprint and electrical properties are 100% identical. The standard global part is an exact drop-in replacement.

Product Applications

Power Industry
Oil and Gas
Chemicals and Petrochemicals
Metallurgy and Paper

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
