Part Number: 330103-00-60-05-02-05
Type: 8 mm Proximity Probe (3300 XL Series)
Linear Range: 0.25 – 2 mm
Output Scale: ~200 mV/mil (~7.87 mV/µm)
Probe Diameter: 8 mm
Mount Thread: M10 × 1
Operating Temperature: –40 °C to +177 °C
Max Cable Length: ~305 m (1,000 ft)
Case Material: Stainless Steel
Tip Material: PPS or similar

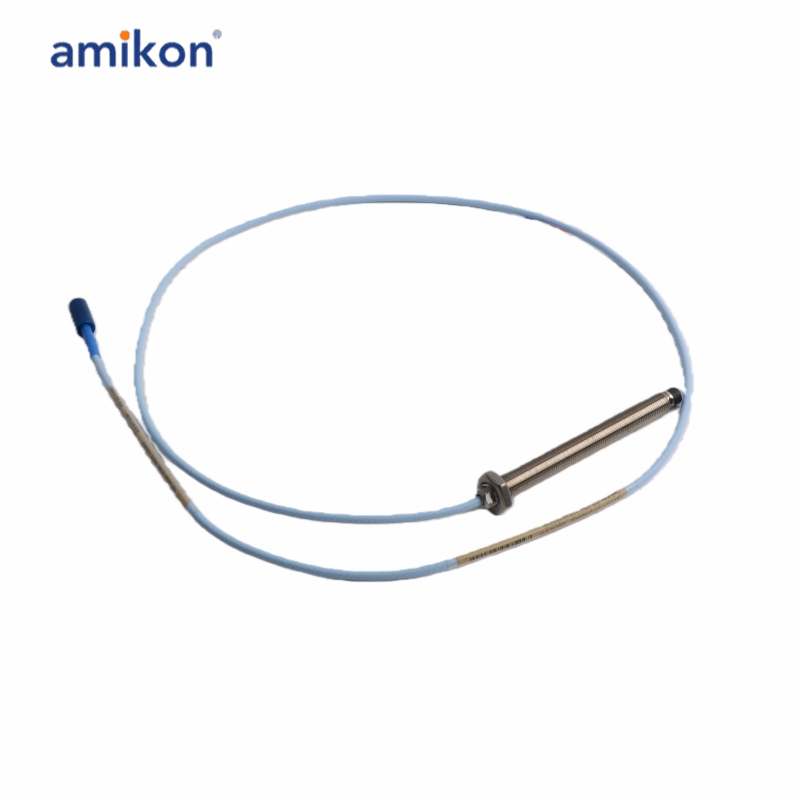

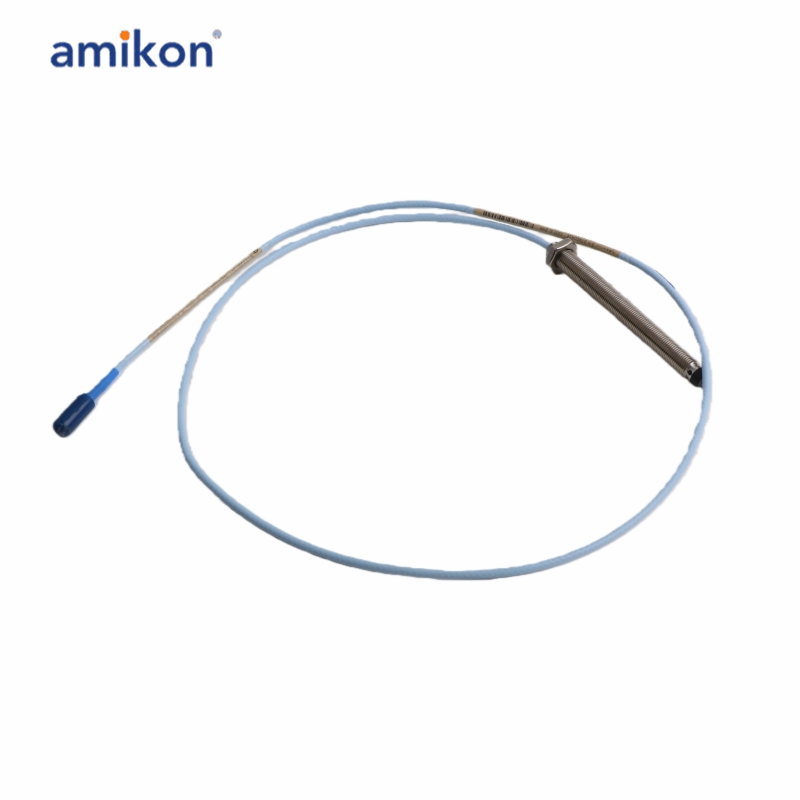

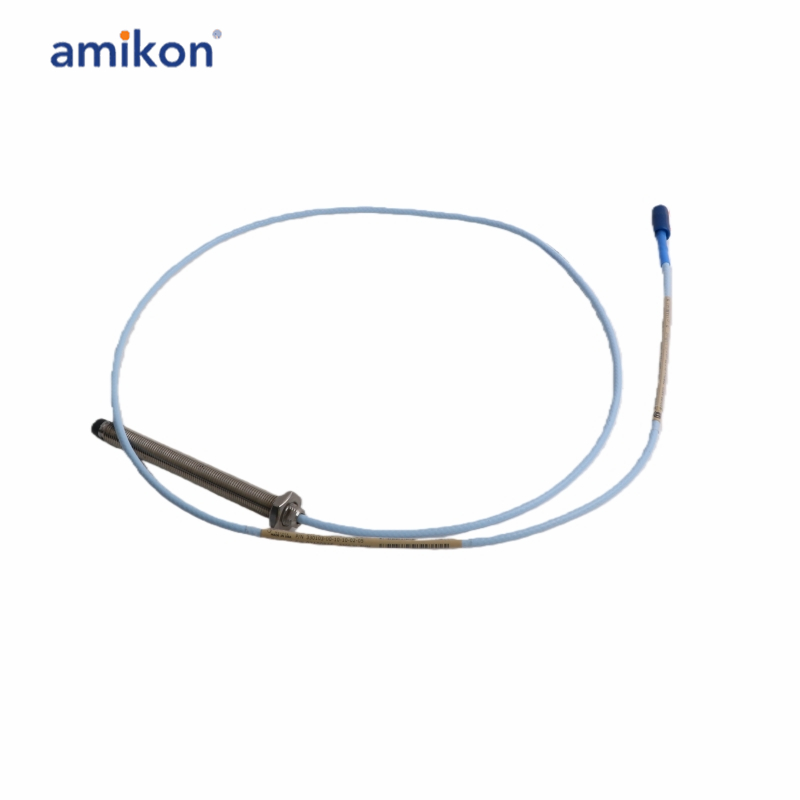

The Bently Nevada 330103-00-60-05-02-05 probe is part of the 3300 XL 8 mm Proximity Transducer System designed for high‑precision, non‑contact measurement of shaft displacement, vibration and position in critical rotating‑machinery applications (such as turbines, compressors and large motors). The probe uses eddy‑current sensing to generate an output voltage directly proportional to the distance (gap) from the probe tip to the target surface. It is engineered for rugged industrial use, including fluid‑film bearing machines, and supports the full 3300 XL ecosystem (probe + extension cable + Proximitor sensor) which offers interchangeability, calibration integrity and compliance with key standards (e.g., American Petroleum Institute API 670) when configured correctly
