Model: 330103-10-18-50-01-00
Series: 3300 XL 8 mm Proximity Probe
Manufacturer: Bently Nevada
Probe Tip Diameter: 8 mm (0.315 in)
Thread Size: M10 × 1
Unthreaded Length Option: 10 = 10 mm
Case Length Option: 18 = 180 mm (7.09 in)
Total System Length: 5.0 m (16.4 ft)
Connector Type: 01 = Miniature coaxial connector (standard type)
Agency Approval Option: 00 = None (standard industrial version)
Linear Range: 2.0 mm (80 mils) typical
Scale Factor (Sensitivity): 200 mV/mil ±6.25% (7.87 mV/μm ±6.25%)
System Linearity: Within ±0.25 V over linear range
Nominal Gap Voltage: –10 V DC nominal at 2 mm gap
Frequency Response: 0 – 10 kHz (±3 dB typical)
Operating Temperature Range: –35 °C to +177 °C (–31 °F to +350 °F)
Temperature Coefficient: ≤ 5 mV/°C

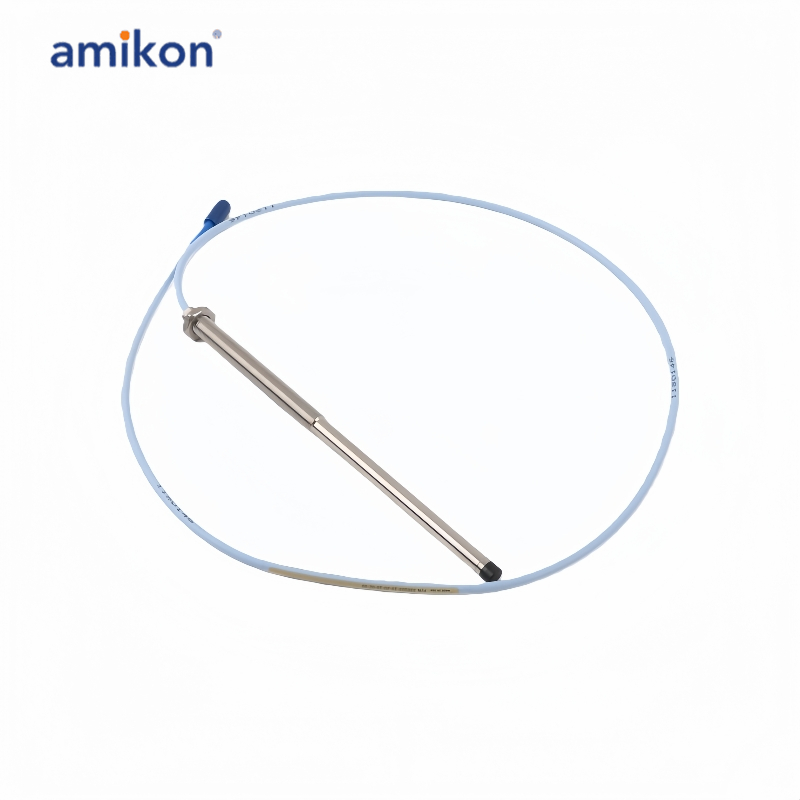

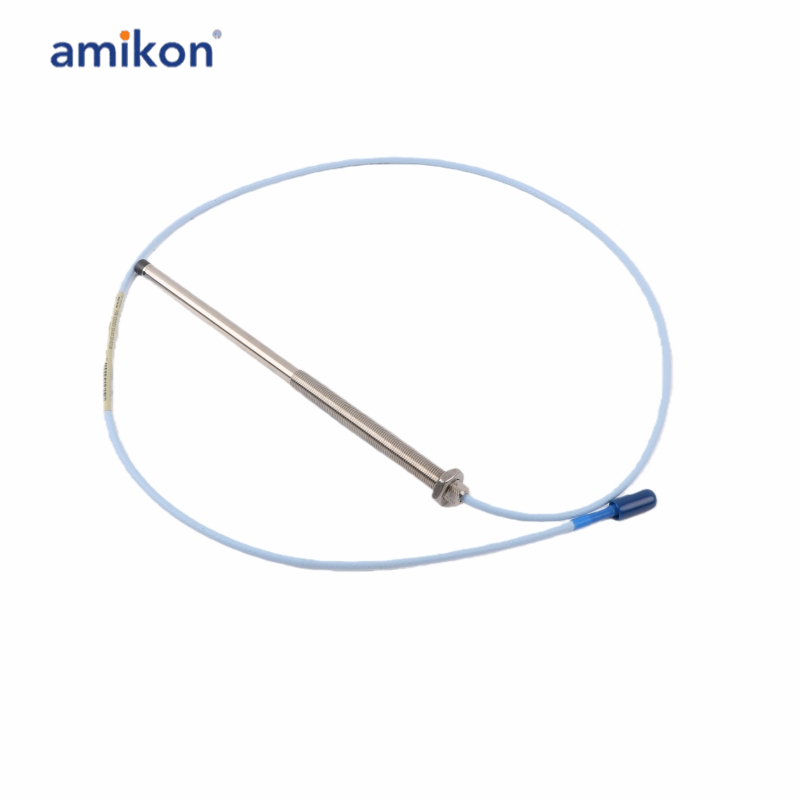

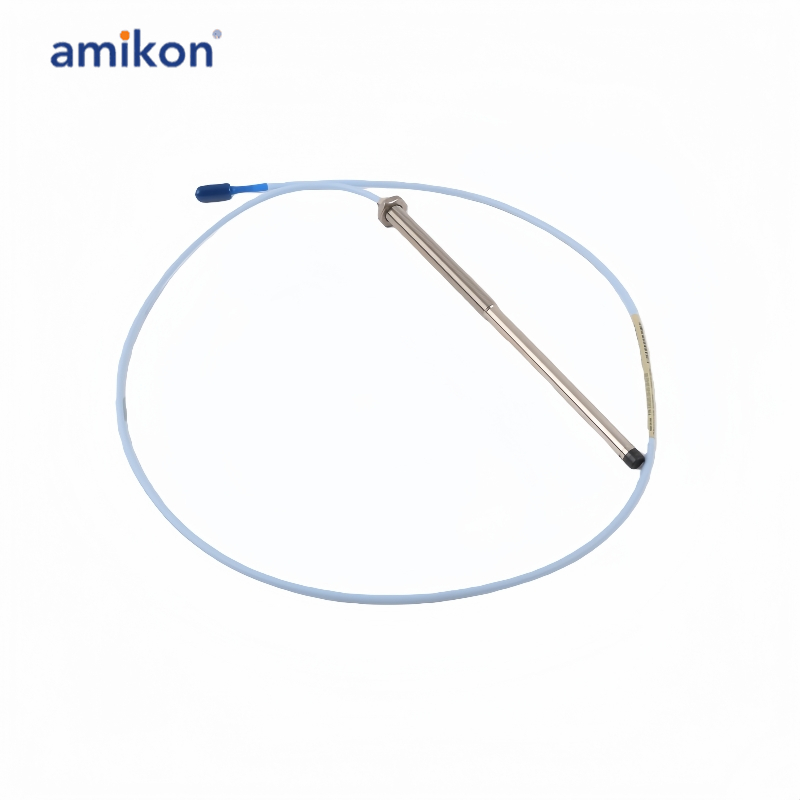

The Bently Nevada 330103-10-18-50-01-00 Proximity Transducer System is part of the 3300 XL 8 mm Proximity Transducer System family, designed by Bently Nevada (a Baker Hughes company). This high-performance eddy-current proximity system provides precise, reliable, and continuous measurement of both static and dynamic distance (displacement and vibration) between the probe tip and a conductive target, typically a rotating shaft or similar component in industrial machinery.
