Product Specifications

Manufacturer	Bently Nevada
Product No.	330104-00-05-05-02-00
Product type	3300 XL 8 mm Proximity Probes
Unthreaded Length Option	00 = 0 mm
Overall Case Length Option	05 = 50 mm
Total Length Option	05 = 0.5 metre (1.6 feet)
Connector and CableType Option	02 = Miniature coaxial ClickLoc™ connector, standard cable
Agency Approval Option	00 =Not required
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)

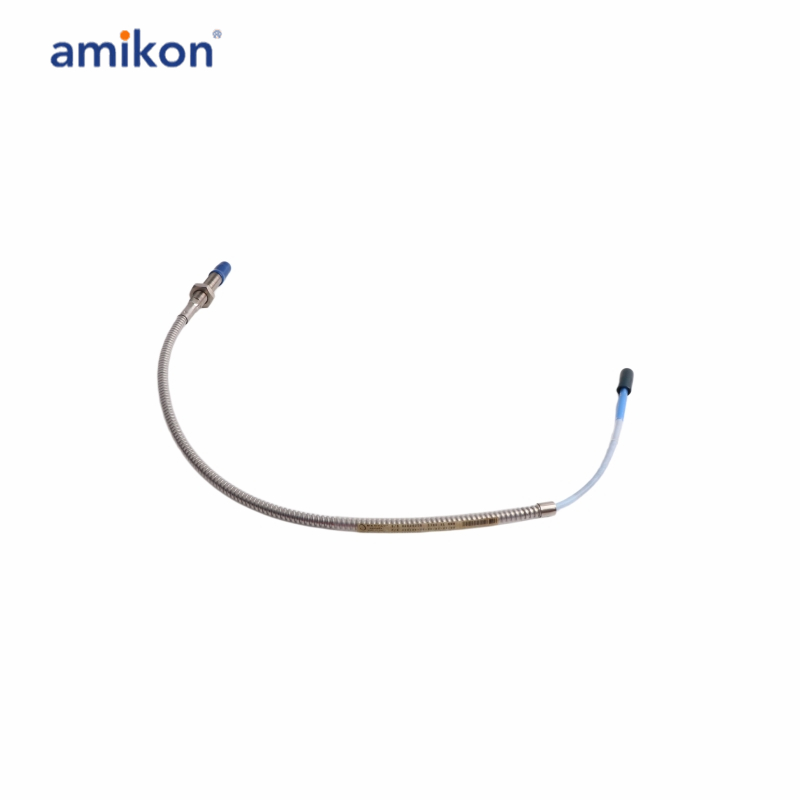

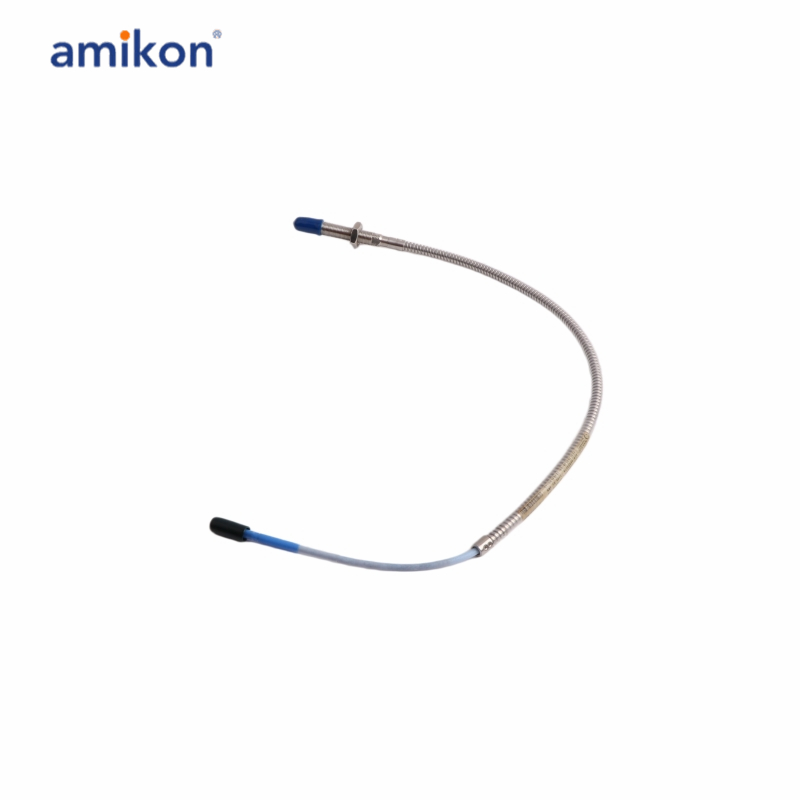

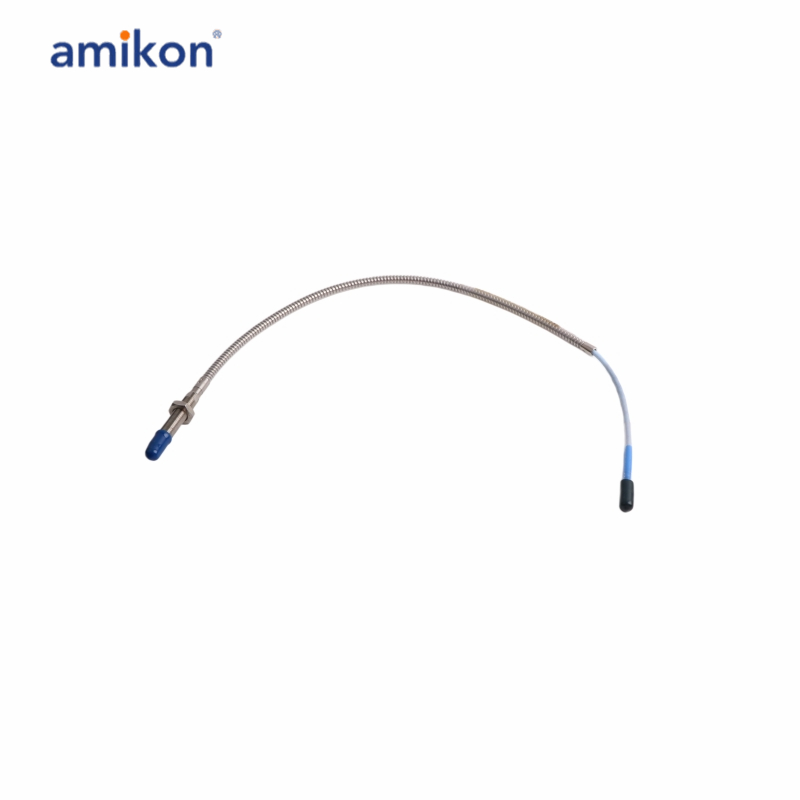

The Bently Nevada 330104-00-05-05-02-00 is a 3300 XL 8 mm Proximity Probe designed for use as a component of the 3300 XL 8 mm Proximity Transducer System. It operates together with compatible extension cables and Proximitor® Sensors as part of the complete eddy current proximity transducer system.

The 3300 XL 8 mm system delivers the advanced performance characteristics of Bently Nevada's eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute (API) 670 Standard, 4th Edition.

This API 670 4th Edition compliance covers important system characteristics including mechanical configuration, linear range, accuracy, and temperature stability. These requirements define the specified performance of the standard 3300 XL 8 mm 5-meter transducer system.

Frequently asked questions：

Q : What do the "-05-05" segments mean in this specific part number?
The first "-05" indicates a Case Length of 50 mm. The second "-05" indicates a Total Unarmored Cable Length of 0.5 meters (1.6 feet)

Q : What is the physical thread size of this proximity probe?
As part of the 330104 base series, this is a metric reverse mount probe. It typically features an M10×1 standard mounting thread.

Q : What is the linear range of this 8mm proximity probe?
The standard linear range of the 3300 XL 8mm probe is 2.0 mm (80 mils), which typically starts about 0.25 mm (10 mils) away from the target surface

Q : What is the required power supply for this sensor loop?
The Proximitor Sensor requires a clean external power source of -24 Vdc (typically accepting a range from -23V to -26V).

Product Applications

Power Industry
Oil and Gas
Chemical and Petrochemical Industries
Metallurgy and Mining
