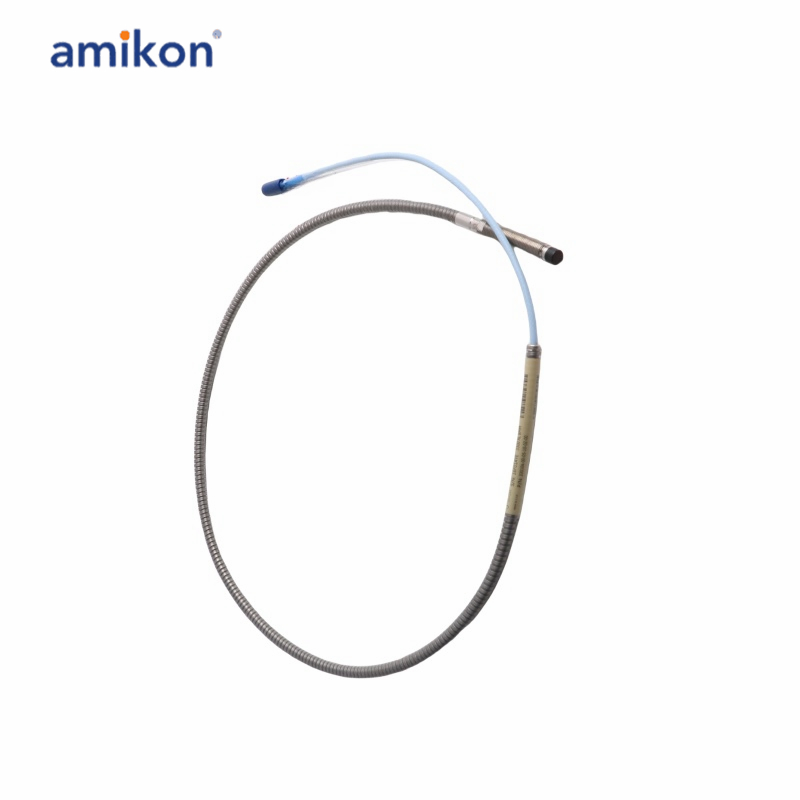

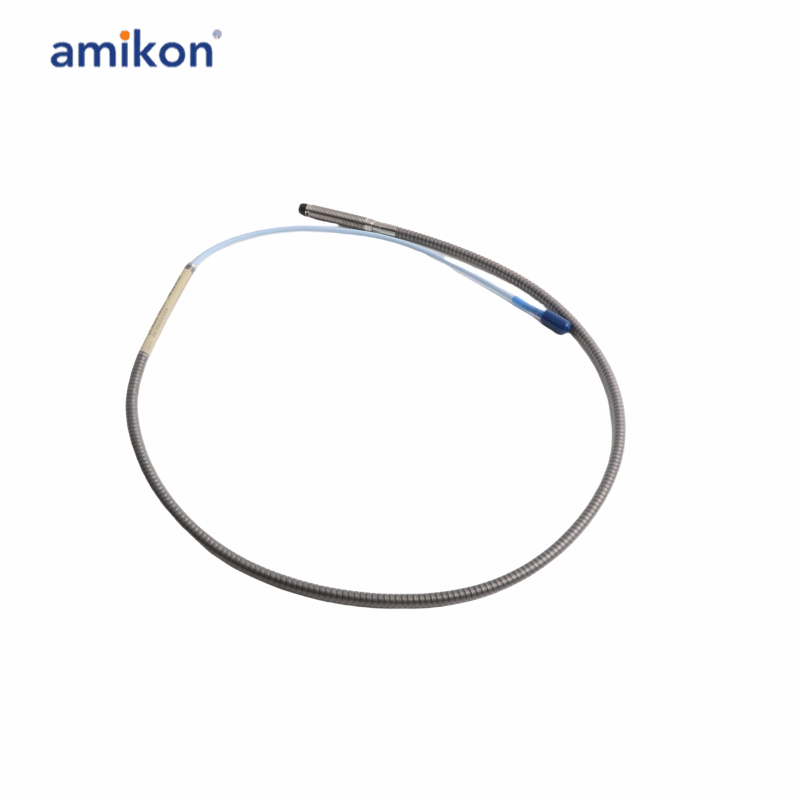

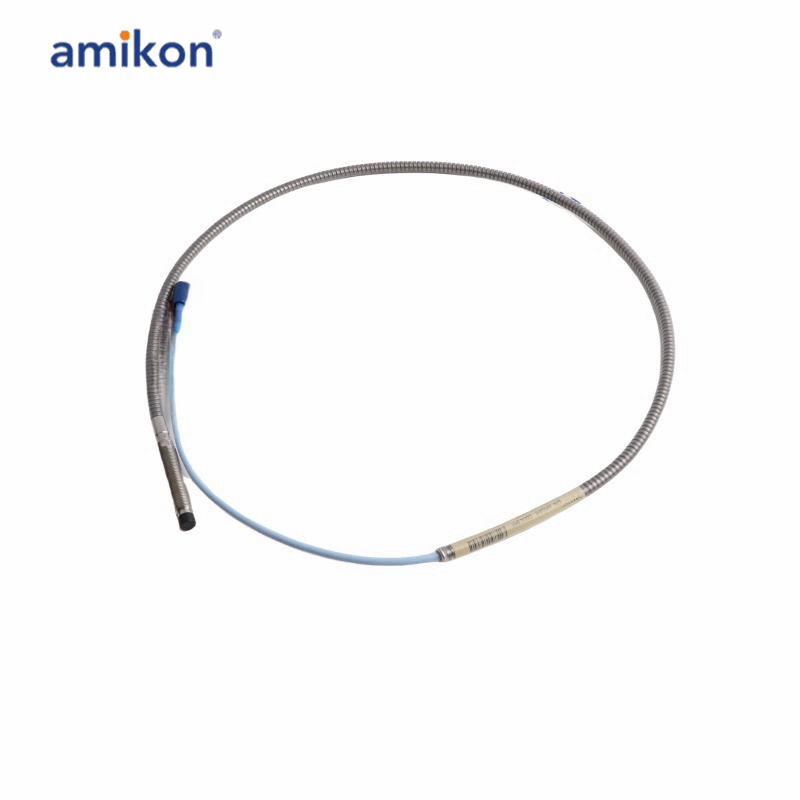

Part Number: 330104-00-05-50-02-CN
Manufacturer: Bently Nevada
Power Supply Requirement: –17.5 VDC to –26 VDC
Power Supply Sensitivity: < 2 mV
Output Resistance: 50 Ω
Recommended Gap Setting: –9 VDC
Scale Factor (System Performance):
Standard 5 m / 1 m System: 7.87 V/mm (200 mV/mil) ±5%
Standard 9 m System: 7.87 V/mm (200 mV/mil) ±6.5%
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
Field Wiring: 0.2–1.5 mm² (16–24 AWG)

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum institute's(APl670 Standard for mechanical configuration, linear range,accuracy,and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL3300 series 5 mm and 8 mm transducer systemcomponents5,This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.
