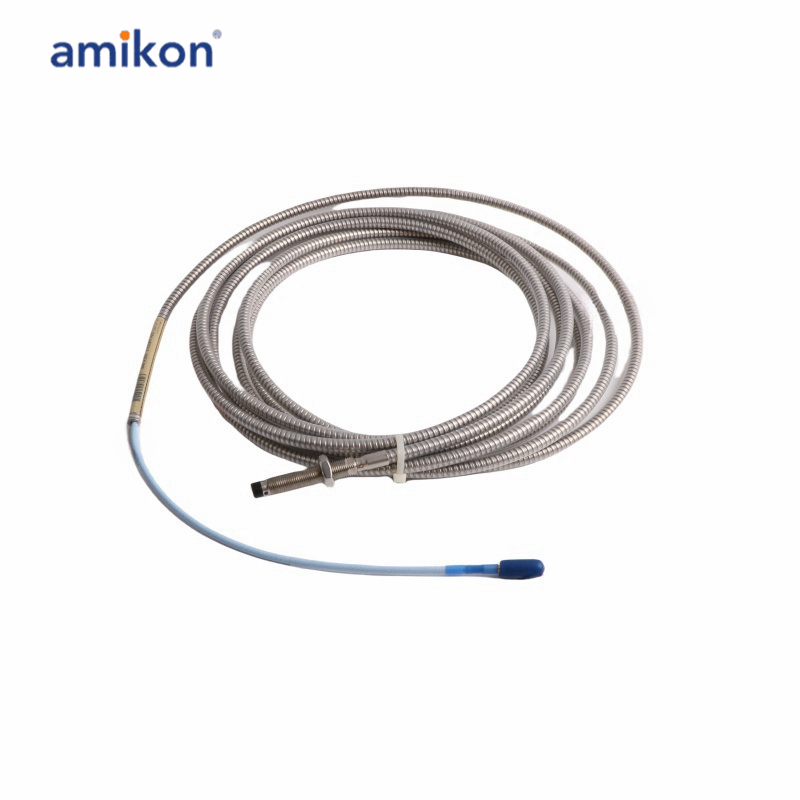

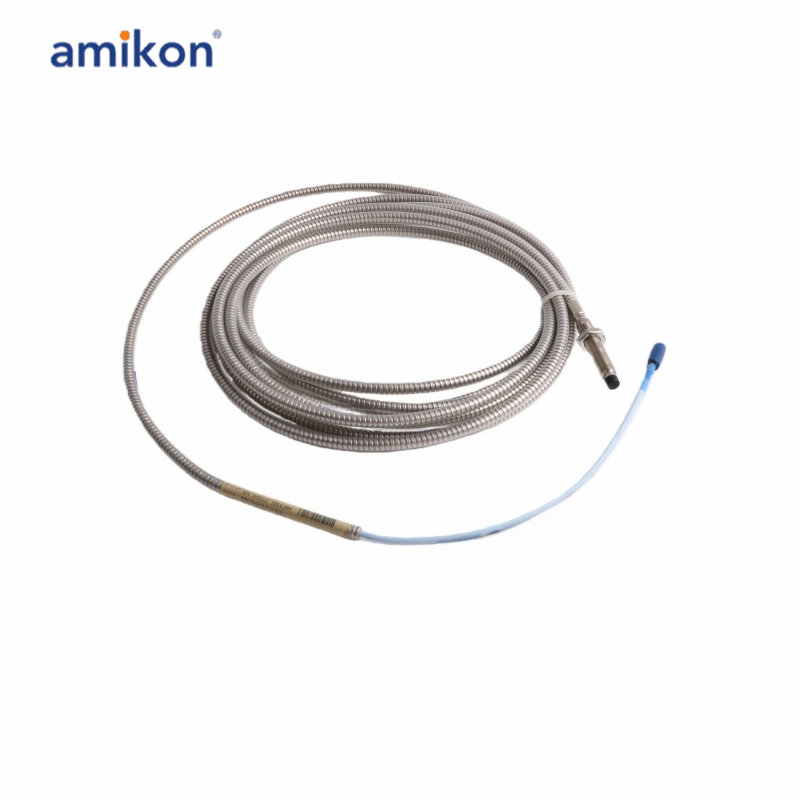

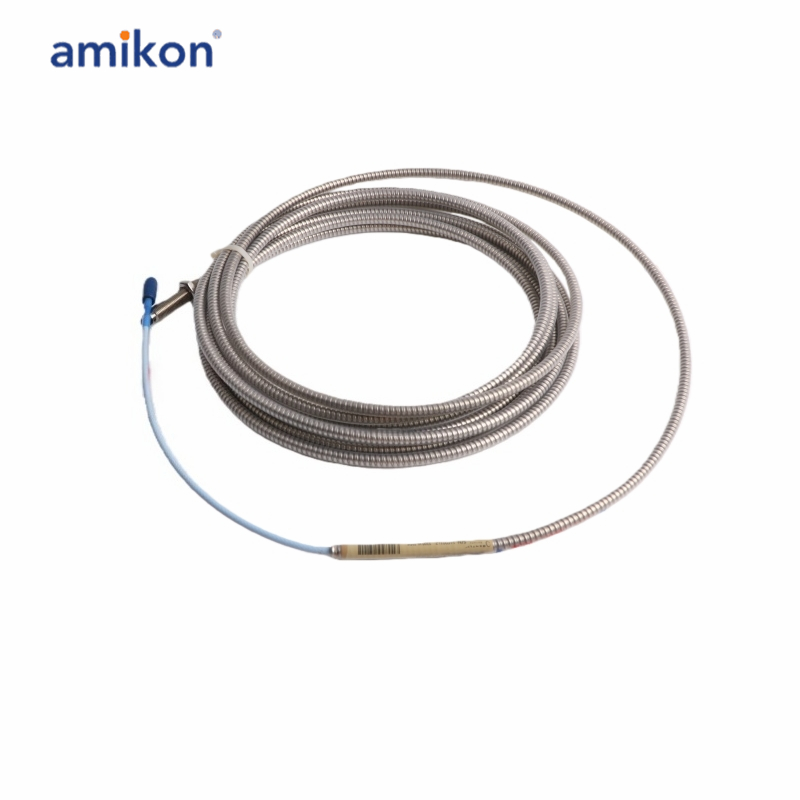

Product Number:330104-00-05-90-02-05

Power Requirement: -17.5 VDC to -26 VDC

Supply Sensitivity: < 2 mV

Output Resistance: 50 Ω

Extension Cable DC Resistance: Center conductor 0.220 Ω/m (0.067 Ω/ft)

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)

Linear Range: 1.5 mm (60 mils)

Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) +12.5% / -20%

Frequency Response: 0 to 10 kHz

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. lt is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 5l mm(2 in) or axial position on flattargets smaller than 15 mm (0.6 in). it is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements.
Phase reference (Keyphasor signals)
