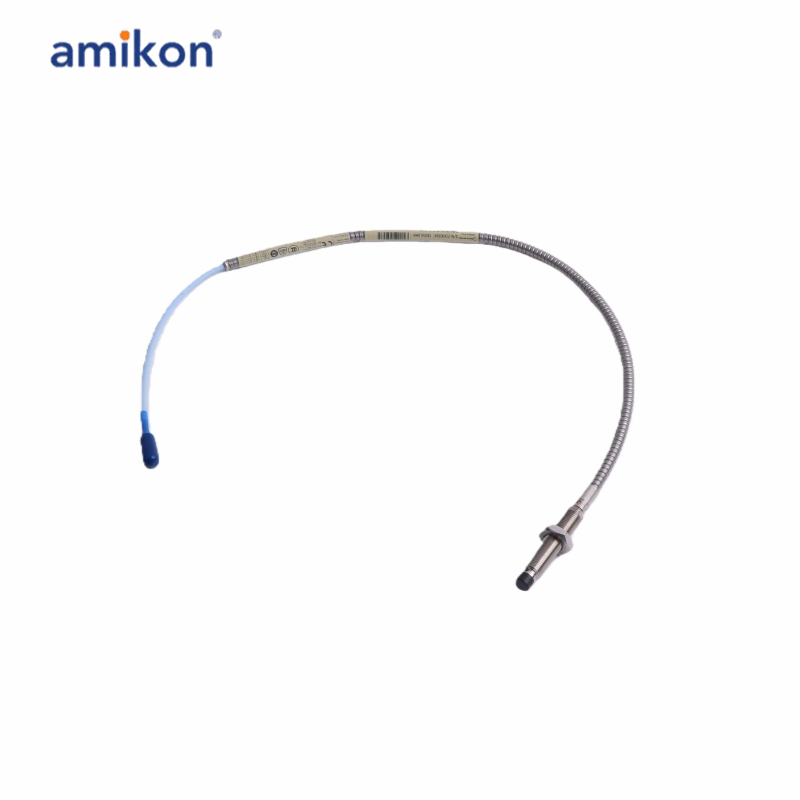

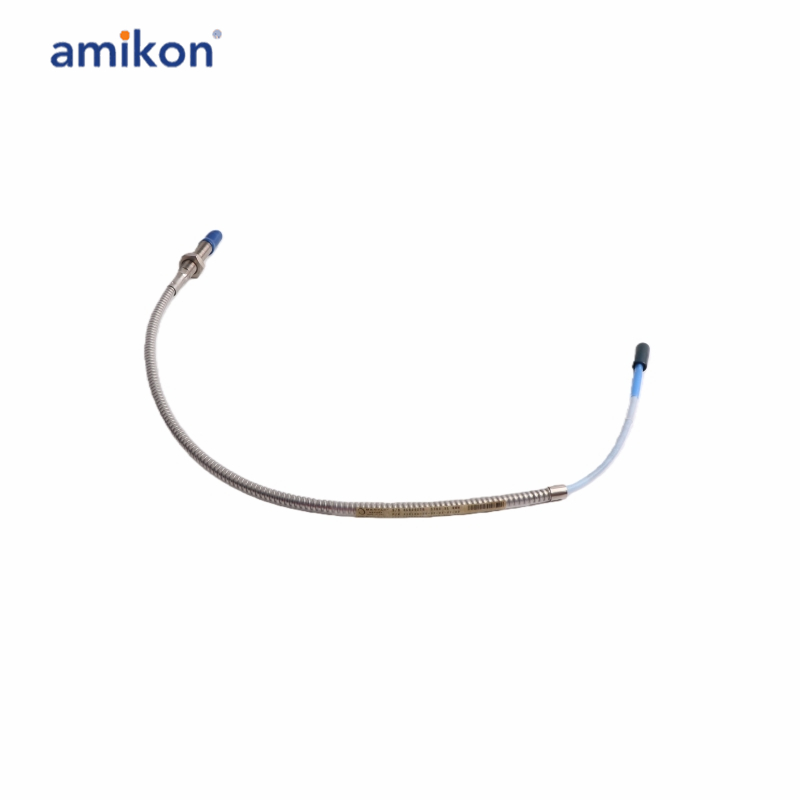

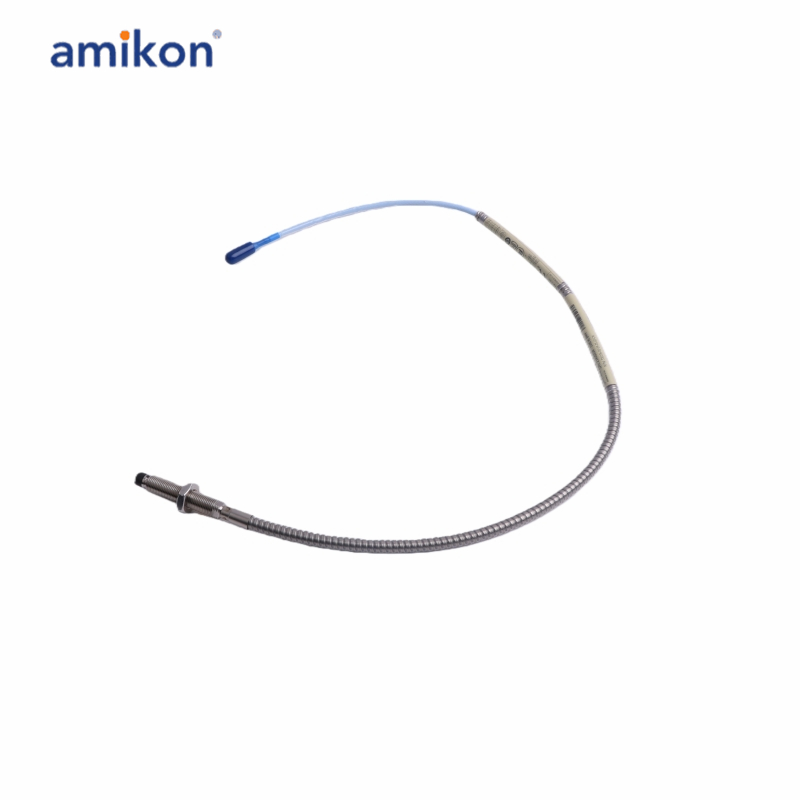

Product Specifications

Manufacturer	Bently Nevada
Part Number	330104-00-06-05-01-CN
Series	3300 XL 8 mm Proximity Probe
Thread Size	M10×1 with armored protection
Case Length ( 06)	6 mm
Unthreaded Length ( 00)	0 mm
Cable Length ( 05)	0.5 meters
Connector Type ( 01)	ClickLoc connector with protector
Certification ( CN)	Country-specific approvals
DC Resistance	7.45 Ω ± 0.50 Ω @ 25°C
Operating Voltage	-17.5 VDC ~ -26 VDC
Max Current Consumption	12 mA
Output Resistance	50 Ω
Sensitivity to Supply Variation	<2 mV/V
Linearity	±1% full scale

The 3300 XL probe and extension cable alsoreflect improvements over previous designs. Apatented Tiploc molding method provides amore robust bond between the probe tip andthe probe body. The probe's cable incorporatesa patented CableLoc design that provides 330N (75 lbf) pull strength to more securely attachthe probe cable and probe tip.
You can also order 3300 XL 8 mm probes andextension cables with an optional FluidLoccable option. This option prevents oil and otherliquids from leaking out of the machine throughthe cable's interior.

Frequently asked questions：

Q1: What is the Bently Nevada 330104-00-06-05-01-CN used for?
A1:The Bently Nevada 330104-00-06-05-01-CN is a 3300 XL 8 mm proximity probe designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery. It is widely used in turbines, compressors, motors, pumps, and other critical industrial equipment.

Q2: What is the DC resistance of the 330104-00-06-05-01-CN probe?
A2:The 330104-00-06-05-01-CN probe has a DC resistance of 7.45 Ω ± 0.50 Ω at 25°C, ensuring stable electrical characteristics and reliable signal transmission within the proximity transducer system.

Q3: What operating voltage does the 330104-00-06-05-01-CN probe require?
A3:The 330104-00-06-05-01-CN 3300 XL 8 mm proximity probe operates with a supply voltage ranging from -17.5 VDC to -26 VDC, which is standard for Bently Nevada proximity monitoring systems.

Q4: What is the 330104-00-06-05-01-CN maximum current consumption?
A4:The 330104-00-06-05-01-CN probe has a maximum current consumption of 12 mA, contributing to efficient operation and compatibility with machinery monitoring systems.

Product Applications

Oil and Gas
Power and Energy
Metallurgy and Chemicals
Machine Tools and Automotive Manufacturing
