Product Specifications

Part Number	330104-04-09-50-02-05
Unthreaded Length (04)	40 mm
Overall Case Length (09)	90 mm
Total Length (50)	5.0 meters (16.4 feet)
Connector and Cable-Type (02)	Miniature coaxial ClickLoc connector, standard cable
Agency Approval (05)	CSA, ATEX, IECEx Approvals

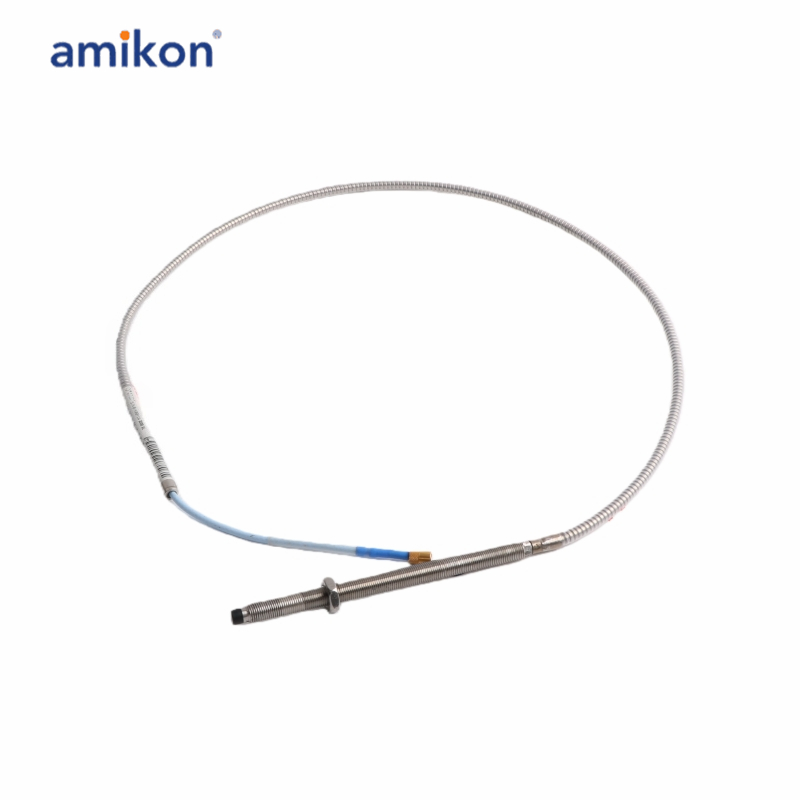

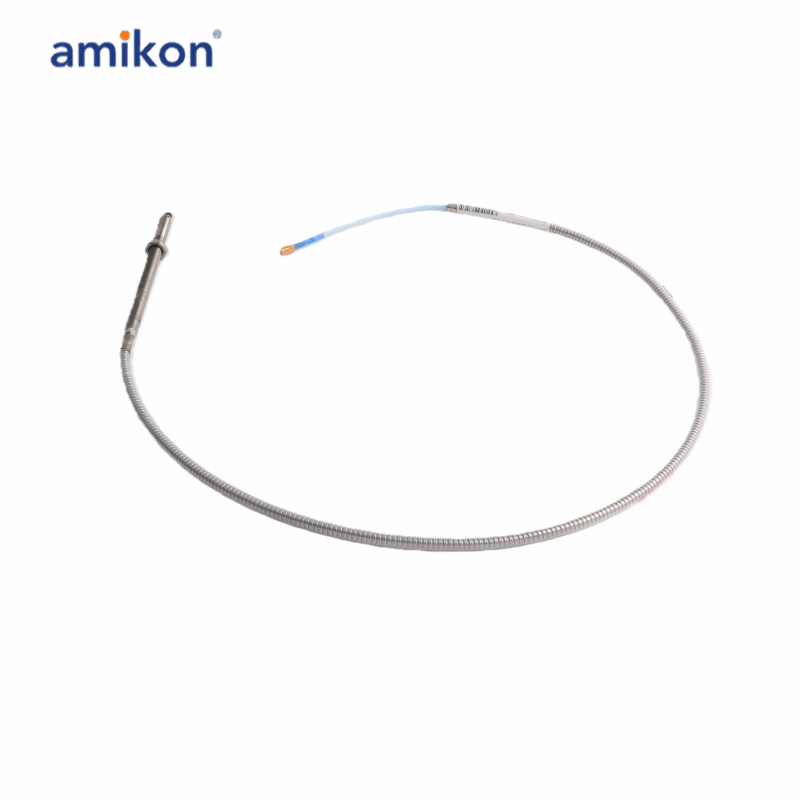

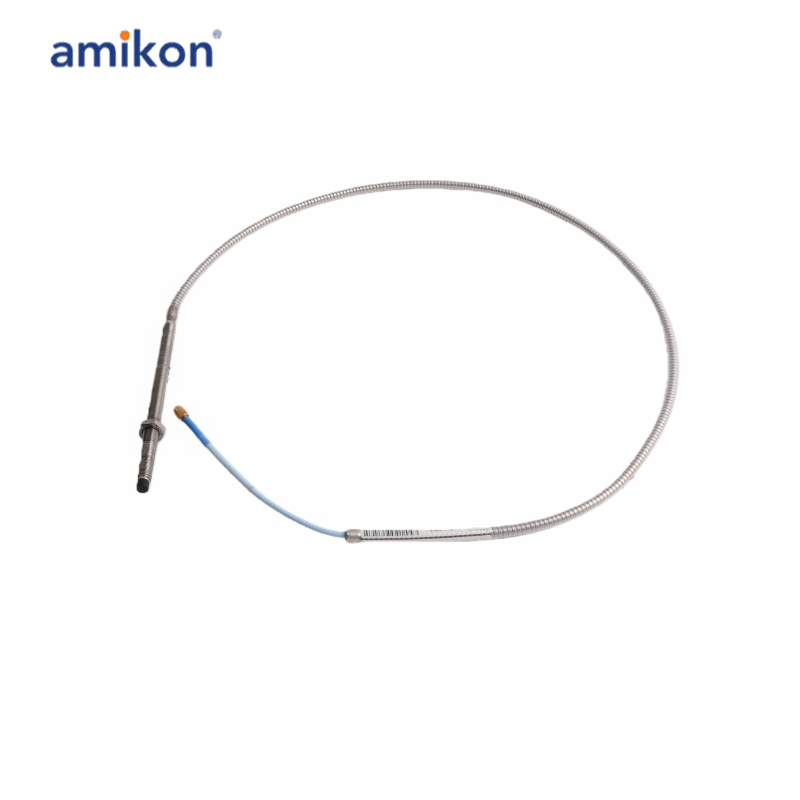

This armored M10×1 threaded 3300 XL 8 mm eddy-current proximity probe is a core component of Bently Nevada’s industry-standard 3300 XL transducer system, fully compliant with API 670 specifications for turbomachinery monitoring. It delivers high-precision non-contact gap measurement for fluid-film bearing rotating equipment such as steam turbines, gas turbines and centrifugal compressors. The built-in flexible stainless armor shields the 5-meter FEP triaxial cable against mechanical abrasion, oil and chemical erosion in harsh industrial environments. Equipped with full global hazardous area certifications, it is suitable for Class I/II/III explosive zone applications while supporting radial vibration, shaft position, thrust monitoring, Keyphasor phase reference and zero-speed pickup. All 3300 XL 8 mm components feature full interchangeability without bench calibration.

The Bently Nevada 330104-04-09-50-02-05 is an armored M10×1 thread 3300 XL 8 mm proximity probe with 40 mm unthreaded length, 90 mm case and 5-meter integrated armored standard cable. Fitted with ClickLoc connectors and full CSA/ATEX/IECEx hazardous certifications, it provides interchangeable API 670-compliant vibration & position measurement for critical turbomachinery in explosive industrial zones.

Frequently asked questions：

Q: Is this 330104-04-09-50-02-05 probe armored? What are the benefits of armor?
A: Yes, model 330104 comes with stainless steel armor wrapped around FEP cable. The armor protects the cable from friction, turbine oil, chemical splashes and physical damage inside bearing housings.

Q: Which Proximitor Sensor can pair with this 5m probe?
A: It must only be matched with 5-meter 3300 XL Proximitor (33018-50/51/52). It cannot work with 9m series proximitors.

Q: What temperature range can this 330104-04-09-50-02-05 probe withstand?
A: Operating & storage range: -52°C to +177°C. Continuous exposure below -34°C will damage the internal Viton pressure seal and cause early failure.

Q: What torque do I use to install the 330104-04-09-50-02-05 M10×1 probe thread?
A: Recommended tightening torque: 7.5 N·m (66 in·lb); maximum allowable torque 22.6 N·m (200 in·lb). Do not over-tighten to avoid thread damage.

Product Applications

Electricity industry
Oil and natural gas
Refining and Chemical Industry
Heavy industry manufacturing

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
