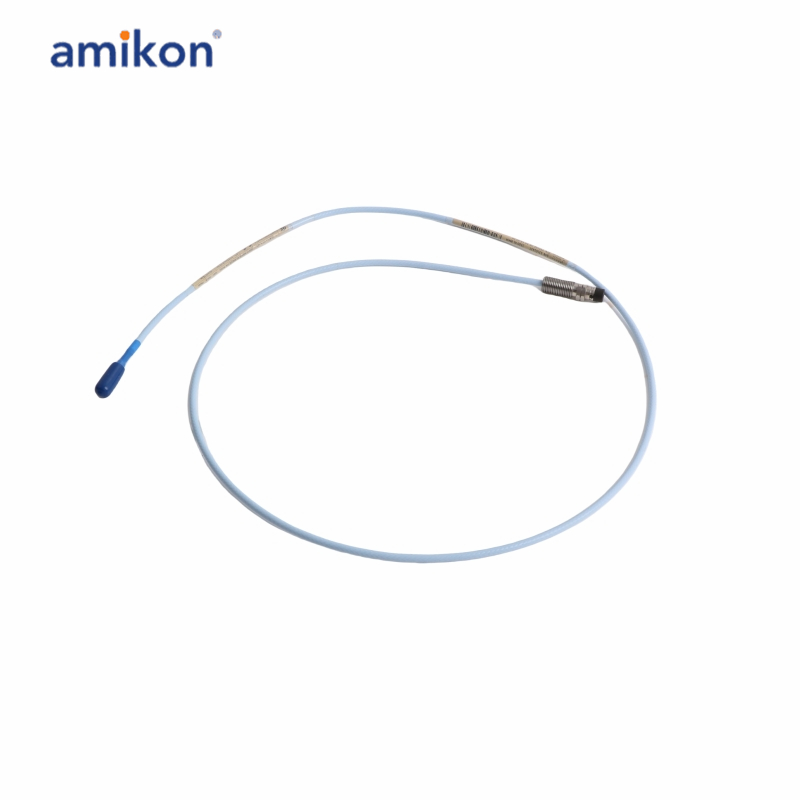

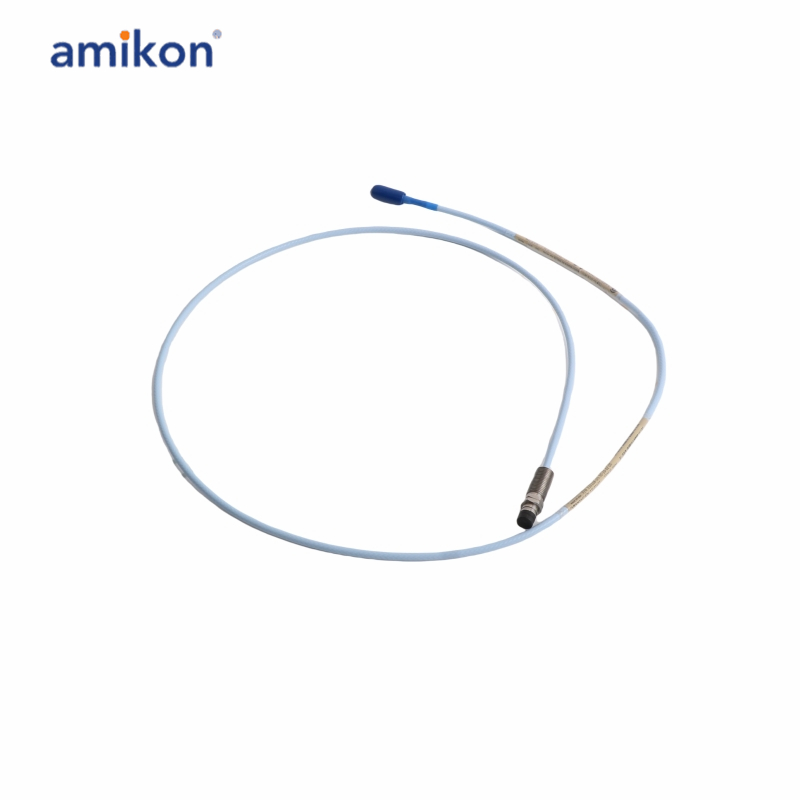

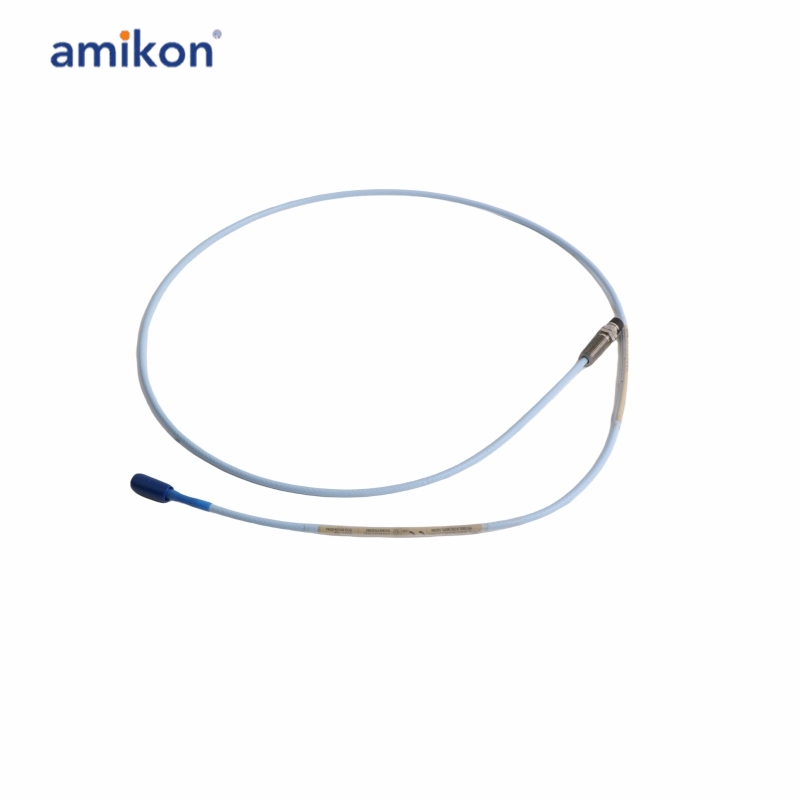

Part Number: 330106-05-30-05-12-05
Series: Bently Nevada 3300 XL
Mounting Type: Reverse Mount
Probe Length: 30 inches (762 mm)
Cable Length: 5 meters (16.4 feet)
Connector Type: Miniature coaxial
Thread Size: 3/8-24 UNF-2A
Sensing Principle: Eddy current
Target Material: Ferromagnetic (typically 4140 steel)
Resistance: 50 Ω
Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Minimum Probe Tip: 50.8 mm (2 in)
Recommended Probe Tip: Minimum 76.2 mm (3 in)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel (SST)
Minimum Cable Bend Radius: 25.4 mm (1.0 in)
Maximum Connector Torque: 0.565 N•m (5 in•lbf)
Operating Temperature: −35°C to +177°C (−31°F to +351°F)

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

Q1: What is the thread size of the Bently Nevada 330106-05-30-05-12-05 Reverse Mount Probe?
A1: The probe uses a 3/8-24 UNF-2A thread for secure reverse mounting.
Q2: What sensing principle does this probe use?
A2: It operates using eddy current technology to measure shaft displacement without physical contact.
Q3: What type of target material is recommended?
A3: The probe is designed to work with ferromagnetic materials, typically 4140 steel.
Q4: What is the 330106-05-30-05-12-05 electrical resistance of the probe?
A4: The probe has a resistance of 50 Ω.
Q5: What is the typical capacitance of the Bently Nevada 330106-05-30-05-12-05 probe?
A5: The capacitance is typically 69.9 pF/m (21.3 pF/ft).

Product Applications
Power Generation Plants
Oil & Gas Industry
Petrochemical Plants
Steel & Metallurgy Industry
Water Treatment & Heavy Industry
General Industrial Machinery
