Product Specifications

Model Number	330180-X1-05 MOD 145004-10
Power Supply	-17.5 Vdc ~ -26 Vdc
Sensitivity	Less than 2 mV
Output Resistance	50 Ω
Recommended Gap Setting	-9 Vdc
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft)
Field Wiring	0.2 to 1.5 mm² (16 to 24 AWG)
Linear Range	2 mm (80 mils)
Minimum Target Size	15.2 mm (0.6 in)

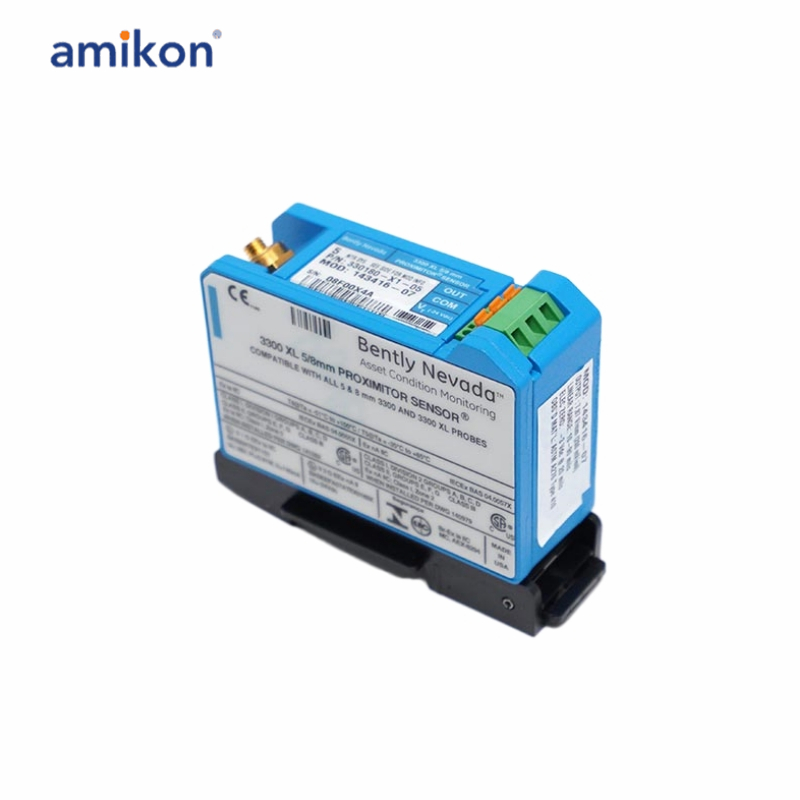

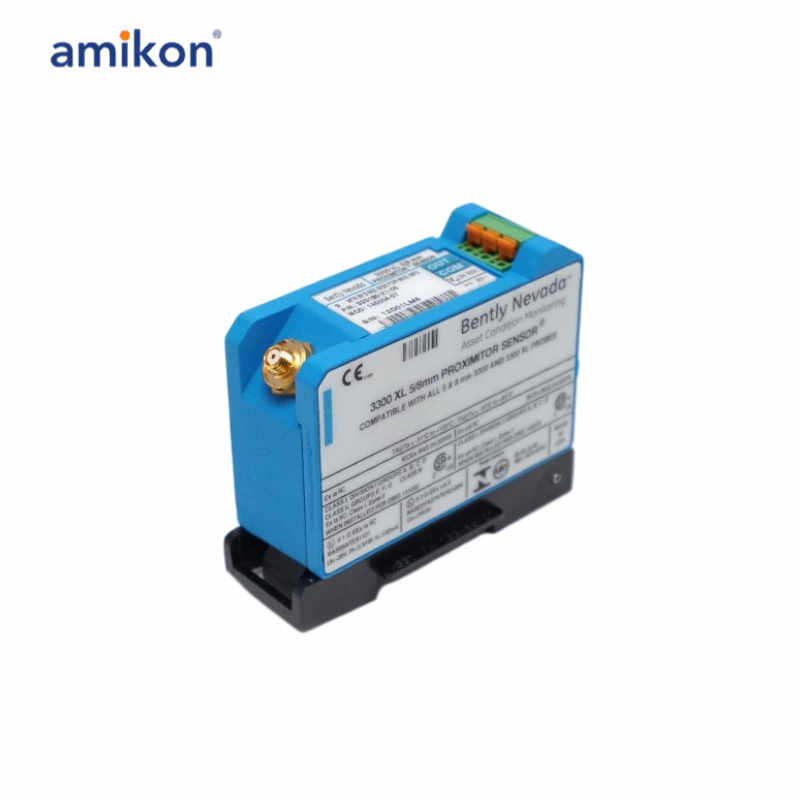

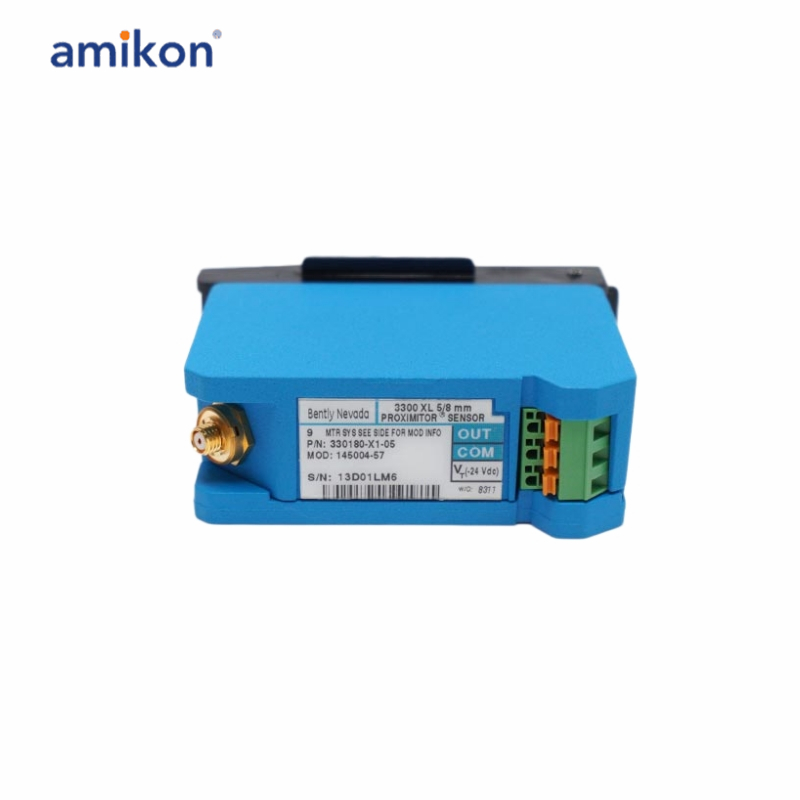

The 330180-X1-05 MOD 145004-10 is a highly specific configuration of the Bently Nevada 3300 XL 5/8mm Proximitor Sensor. It acts as a crucial component in industrial condition monitoring systems, interpreting electrical signals from proximity probes to measure shaft vibration and position.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APi)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently asked questions：

Q1: What is the Bently Nevada 330180-X1-05 MOD 145004-10 Proximitor Sensor used for?
A1: It is used for non-contact vibration and shaft position monitoring in rotating machinery protection systems.

Q2: What is the 330180-X1-05 MOD 145004-10 output resistance of the sensor?
A2: The 330180-X1-05 MOD 145004-10 output resistance is 50 Ω.

Q3: What is the 330180-X1-05 MOD 145004-10 recommended gap setting?
A3: The 330180-X1-05 MOD 145004-10 recommended gap setting is -9 Vdc.

Q4: What is the 330180-X1-05 MOD 145004-10 extension cable capacitance?
A4: The 330180-X1-05 MOD 145004-10 extension cable capacitance is 69.9 pF/m (21.3 pF/ft).

Q5: What field wiring sizes are supported?
A5: The 330180-X1-05 MOD 145004-10 sensor supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG).

Product Applications

Power Generation Plants
Oil & Gas / Petrochemical Refineries
Steel & Metallurgical Mills
Chemical & Fertilizer Plants

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
