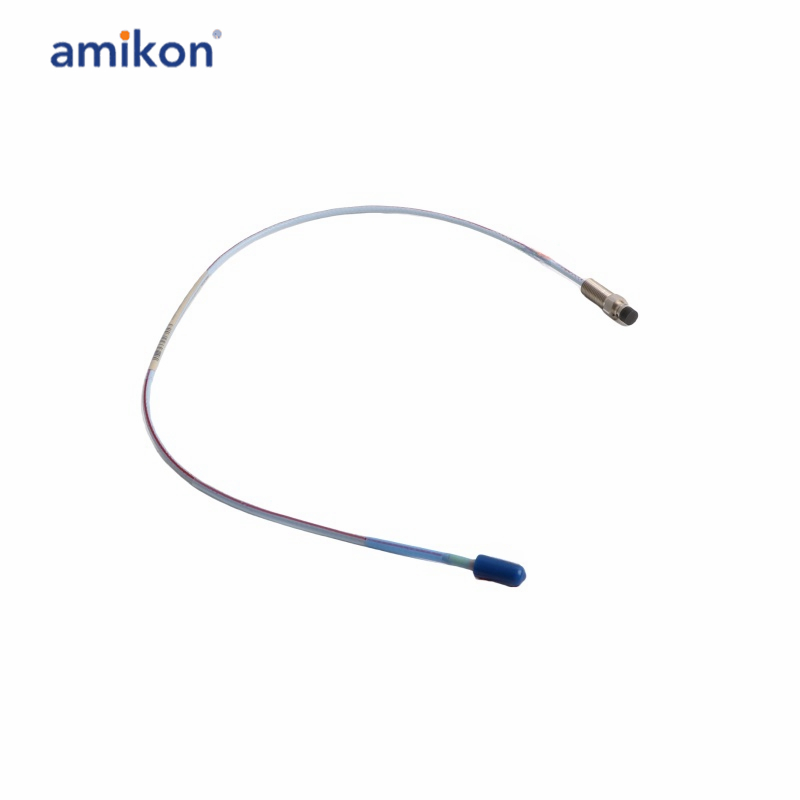

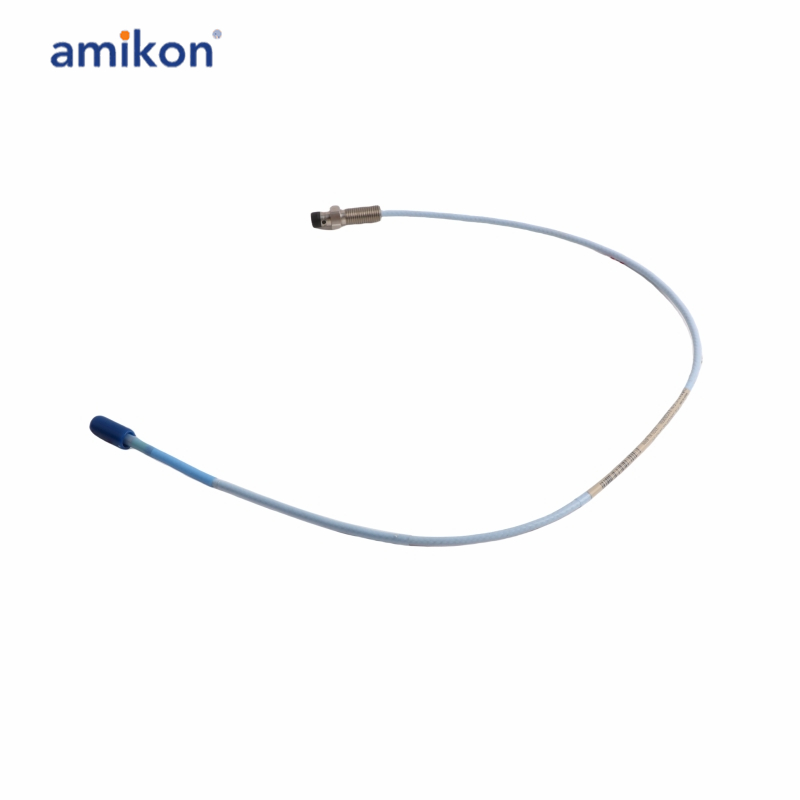

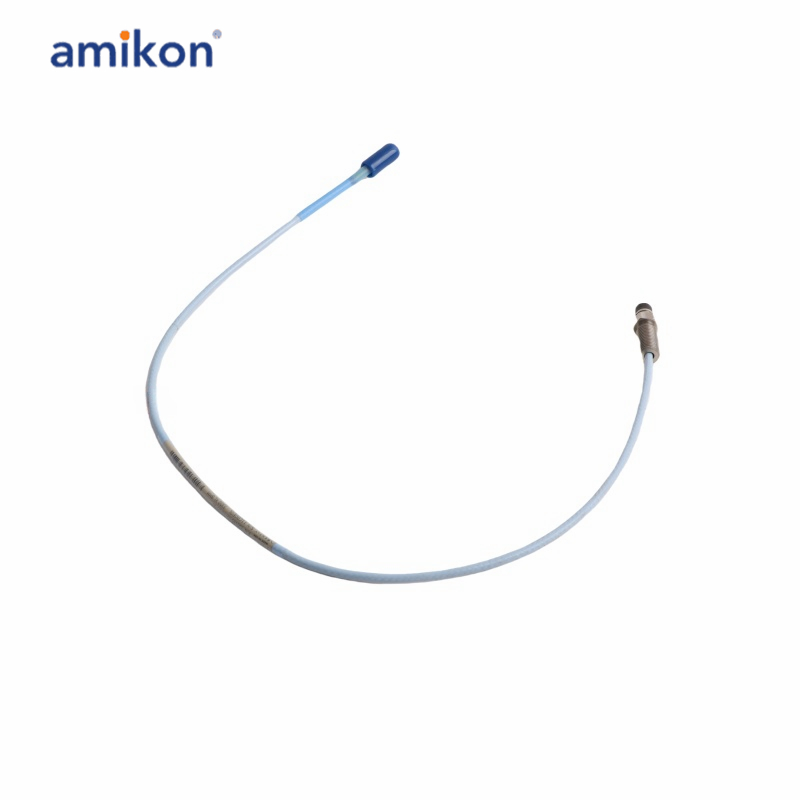

Bently Nevada 330195-02-12-05-05 Proximity Probes

Product Specifications

The system provides an output voltage directly proportional to the distance betweenthe probe tip and the observed conductive surface. It is capable of both static(position) and dynamic (vibration) measurements, and is primarily used for vibrationand position measurement applications on fluid-film bearing machines, as well asKeyphasor@ and speed measurement applications2.
The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (APl) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and temperaturestability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitore Sensor without the need for individual component matching orbench calibration.

Frequently asked questions：

Q1: What is the Bently Nevada 330195-02-12-05-05 Proximity Probe used for?
A1: The Bently Nevada 330195-02-12-05-05 Proximity Probe is used for non-contact measurement of shaft vibration, shaft position, and displacement in rotating machinery. It is commonly installed in machinery protection and condition monitoring systems.

Q2: What is the operating temperature range of the 330195-02-12-05-05 probe?
A2: The 330195-02-12-05-05 probe operates over a temperature range of -35°C to +200°C (-31°F to +392°F), making it suitable for high-temperature industrial applications.

Q3: What is the 330195-02-12-05-05 integral cable length?
A3: The 330195-02-12-05-05 probe includes an integral cable with a length of 0.5 meters (1.6 feet).

Q4: What is the output resistance of the 330195-02-12-05-05?
A4: The 330195-02-12-05-05 probe has an output resistance of 50 Ω, which helps ensure stable signal transmission and compatibility with associated monitoring systems.

Product Applications

Power Generation and Energy
Oil and Petrochemical
Metallurgy and Mining
Water Treatment and Paper Industry
