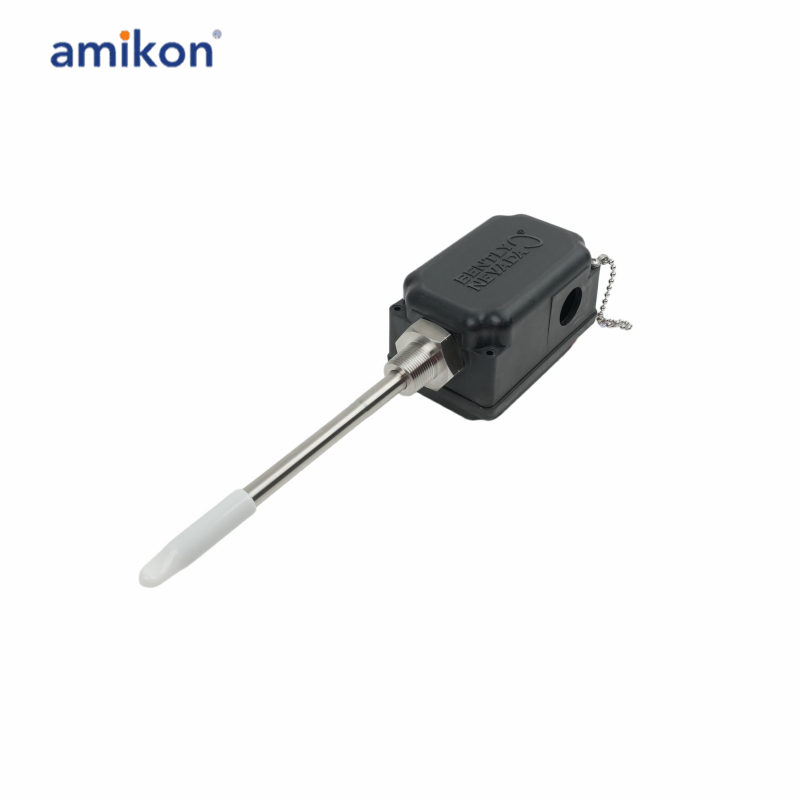

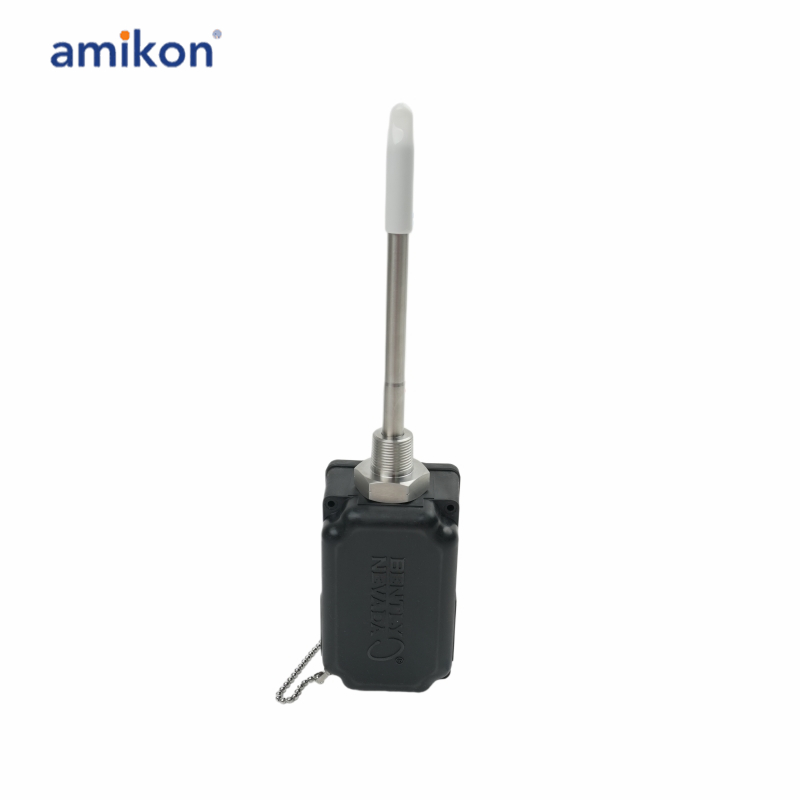

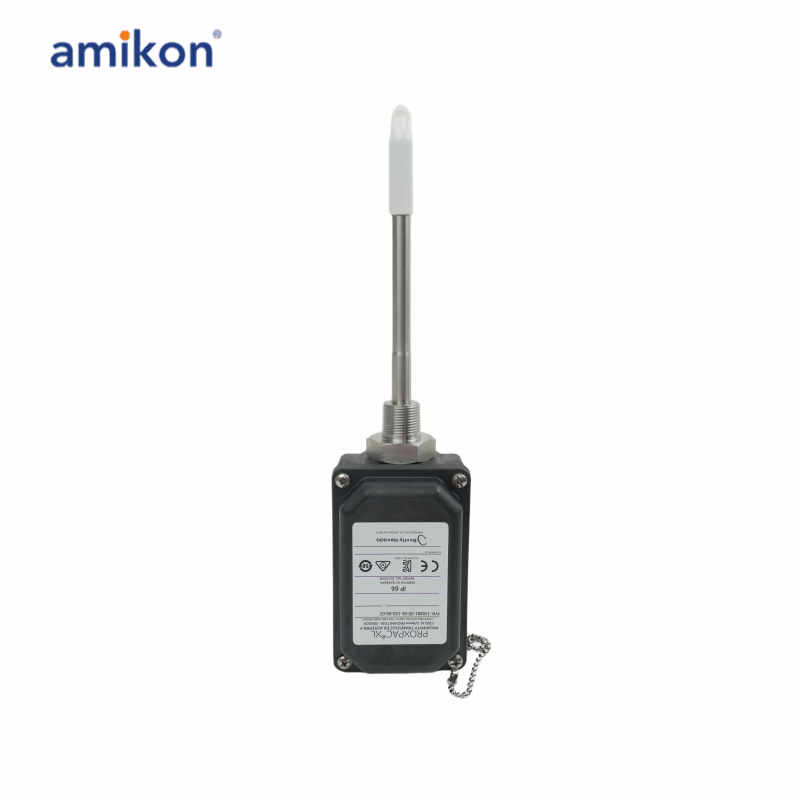

Bently Nevada 330801-28-00-115-03-02 PROXPAC XL Proximity Transducer

Product Specifications

The 330801-28-00-115-03-02 PROXPAC® XL Proximity Transducer Assembly, a metric series integrated proximity sensing solution manufactured by Bently Nevada (a Baker Hughes brand), is purpose-built to resolve the pain points of conventional split-type proximity monitoring systems that rely on standalone extension cables and external independent Proximitor® housings. Its revolutionary all-in-one structural design embeds a fully functional 3300 XL Proximitor® Sensor directly within the enclosure cover, completely removing the necessity for intermediate extension cables linking the 8 mm proximity probe and signal conditioning sensor, as well as eliminating separate external Proximitor mounting boxes.

The unit features a 00 standoff adapter configuration with no extended spacer sleeve, paired with a 115 mm metric probe penetration sleeve that delivers flexible ±12.7 mm (0.5 inch) axial gap adjustment via threaded sleeve engagement; when the combined length of standoff and penetration sleeve does not exceed 305 mm, no auxiliary support brackets are required to avoid resonance interference on measurement signals. It is equipped with D-option 03 conduit fittings, consisting of one 3/4-14 NPT port, one stainless steel reducer converting 3/4-14 NPT to 1/2-14 NPT, plus two blanking plugs for sealed cable routing, and utilizes E-option 02 standard 3/4-14 NPT outer mounting threads compatible with standard industrial mounting flanges and brackets.

Frequently asked questions：

Q1: What is the Bently Nevada 330801-28-00-115-03-02 PROXPAC XL Proximity Transducer?
A: The 330801-28-00-115-03-02 PROXPAC XL is a complete proximity transducer assembly that provides a convenient installation solution for shaft vibration and position monitoring applications.

Q2: What does the 330801-28-00-115-03-02 Probe Penetration code "115" mean?
A: The 330801-28-00-115-03-02 code 115 indicates an 11.5-inch probe penetration length, allowing the proximity probe to reach the target measurement surface through machine casings or protective housings.

Q3: What mounting thread does the 330801-28-00-115-03-02 use?
A: The 330801-28-00-115-03-02 assembly features a 3/4-14 NPT mounting thread, which is commonly used in industrial vibration monitoring installations and allows secure mounting to machinery housings.

Q4: Is the 3/4-14 NPT mounting thread compatible with standard industrial installations?
A: Yes. The 3/4-14 NPT thread is a widely accepted industrial standard, making it compatible with many existing machinery monitoring installations.

Product Applications

Oil & Gas
Power Generation
Petrochemical
Heavy Industry & Metallurgy
