Product Specifications

Manufacturer	Bently Nevada
Complete Model	330851-04-00-27-10-01-00
Case Type	Smooth 1.06 in diameter, side exit
Unthreaded Length	0.0 in
Overall Case Length	2.7 in
Total Length / Armor	1.0 m with SST armor
Agency Approval	No approvals
Linear Range	12.7 mm (500 mil)
Approximate Range	0.63 to 13.33 mm
Average Scale Factor	0.787 V/mm (20 mV/mil) nominal
Frequency Response	0 to 2.7 kHz (+0, -3 dB typical)

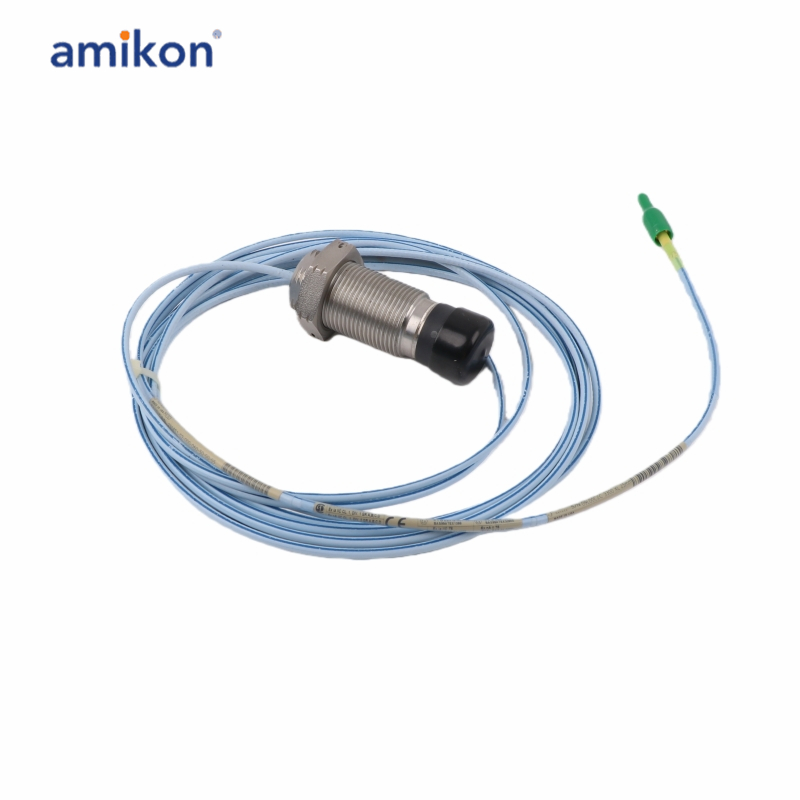

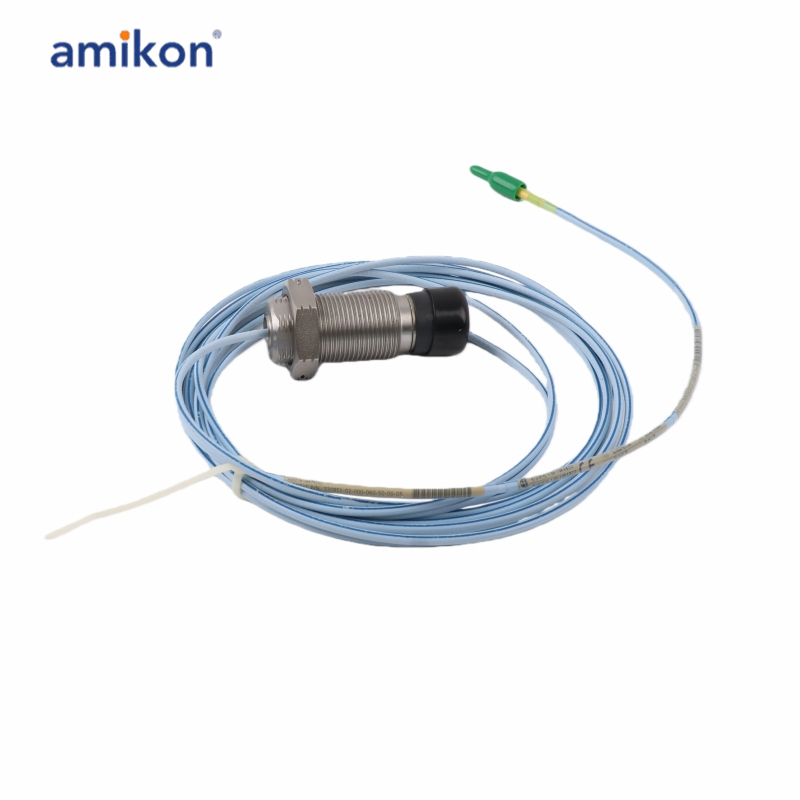

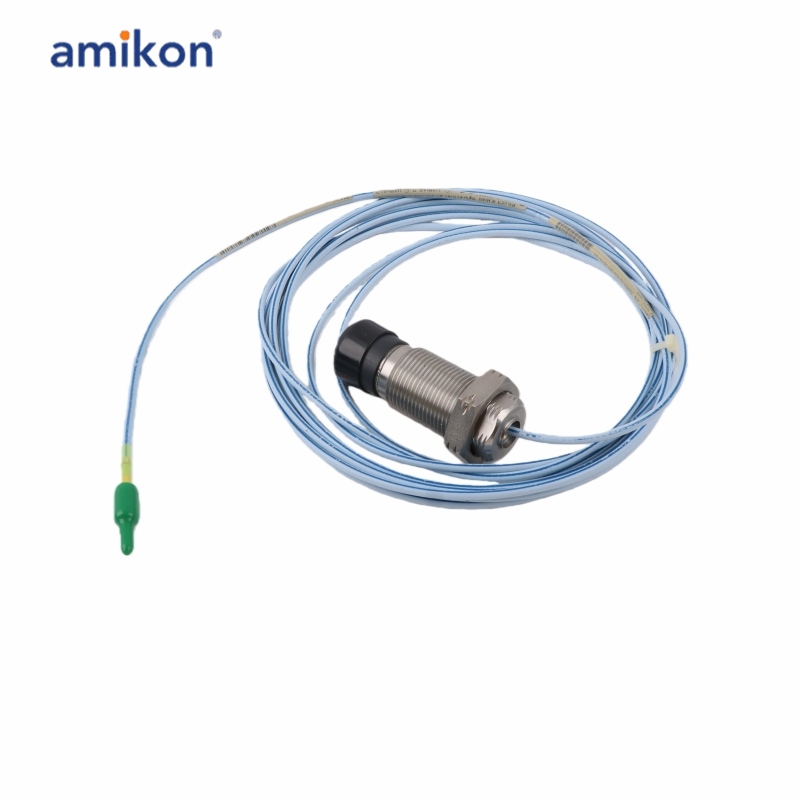

The Bently Nevada 330851-04-00-27-10-01-00 is a configured 3300 XL 25 mm proximity probe for turbine differential-expansion measurement. The official 25 mm system is designed for turbine supervisory instrumentation on medium and large steam turbine generators, where it measures the difference in thermal growth between the rotor and stator. Its nominal system linear range is 12.7 mm (500 mil), providing the extended measurement span required for this application.

The probe is one part of a complete 3300 XL 25 mm transducer system and must be used with the approved extension cable and matching 25 mm Proximitor Sensor. The full ordering code defines case style, mechanical lengths, integral cable and approval options; these details, the total electrical length, target material and mounting arrangement must all match the official configuration to retain the published system performance.

Frequently asked questions：

What case style is selected by option 04?
It is the smooth 1.06 in diameter case with a side-exit cable.

How are the case lengths configured?
The smooth case has 0.0 in unthreaded length and a 2.7 in overall case length.

Is cable armor included?
Yes. Armor option 01 selects stainless-steel armor on the 1.0 m probe.

What range is available for differential expansion?
The matched 25 mm system provides a 12.7 mm (500 mil) linear range.

Product Applications

Power industry
Petrochemical and natural gas industry
Steel and metallurgical plants
