Product Number: 330880-28-35-017-00-02
Power Requirement: –17.5 Vdc to –26 Vdc
Output Resistance: 50 Ω
Recommended Gap Setting: 1.27 mm (50 mils)
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%
Frequency Response: 0 to 10 kHz: +0, –3 dB
Standard 1 Metre System Accuracy: Less than ±0.025 mm (±1 mil)
Linear Range: 2 mm (80 mils)
Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target)
Minimum Clearance: 50.8 mm (2.0 in)
Housing Ratings: IP66 (verified by BASEEFA report T07/0709)
Probe Tip Material: Polyphenylene Sulfide (PPS)
Probe Case Material: AISI 304 Stainless Steel

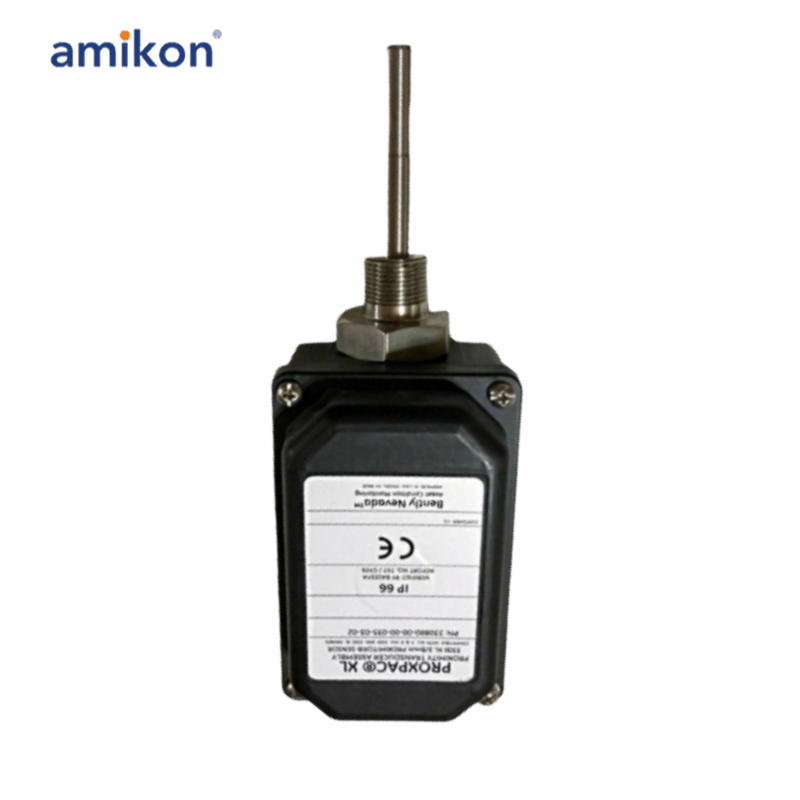

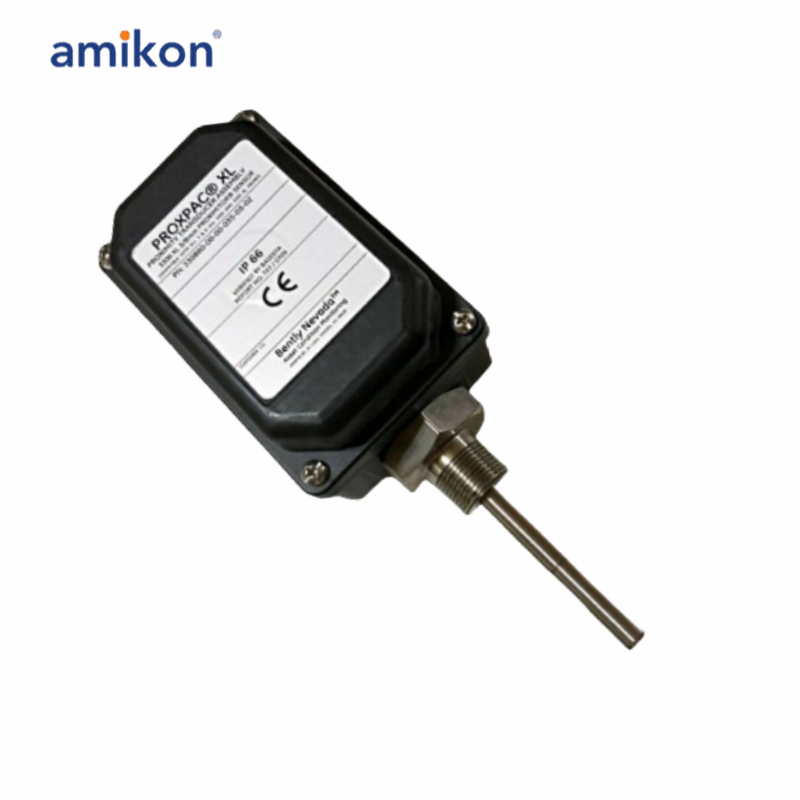

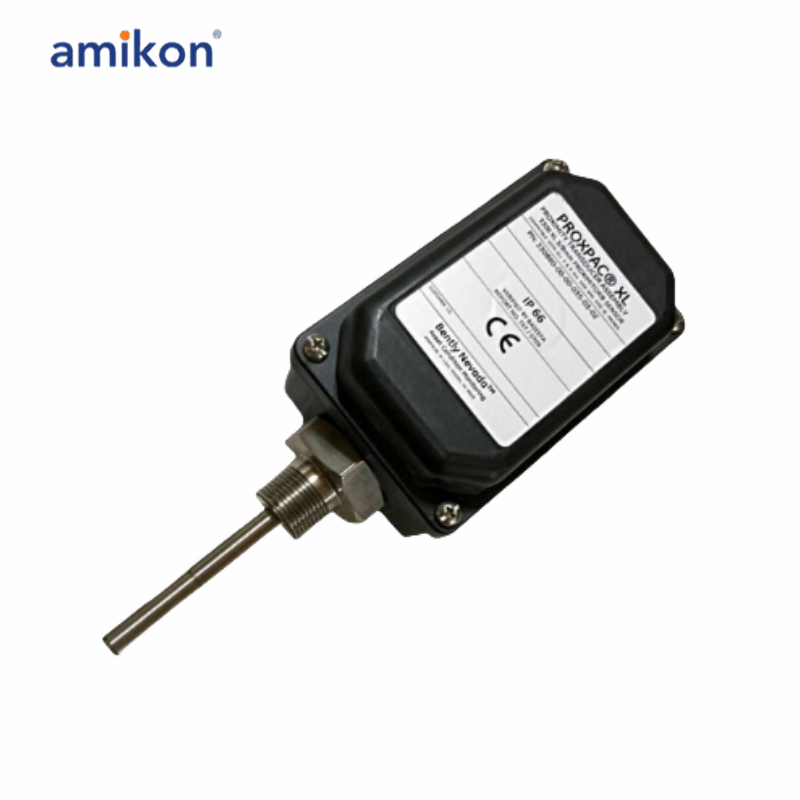

The design of the PROXPAC XL Proximity Transducer Assemblyis similar to our 31000/32000 Proximity Probe HousingAssemblies. The assembly offers the same advantages andfeatures as the 31000 and 32000 housings for accessing andexternally adjusting proximity probes. However, the housingcover of the PROXPAC XL Assembly also contains its own 3300XL Proximitor sensor. This design makes the PROXPAC XLAssembly a completely self-contained proximity probesystem, and eliminates the need for an extension cablebetween the probe and its associated Proximitor sensor. italso eliminates the need for a separate Proximitor housing, asthe field wiring connects directly between the monitors andPROXPAC XL Assemblies.
