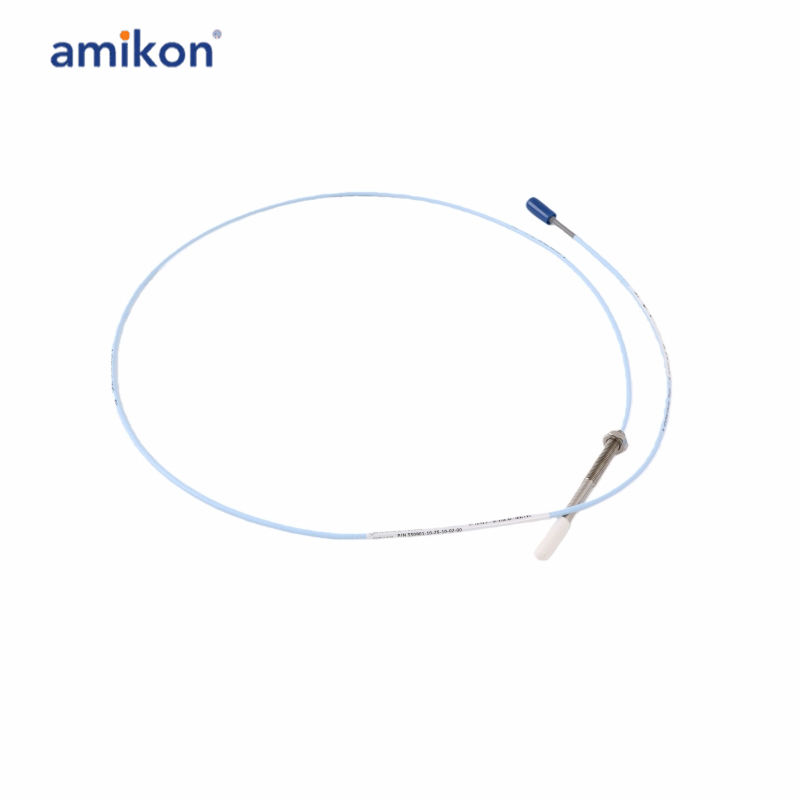

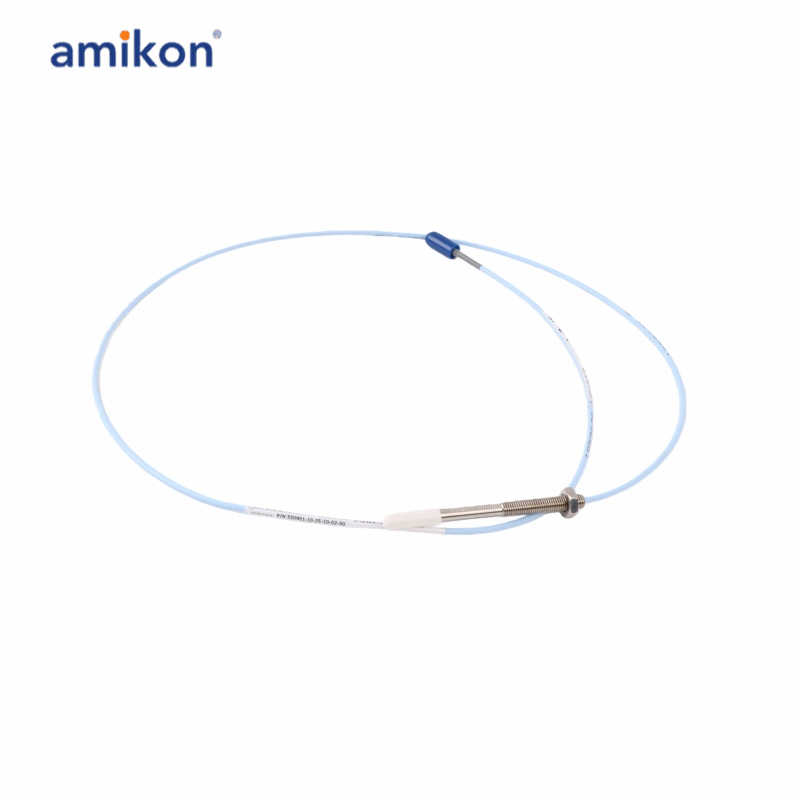

Bently Nevada 330901-00-12-70-01-05 Proximity Transducer

Product Number:330901-00-12-70-01-05
Extension Cable DC Resistance: 0.220 Ω/m (0.067 Ω/ft)
Output Resistance: 50 Ω
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft), typical
Recommended Gap Setting: 1.0 mm (40 mils)
Counterbore Minimum: 9.5 mm (0.375 in)
Proximitor Sensor Material: A380 aluminum
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel (SST)

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor(1)

Frequently Asked Questions

Q1: What is the main function of the Bently Nevada 330901-00-12-70-01-05 Proximity Transducer?
A1: It measures shaft displacement and vibration in rotating machinery, providing real-time monitoring for machinery protection systems.
Q2: What sensing technology does this transducer use?
A2: It uses eddy current technology to detect the distance between the probe tip and a conductive target without physical contact.
Q3: What is the 330901-00-12-70-01-05 typical operating temperature range?
A3: The 330901-00-12-70-01-05 transducer is designed to operate reliably under industrial conditions, typically –20°C to +120°C, depending on installation.
Q4: How is the Bently Nevada 330901-00-12-70-01-05 installed?
A4: It is mounted near the rotating shaft, with proper gap settings to ensure accurate measurement of vibration and shaft displacement.

Product Applications
Power Generation Plants
Oil & Gas Industry
Steel & Metallurgy Industry
Water Treatment & Heavy Industry

Part Number Breakdown
330901: Base model for a 3300 NSv Probe with 1/4-28 UNF threads and no armor.
00: Unthreaded Length of 0.0 inches.
12: Overall Case Length of 1.2 inches.
70: Total Length of 7.0 meters (approximately 23.0 feet).
01: Connector and Cable-Type Option, signifying a miniature coaxial ClickLoc connector with a connector protector and standard cable.
05: Agency Approval Option, indicating "Multiple Approvals" (typically ATEX, IECEx, and CSA for hazardous areas).
