Product Specifications

Manufacturer	Bently Nevada
Product No.	330907-05-30-10-02-05
Product Type	3300 NSv Reverse Mount Probe
Unthreaded Length ( 05)	50 mm
Overall Case Length ( 30)	300 mm
Total Length ( 10)	1.0 meter (39 in)
Connector Option ( 02)	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option ( 05)	Multiple Approvals
Signal-to-Noise Ratio	≥ 65 dB
Linearity Error	< 0.2 %
Insulation Resistance	> 100 MΩ at 500 V DC
Maximum Pressure Rating	500 bar
Shock Tolerance	50 g, 11 ms half-sine wave
Vibration Tolerance	10 g, 10–2000 Hz
Operating Temperature Range	–52 °C to +177 °C
Storage Temperature Range	–52 °C to +177 °C
Recommended Installation Torque	7.5 N·m

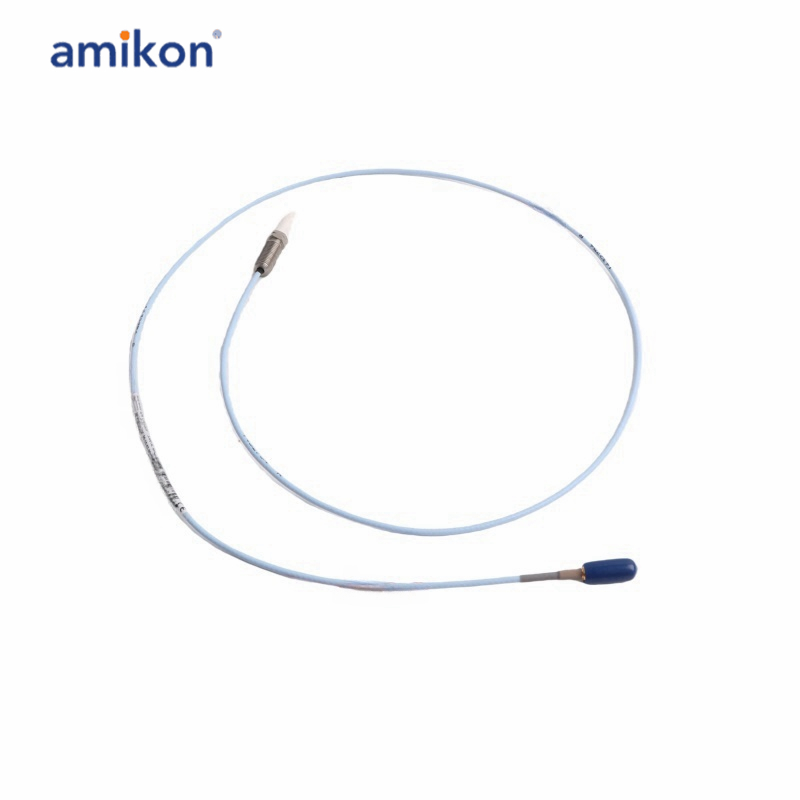

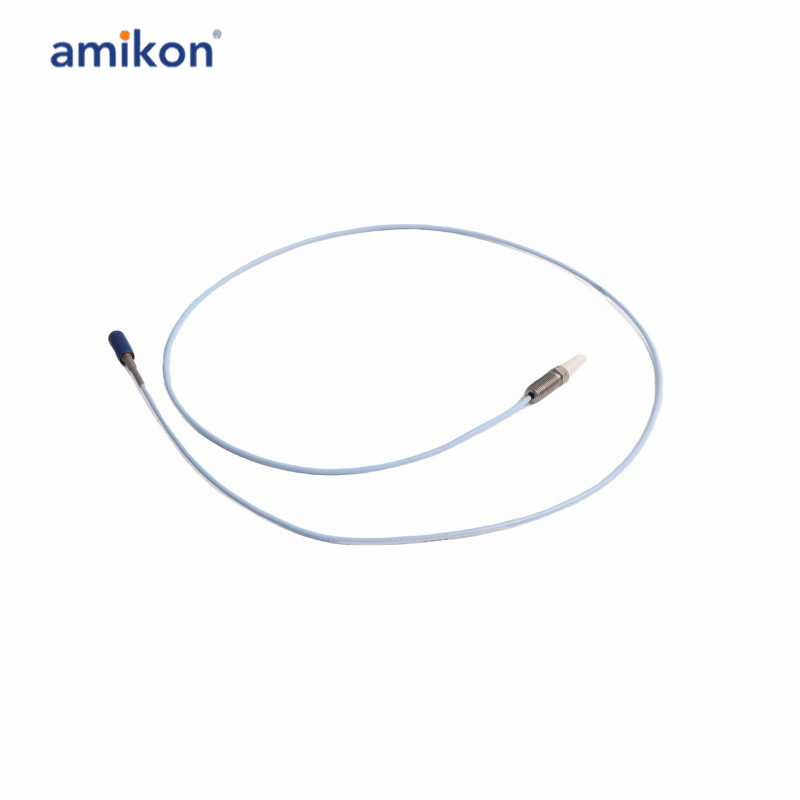

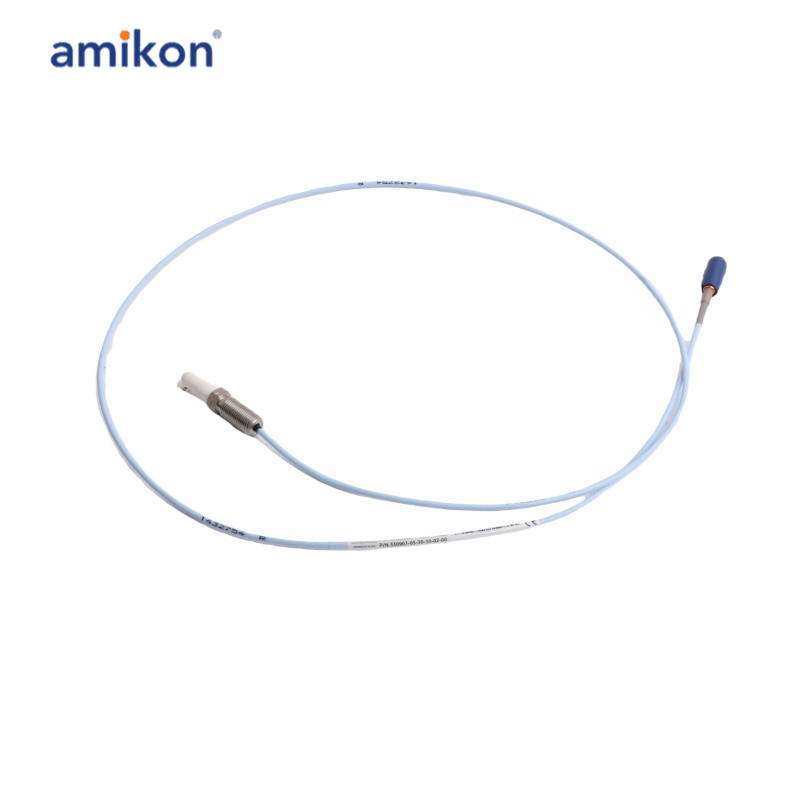

The Bently Nevada 330907-05-30-10-02-05 is a 3300 XL NSv Reverse Mount Proximity Probe used as part of the 3300 XL NSv Transducer System for non-contact vibration and position measurement on rotating machinery. The reverse mount configuration allows the probe to be installed from the rear side of the mounting surface, making it suitable for applications where standard front-mounted probes cannot be easily fitted due to limited installation space or mechanical restrictions.

The 3300 XL NSv Transducer System was developed as an alternative solution for compact machinery monitoring applications and can replace earlier 3300 RAM, 3000-series, and 7000-series 190 Transducer Systems. When upgrading from a 3300 RAM installation, existing probes, extension cables, and monitoring hardware may be retained when compatible with the 3300 XL NSv Proximitor® Sensor. Systems based on the 3000-series or 7000-series require replacement of the probe, extension cable, and Proximitor® Sensor with NSv components.

Frequently asked questions：

1. What is the Bently Nevada 330907-05-30-10-02-05?
The 330907-05-30-10-02-05 is a 3300 XL NSv Reverse Mount Proximity Probe used for non-contact shaft vibration and position monitoring in rotating machinery.

2. Which system does the 330907-05-30-10-02-05 belong to?
It belongs to the Bently Nevada 3300 XL NSv Transducer System, which includes the probe, extension cable, and NSv Proximitor® Sensor.

3. Why choose the 3300 XL NSv system?
The NSv system offers a compact solution for machinery where standard proximity probes may be too large or difficult to install.

4. What measurements can this probe perform?
The probe is used for measuring shaft vibration, radial movement, and shaft position through eddy current proximity measurement technology.

Product Applications

Petrochemicals
Power & Energy
Metallurgy & Heavy Industry
Power Generation & Utilities
