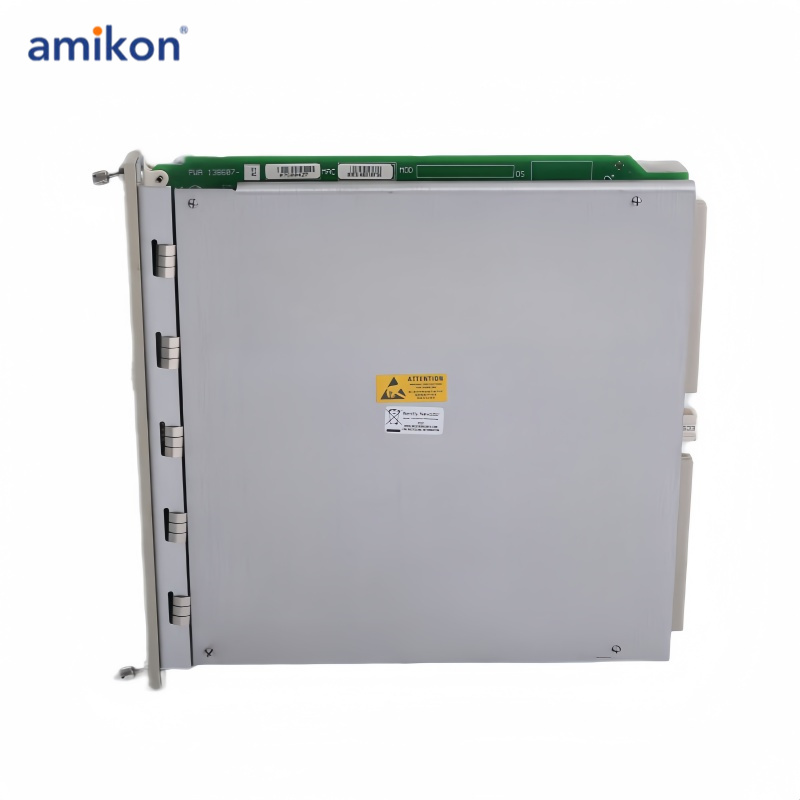

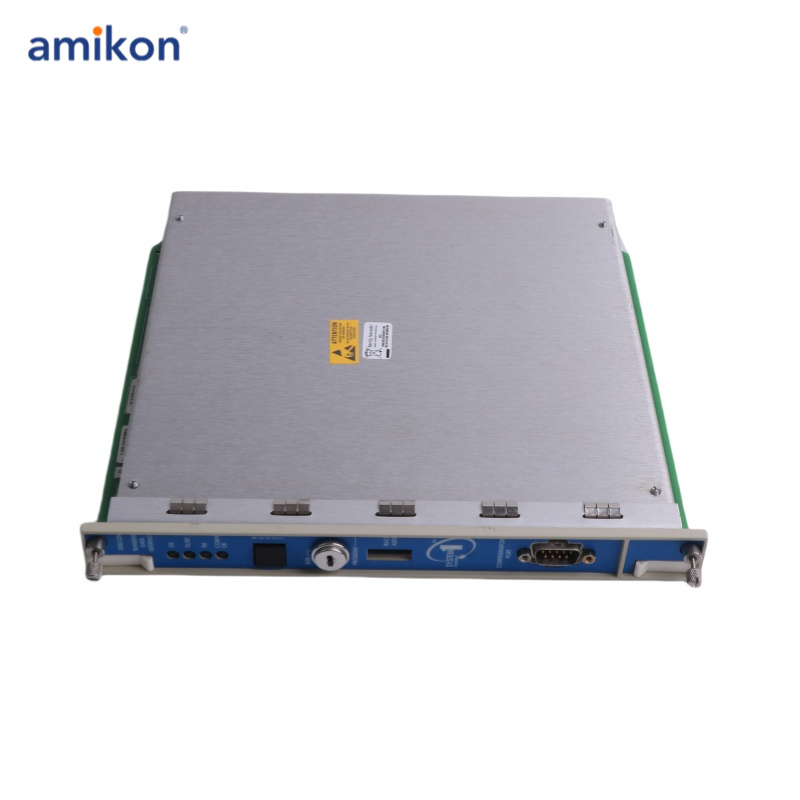

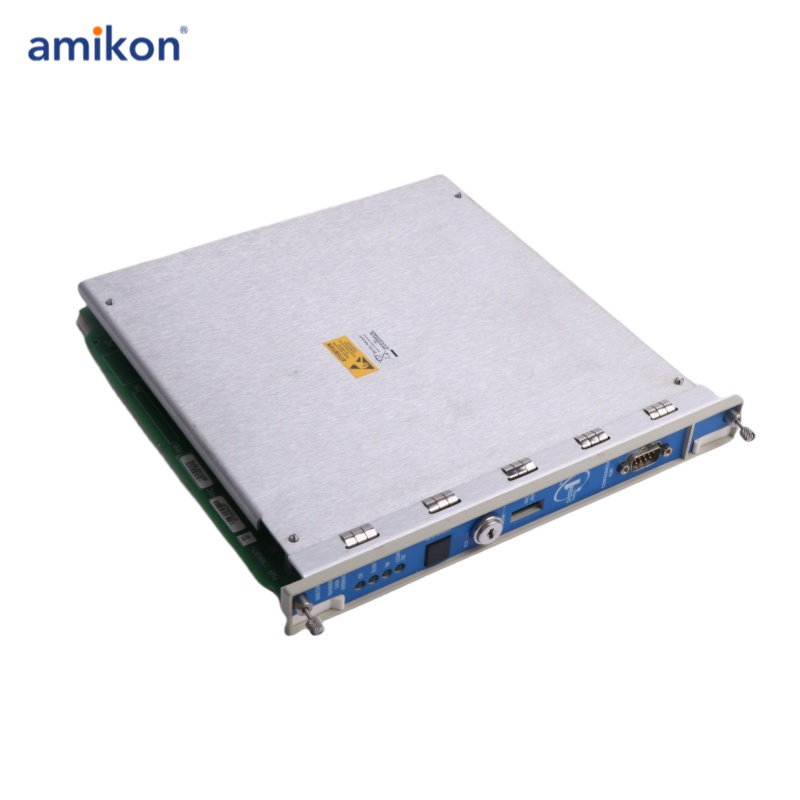

brand new Bently Nevada 3500/22M Transient Data Interface Module,Bently Nevada 3500/22M Transient Data Interface Module suppliers,Bently Nevada 3500/22M Transient Data Interface Module manufacturers,factories

Specification	Details
Part Number	3500/22M
Manufacturer	Bently Nevada
Series	3500
Input Signal	-10 Vdc to +10 Vdc
Power Consumption	7.7 watts
Shaft Power Supply	-24 Vdc
Product Type	Transient Data Interface Module
Temperature	25 degrees Celsius
Transducer Power Supply	-24 Vdc
Weight	0.85 lbs
Dimensions	9.50 x 4.50 x 1.00 inches
Availability	In Stock
Repair	3-7 Days
Country of Origin	United States

FUNCTIONAL DESCRIPTION:

3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.

FEATURES:

In a 3500 rack, the TDI is located in the slot next to the power supplies. In order to continually gather steady-state and transient dynamic (waveform) data and transmit this data through an Ethernet link to the host software, it interacts with M series monitors (3500/40M, 3500/42M, etc.).

The TDI comes with conventional static data-collecting capabilities. However, the TDI may also record dynamic, high-resolution transient data with the use of an optional Channel Enabling Disk.

The 3500 rack houses the TDI's communication processing function. Although the TDI performs some tasks that are shared by the entire rack, it is not a crucial component of the monitoring system and has no bearing on how well the system as a whole monitors the autonomous machinery protection.

The link between the 3500 monitoring system and compatible software is called the 3500/22M Transient Data Interface (TDI) (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the 3500/20 Rack Interface Module (RIMfunctionality ) with a communication processor, like TDXnet, to collect data.

In a 3500 rack, the TDI is located in the slot next to the power supplies. In order to continually gather steady state and transient dynamic (waveform) data and transmit this data through an Ethernet link to the host software, it interacts with M series monitors (3500/40M, 3500/42M, etc.). The TDI comes with conventional static data-collecting capabilities. However, the TDI may also record dynamic, high-resolution transient data with the use of an optional Channel Enabling Disk.

The 3500 rack houses the TDI's communication processing function. Although the TDI performs some tasks that are shared by the entire rack, it is not a crucial component of the monitoring system and has no bearing on how well the system as a whole monitors the autonomous machinery protection.
