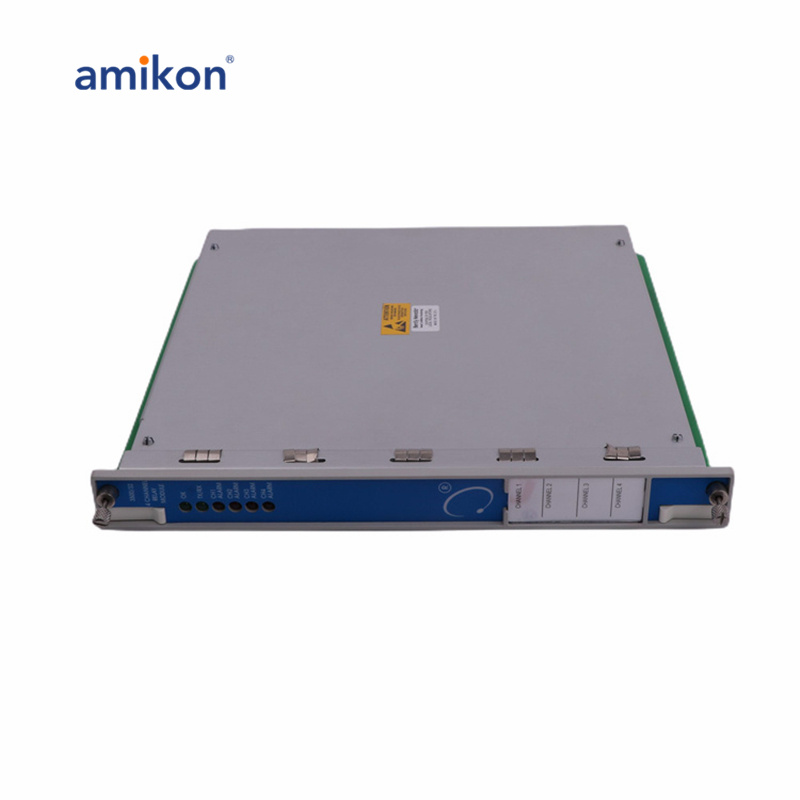

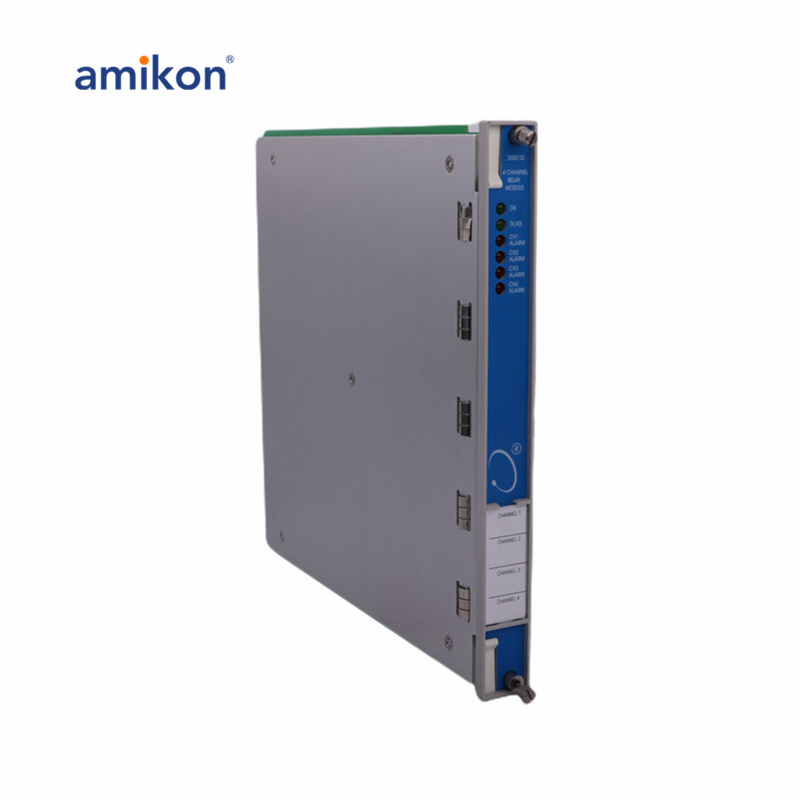

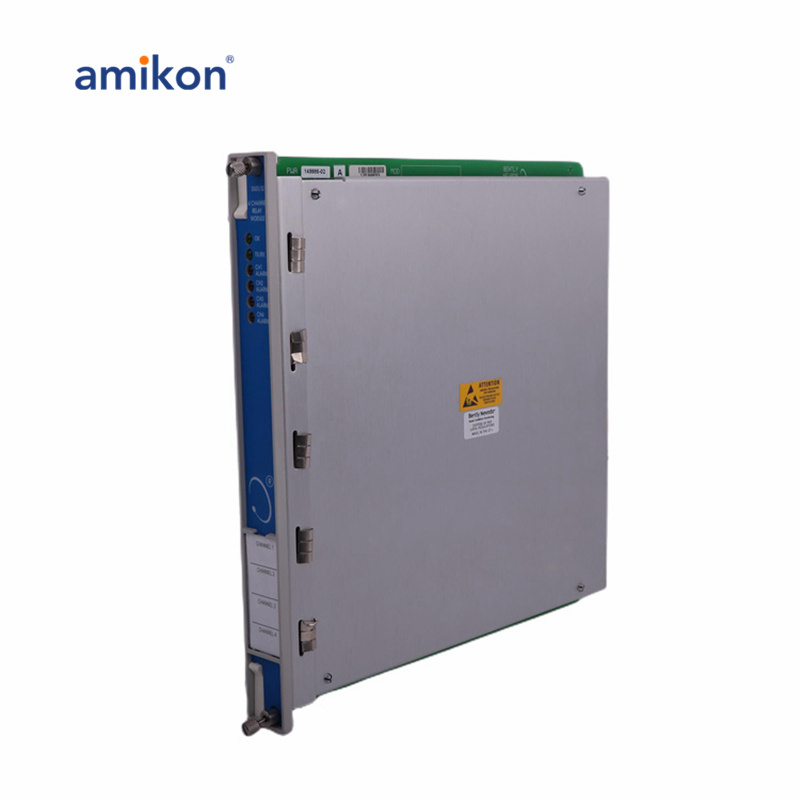

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module

SPECIFICATIONS
Part Number: 3500/32M 149986-02
Manufacturer: Bently Nevada
Series: 3500
Power Consumption: 5.8 watts
Relays type: SPDT
Environmental Sealing: Epoxy
Product type: 4-Channel Relay Module
Country of Manufacture: United States (USA)

3500/32M 149986-02 is a 4-channel relay module designed and developed by Bently Nevada. It is designed as a full-height module, its significance stems from its provision of four relay outputs, each of which contributes to the orchestration of complex operations. This module seamlessly integrates into the larger framework of the system, positioned adjacent to the Transient Data Interface Module, ready to contribute its capabilities to the collective operation. The system architecture allows for the placement of any number of these modules into available slots. This scalability ensures that the system can be tailored precisely to the requirements of the task at hand. By providing this flexibility, the module proves its worth across diverse applications and scenarios.

Product Attributes
-Central to the module's effectiveness is its individual programming capability. The module's relay outputs can be configured and operated independently, presenting an opportunity for the application of sophisticated voting logic. This enables users to design intricate decision-making processes based on the combined inputs from multiple sources. This aspect becomes particularly valuable when making critical determinations that require the collective insight of various data points.

-Moreover, the inclusion of Alarm Drive Logic within each relay adds a layer of intelligence to the module's operations. By utilizing AND and OR logic, users can create intricate cause-and-effect relationships that drive responses based on specific conditions. This provides the ability to respond promptly and effectively to critical events or scenarios.

-The programming of the Alarm Drive Logic draws from a rich palette of inputs. Alarming inputs such as Alert and Danger statuses, along with Not-OK indications, create a robust foundation for decision-making. However, the module's capabilities extend even further by allowing the incorporation of individual PPLs (Process Parameter Limits) from any monitor channel or a combination of channels within the rack. This breadth of options offers immense flexibility when tailoring the module's operations to suit the unique characteristics of different systems.

-The customization and configuration of the Alarm Drive Logic are facilitated through the use of the 3500 Rack Configuration Software. This software serves as the tool for translating application requirements into actionable programming that orchestrates the behavior of the 4-Channel Relay Module. It empowers users to optimize the module's contributions to the system's overall performance.
